Draper IRUS Rear Video Projection Screen |
Draper Screens >
Rear Projection
|
|
|
|
Select a Material, Format and Screen Size below
|
|
|
Click for Larger Image
Screen Size Chart
Motorized Screen Controls
Click here for information on Draper Screen Material |
|
|
|
|

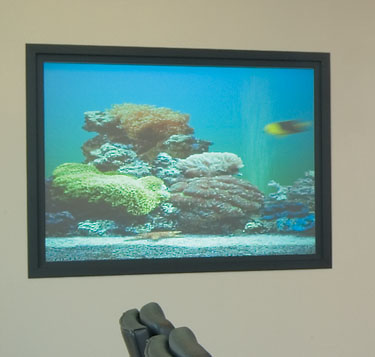

Overview - Draper IRUS Rear Video Projection Screen The IRUS—Infinite Resolution Uniformity Screen—is specifically designed to provide maximum legibility with any projector. Superior resolution, uniform center–to–corner brightness, superior color reproduction, excellent contrast. Unique anti-glare finish on 1/4 inch acrylic substrate, with 1.0 gain and 180° viewing cone. Sizes up through 120" NTSC video diagonal, ideal for SXGA or UXGA displays. Ready for the next generation of higher resolution projectors. |
|
Features - Draper IRUS Rear Projection Screen
Developed specifically for today's high resolution single lens projectors.
Superior resolution with SXGA (1280 x 1024), UXGA (1600 x 1200) and higher projectors, with no possibility of dual imaging, ghosting or moire patterns.
Unbeatable uniformity of the projected image from top to bottom and from center to corner.
Excellent color contrast properties and ability to deal with uncontrolled ambient light.
Superior vertical and horizontal viewing cone.
Unlike Fresnel/lenticular screens, the IRUS does not have a fixed focal length, so there are no focal length incompatibility issues.
Gain 1.0
Gain Chart.
180° viewing cone.
1/4" thick acrylic substrate.
Single element rear projection screen
Sizes through 120" diagonal.
Can be used in our Retro/QA (portable rear projection systems), MultiScreen System, RPX/Complete or any of our VideoWalls in conjunction with our Projector Support Structure.
Factory installed Cineframes are also available to simplify installation.
Warranted for one year against defects in materials and workmanship.System 400 Frame
Simplifies your installation.
Cut a rough opening 1/4" larger than the overall frame size, slide the screen in and bolt into place.
No finish carpentry required.
Has a 1-3/4" wide dress trim that hides the opening.
The audience only sees an attractive frame around a rear screen.
Reduces clear viewing area by 1" in each dimension.
Black finish.
Suitable for 3/8" Cineplex in sizes through in 9' x 12", 1/4" Cineplex in all sizes, IRUS High Contrast Black and Vortex in all sizes, DiamondScreen in sizes through 160" diagonal , and 1/4" and 3/8" Cineglass in sizes through 91" x 121"
System 200 Frame
Same sturdy design as the System 300, but extruded to a slightly thinner wall thickness.
Suitable for IRUS and Vortex in all sizes; 1/4" and 3/8" Cineplex in all sizes; 1/4" and 3/8" Cineglass in sizes through 8' x 10'; DiamondScreen through 160" diagonal.
System 100 Frame
Simple, clean frame for smaller rear screens.
Adds 1-3/4" to overall height and width of screen; reduces viewing area by 7/8" in each dimension.
Suitable for 1/4" Cineglass through 4' x 5'; DiamondScreen, 1/4" Cineplex, IRUS and Vortex through 100" diagonal and High Contrast Black in all sizes.
|
|
