A 0.5 mm Fresnel lens gathers the light from the
projector and directs it at a right angle through the screen. As the light
exits the screen on the audience side, a diffusion medium redistributes
the light evenly in all directions—up, down, left, right and center.
Superior resolution and color contrast.
An exceptionally wide viewing cone in both the
horizontal and vertical axes.
The unique features of the Vortex provide important
advantages and benefits.
The Vortex is designed to be used with single lens projectors.
Projected light is collimated, then diffused evenly, making the Vortex
well suited for use in videowalls and rooms with tiered seating patterns.
Charcoal grey tint provides superior color contrast, even under harsh
The diffusion medium is in the acrylic, so it can’t be scratched or
The Vortex is available in sizes up to and including 160" diagonal.
Can be used in our Retro/QA (portable rear projection systems),
MultiScreen System, RPX/Complete or any of our VideoWalls in conjunction
with our Projector Support Structure.
Factory installed Cineframes are also available to simplify
Warranted for one year against defects in materials and workmanship.
System 400 Frame
Simplifies your installation.
Cut a rough opening 1/4" larger than the overall frame size, slide the screen in and bolt into place.
No finish carpentry required.
Has a 1-3/4" wide dress trim that hides the opening.
The audience only sees an attractive frame around a rear screen.
Reduces clear viewing area by 1" in each dimension.
Suitable for 3/8" Cineplex in sizes through in 9' x 12", 1/4" Cineplex in all sizes, IRUS High Contrast Black and Vortex in all sizes, DiamondScreen in sizes through 160" diagonal , and 1/4" and 3/8" Cineglass in sizes through 91" x 121"
System 200 Frame
Same sturdy design as the System 300, but extruded to a slightly thinner wall thickness.
Suitable for IRUS and Vortex in all sizes; 1/4" and 3/8" Cineplex in all sizes; 1/4" and 3/8" Cineglass in sizes through 8' x 10'; DiamondScreen through 160" diagonal.
System 100 Frame
Simple, clean frame for smaller rear screens.
Adds 1-3/4" to overall height and width of screen; reduces viewing area by 7/8" in each dimension.
Suitable for 1/4" Cineglass through 4' x 5'; DiamondScreen, 1/4" Cineplex, IRUS and Vortex through 100" diagonal and High Contrast Black in all sizes.

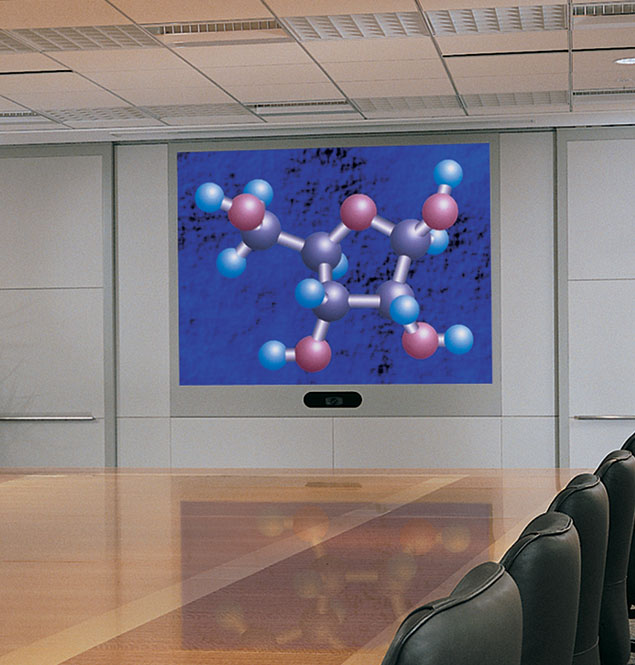

SUMMARY - Draper Vortex Rear Video Projector Screen
The Vortex is a marriage of the best features of two rear screen technologies— optical and diffusion. A 0.5 mm Fresnel lens gathers the light from the projector and directs it at a right angle through the screen. As the light exits the screen on the audience side, a diffusion medium redistributes the light evenly in all directions—up, down, left, right and center. It features superior resolution, superb color contrast, an exceptionally wide viewing cone in both the horizontal and vertical axes, extraordinary center-to-corner brightness ratio, and uniform brightness without hot spots. It is designed for use with single lens projectors and the charcoal grey tint provides superior color contrast even under harsh ambient light. Gain 2.0
