Power Conditioner for Home Theater
OVERVIEW - Furman Rvc7w In-Wall Power
Isolated Symmetrically Balanced Power ensures no ground contamination from
your incoming line will affect your filtered AC power, as it is totally
isolated. This total isolation of both ground and incoming AC power means
your critical video reproduction will not suffer AC hum bars, RF, or EMI
contamination from shared AC ground lines. These distortions are commonplace
when AC power is shared throughout a building or home. They can cause hum
bars and at a minimum, significant loss of clarity in video images by
significantly increasing the noise floor.
Symmetrically Balanced Power, the incoming AC signal is transformed into two
legs of half voltage, each with opposite polarity (i.e. 120 VAC Line and 0
VAC Neutral is transformed into 60 VAC Line, 60 VAC Neutral reference to
output Ground at 0 VAC). With these Balanced lines in opposing polarity
and equal potential, virtually all common-mode noise is cancelled.
Additionally, the RVC-7Ws exclusive Narrow Bandwidth Technology
dramatically cancels transverse AC line noise as well. This ensures a supply
of virtually noise-free AC power while preventing noise and magnetic fields
from penetrating or radiating from the AC cords that power your critical
video components. Additionally, the RVC-7Ws GFCI (ground fault) circuit, in
tandem with our isolated symmetrical power technology, and virtually
maintenance free TVSS circuitry, assure electrical safety.

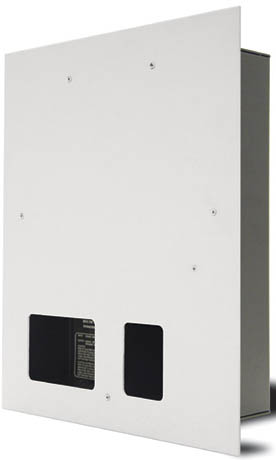

RVC-7W has been specifically constructed for in-wall installation. At just
under 3.5 deep, and an inner chassis that is 14.5 high and 12 wide, it
will discretely rest behind virtually all Plasma and LCD Video screens and
their accompanying wall brackets. A generous cutout is provided in the front
panel for up to (2) outgoing AC cords, and an isolated area for neatly
dressing signal wiring. The conduit hole for incoming signal wiring is large
enough to accommodate all the cables required by a scaler, as well as
standard component inputs. Additionally, incoming AC wiring is separated by
another conduit clamp and separated by a steel ante-chamber. The GFI duplex
AC outlet is located next to a translucent blue output indicator, assuring
that the installation is complete, and output AC power is present.
RVC-7W comes with (2) mounting brackets, wall cut-out template, and all the
hardware necessary to install between two wall studs *. The white front
cover will accept any interior latex paint, for installations where an
interior designer has specified refinishing all in-wall panels. Installation
is simple, and the RVC-7Ws circuit breaker, GFI outlet, and C-ETL listing
assure safe, trouble free operation.
1 and Ύ conduit
clamps are not included
FURMAN RVC7W Professional In Wall Surge Protector
Symmetrically Balanced - Narrow Bandwidth Technology dramatically reduces
common mode and transverse AC line noise, typically in excess of 40dB at
virtually all video frequencies up to 1 GHz.
transient voltage surge suppression protects your valuable equipment,
while virtually eliminating costly service calls.
Handles 7 Amps
continuous power. This far exceeds the current demands of the largest
Plasma, LCD, and Home Theater projectors, while the isolated output
eliminates potential AC hum bars.
allows easy installation, hidden behind flat screen brackets or in utility
spaces. The white painted cover easily accepts any house paint chosen by
Full product safety
listing for the U.S.A. and Canada (C-ETL).
constructed toroidal transformer is the finest available, yielding
extremely low magnetic field leakage, and D.C. tolerant, noise-free
operation regardless of load or AC source contamination.
(balanced) AC receptacles are individually ground fault (GFCI) protected
to ensure safe operation.
SPECIFICATIONS - furman rvc7w home theater
reference power conditioner
VAC 7 Amps minimum capacity (hard wired)
VAC 7 Amps or 840 Watts maximum current draw
(Isolated Symmetrical Balanced A.C. outlets)
circuit protection for all AC outlets
Transient Voltage Surge Suppression:
Stand-off Voltage 200V
Maximum Clamping Voltage 324V
10/1000 65,000 Watts @ 20uS. Test = 300,000 Watts Peak Power Handling
Transverse and Common Mode Greater than 60dB. 1 MHz. 1 GHz.
windings separated by Faraday shield
14.5 H x 12 W x
H x 14 W x .078 D
9.5H x 3.75 W x
3.45 (from outside front panel) 3.375 from out side wall surface
