NEC PlasmaSync PX-42VP5HA 42 inch EDTV Plasma TV Monitor for Public Display
No Longer Available
Back to NEC Plasma Main

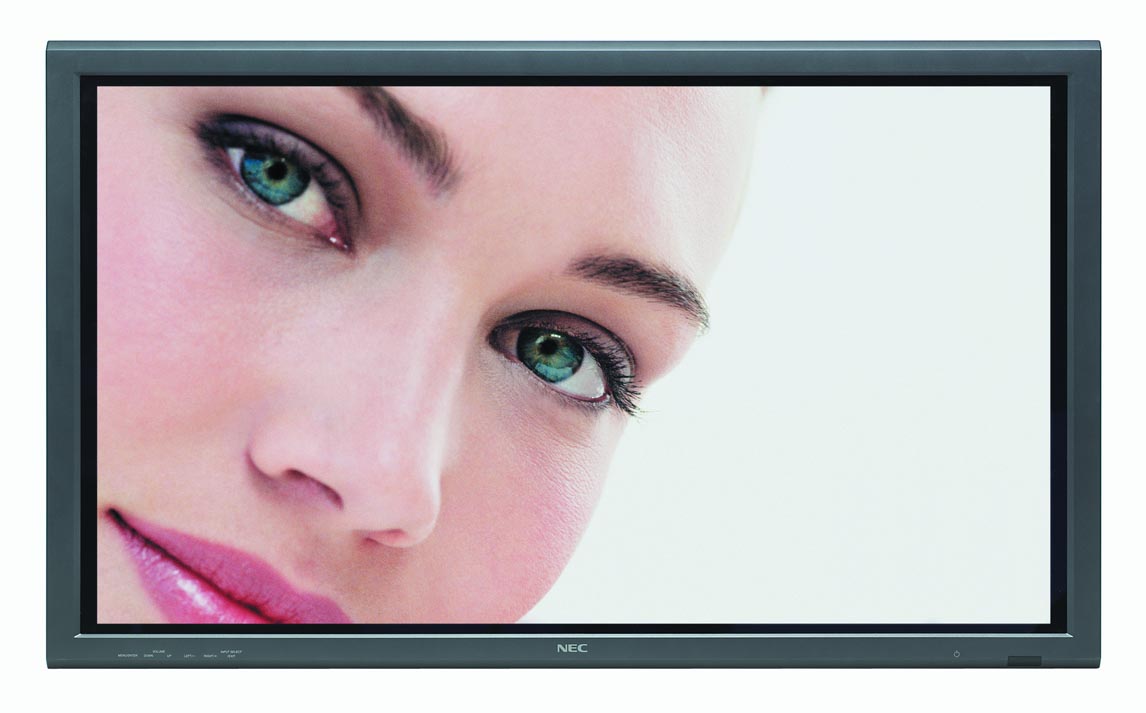

Click For Larger Image
(Shown with Optional Table
Stand)
|
|
|
NEC PlasmaSync
42VP5 42 inch EDTV Plasma TV Monitor for Public Display |
|
**This unit is designed specifically for public display applications
requiring bright, large-scale displays that are easy to read, such
as in-store displays and digital signage. If you are looking for a
Home Theater unit, we recommend The NEC 42VM5** |
OVERVIEW - Nec
Px-42vp5ha 42 inch Edtv Plasma Tv:
The inspirational image reproduction of
the NEC 42VP5 plasma tv display turns your vision into reality.
Patented technologies like Capsulated Color Filter, Accucrimson and
Advanced AccuBlend provide consistently superior image quality and
flawless color balance. Plenty of standard features and controls
improve upon perfection and make this plasma tv adaptable for any
commercial application. A long lasting lifespan up to 60,000 hours
(eight hours/day for 20 years) and the fact that PAC Media ranked
NEC one of the leaders in product quality/reliability ensure a
superb return on your investment. |
FEATURES - Nec
PlasmaSync 42vp5 Plasma TV Public Display:
- Native Resolution: Wide VGA (853 X 480), Anti-glare filter
-
Brightness: No Data Available
- Contrast Ratio: No Data Available
- DVI-D HDCP
connection
- Up to 5x5 matrix capability
- Portrait capability
- Long lasting up to 60,000 hour half life
- Best in class image quality and accurate image reproduction
- Unsurpassed product reliability and service
- Exceptional contrast and brightness no matter what the viewing
environment
- Flexible features for any Professional application
- Exceptionally quiet operation
|
SPECIFICATIONS - NEC PLASMASYNC 42VP5 PLASMA SCREEN FOR
PUBLIC DISPLAY:
|
Model Number |
PX-42VP5HA |
|
Diagonal Screen Size |
42" |
|
Screen Aspect Ratio |
16 to 9 |
|
Active Screen Area |
36.3" x 20.4", 921 mm x 518 mm |
|
Native Pixel Resolution |
853 horizontal dots x 480 vertical rows |
|
Brightness |
No Data
Available |
|
Contrast Ratio |
No Data
Available |
|
Pixel Pitch |
1.08 mm square |
|
Front Filter Type |
AG - Anti-glare |
|
Color Processing |
68.7 billion colors (4096 steps) |
|
Horizontal Frequency Range |
15.5 to 110.0 kHz auto, step scan |
|
Vertical Frequency Range |
50 to120 Hz auto, step scan |
|
PC Signal Compatibility |
VGA: 640x480 @ 60,72,75,85,100, 120 Hz
SVGA: 800x600 @ 56, 60, 72,75,85,100,120 Hz
XGA: 1024x768 @ 60,70,75, 85, 100 Hz
SXGA: 1280x1024 @ 60, 75, 85, 100 Hz
UXGA: 1600x1200 @ 60, 65, 70, 75, 85 Hz
WideVGA: 848x480, 852 x 480 @ 60 Hz
WideXGA: 1360 x 765 @60 Hz |
|
Macintosh Compatibility |
640x480, 832x624, 1024x768, 1152x870 |
|
Video Signal Compatibility |
PAL, SECAM, 3.58/4.43 NTSC |
|
HD Video Signal Compatibility |
480p 480i, 525p, 525i, 540p, 625p, 625i, 720p, 1035i, 1080i |
|
Input Terminals |
RGB 1 (analog): 15-pin mini D-sub (common use with RGB out,
selectable)
RGB 2 (analog): 5 BNC (RGB/HV) (common use with 5BNC Y/Pb/Pr
input, selectable)
RGB 3 (digital): 24-pin DVI-D HDCP (EIA/CEA-861-A) compatible
Video 1: Composite BNC x 1 (common use with video out,
selectable)
Video 2: Composite RCA x 1
Video 3: S-Video 4-Pin DIN
HD Video 1: 1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr)
HD Video 2: 1 set BNC Component (Y,Pb,Pr/Y,Cb,Cr)
(common use with 5BNC Y/Pb/Pr input,
selectable)
Audio: 3 sets RCA stereo + external speaker jacks |
|
Output Terminals |
RGB (analog): 15 PIN mini D-sub (common use with RGB1,
selectable)
Video: Composite BNC (common use with Video1, selectable) |
|
Audio |
Internal amplifier, 8W x 2 output power |
|
User Controls |
Direct Access: Power on/off, input selection, volume up/down,
OSM access, (Control Lock Switch located on input panel)
Remote Control: Power on/off, input select, volume, mute,
wide, display, off-timer, OSM control, cursor, pointer, zoom,
auto, select
OSM: Picture - Contrast, brightness, sharpness, color, tint,
color temperature, white balance, picture mode, noise
reduction, gamma, low tone and color tune Audio - bass,
treble, balance and audio input
Image Adjust - aspect ratio mode, vertical position,
horizontal position,
vertical height, horizontal width, fine picture, picture
adjust, auto picture |
|
DVI Setup |
Option 1: OSM on/off, BNC Input, D-sub Input, RGB select, HD
select, Input Skip, All Reset
Option 2: Pwr. Management, Cinema Mode, Long Life Mode, Gray
Level, Closed Captioning
Option 3: Timer, Pwr. On mode, Control Lock, IR Remote, Loop
Out, ID Number Video Wall Advanced OSM, Language, Color
System, Source Information |
|
Plug and Play |
DDC1, DDC2B (RGB3 is DDC2B only) |
|
Standby Power |
0.80W |
|
Dimensions (WxHxD)
w/o base |
40.1" x 24.0" x 3.5", 1018 mm x 610 mm x 89 mm |
|
Weight without tabletop stand |
63.0 lbs., 28.5 kg |
|
Environmental Considerations |
Operating Temperature: 32 - 104 degrees F (0 - 40 degrees C)
Operating Humidity: 20 - 80%
Operating Altitude: 0 - 9180 feet (0 - 2800m)
Storage Temperature: 14 - 122 degrees F (-10 - 50 degrees C)
Storage Humidity: 10 - 90%
Storage Altitude: 0 to 9840 feet (0 - 3000m) |
|
Regulatory |
FCC Class A, UL1950, CSA950 |
|
Included Accessories |
AC Power Cord, User Manual, Remote Control, Batteries, Cable
Clamps |
|
Screen Aspect Ratio |
16 to 9 |
|
Viewing Angle |
160 degrees |
|
External Controls |
9-pin mini D-Sub, RS232 |
|
Power Requirements |
120V 50/60 Hz |
|
Power Consumption |
270W Typical, 4.5A max |
|
Warranty |
1 Year Parts & Labor Standard |
|
Video Signal Compatibility |
PAL, SECAM, 3.58/4.43 NTSC |
|
|
Manufacturer
Homepage:
www.necvisualsystems.com |
| |
|
