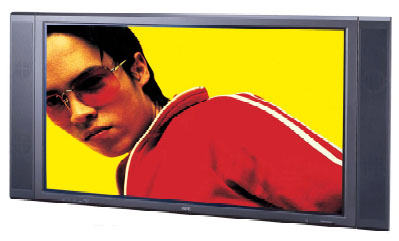

Click For Larger Image
(shown with optional speakers) |
|
|
NEC PlasmaSync
42VP4 42 inch Plasma Flat Panel TV Monitor |
|
OVERVIEW - Nec
PlasmaSync 42vp4 Flat Panel Plasma TV Display:
Get their attention and hold it
with NEC's new 42 inch PlasmaSync monitors. Like
a classic painting it follows you at every angle, drawing you in,
compelling you to look. The new 42 inch plasmasync series gets you
involved. Specifically designed for public display, the 42VP4 offers
a host of features not found anywhere else. Bright images, pure reds
and accurate colors combined with built in stereo and totally silent
operation ensure your message is always loud and clear, no matter
what the environment or angle. In areas with controlled lighting the
42VP4 features an anti-reflective filter. The sleek new design with
cable management system, programmable timer and portrait capability
make them ideal for retail, theaters, transportation terminals,
conference rooms and more. No matter how you look at it, the new 42
inch
Public Display Series gives you a clear advantage.
|
|
SPECIFICATIONS - Nec plasmasync 42vp4 plasma display screen:
|
Model Number |
42VP4
|
|
Diagonal Screen Size |
42 inch
|
|
Vertical Frequency Range |
50 to 120 Hz auto, step scan
|
|
Screen Aspect Ratio |
16:9
|
|
Contrast |
1500 to 1 |
|
Active Screen Area |
921mm x 518 mm
|
|
Native Pixel Resolution |
853 vertical dots x 480
horizontal rows
|
|
Pixel Pitch |
1.08 mm square
|
|
Output Color |
256 RGB levels, 16.7 million
colors
|
|
Viewing Angle |
160 degrees
|
|
Weight without tabletop stand |
28.5 kg, 62.8 lbs
|
|
Programmable Timer |
7 Day Programmable Timer
|
|
Included Accessories |
AC Power Cord, User Manual,
Remote Control, Batteries, Cable Clamps
|
|
Optional Accessories |
Tabletop Stand PX-ST1U
Attachable Speakers PX-42SP1U
Fixed Wall Mount FWMK
Tilt Wall Mount TWMK
Ceiling Mount CMK
Fixed Wall Mount for PC FWMKPC
Tilit Wall Mount for PC TWMKPC
Ceiling Mount for PC CMKPC
|
|
PC Signal Compatibility |
VGA 640x480 @ 60,72,75,85,100,
120 Hz
SVGA 800x600 @ 56, 60, 72,75,85,100,120 Hz
XGA 1024x768 @ 60,70,75, 85, 100 Hz
SXGA 1280x1024 @ 60, 75, 85, 100 Hz
UXGA 1600x1200 @ 60, 65, 70, 75, 85 Hz
WideVGA 848x480, 852 x 480 @ 60 Hz
WideXGA 1360 x 765 @60 Hz
|
|
Macintosh Compatibility |
640x480, 832x624, 1024x768,
1152x870
|
|
Input Terminals |
RGB 1 (analog) 15-pin mini D-sub
(common use with RGB out, selectable)
RGB 2 (analog) 5 BNC (RGB/HV) (common use with 5BNC Y/Pb/Pr
input, selectable)
RGB 3 (digital) 29-pin DVI (digital only)
Video 1 Composite BNC x 1 (common use with video out,
selectable)
Video 2 Composite RCA x 1
Video 3 S-Video 4-Pin DIN
HD Video 1 1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr)
HD Video 2 1 set BNC Component (Y,Pb,Pr/Y,Cb,Cr)
(common use with 5BNC Y/Pb/Pr input,selectable)
Audio 3 sets RCA stereo + external speaker jacks
|
|
Audio |
Internal amplifier, 8W x 2
output power
|
|
OSM |
Picture - Contrast, brightness,
sharpness, color, tint, color temperature, white balance,
picture mode, noise reduction, gamma, low tone and color tune
Audio - bass, treble, balance and audio input
Image Adjust - aspect ratio mode, vertical position,
horizontal position,
vertical height, horizontal width, fine picture, picture
adjust, auto picture
|
|
External Controls |
9-pin mini D-Sub, RS232
|
|
User Controls |
Direct Access Power on/off,
input selection, volume up/down, OSM access, (Control
Lock Switch located on input panel)
Remote Control Power on/off, input select, volume, mute, wide,
display, off-timer, OSM
control, cursor, pointer, zoom, auto, select
|
|
Power Requirements |
100V / 240V 50/60 Hz
|
|
Power Consumption |
275 W Typical, 3.7 Amp Maximum |
|
Plug and Play |
DDC1, DDC2B (RGB3 is DDC2B only)
|
|
Dimensions (WxHxD) w/o base |
40.1 x 24.0 x 3.5 inches, 1018 x
610 x 89mm
|
|
Warranty |
1 Year Parts & Labor Standard
|
|
Environmental Considerations |
Operating Temperature 32 - 104
degrees F (0 - 40 degrees C)
Operating Humidity 20 - 80%
Operating Altitude 0 - 9180 feet (0 - 2800m)
Storage Temperature 14 - 122 degrees F (-10 - 50 degrees C)
Storage Humidity 10 - 90%
Storage Altitude 0 to 9840 feet (0 - 3000m)
|
|
Regulatory |
FCC Class A, UL1950, CSA950
|
|
HD Video Signal Compatibility |
480p 480i, 525p, 525i, 540p,
625p, 625i, 720p,1035i, 1080i
|
|
Capsulated Color Filter |
AR - Anti-reflective (PX-42VP4A) |
|
|
Download Product Specs:
NEC42VP4.pdf
Download Installation Guide:
NEC42VP4_installguide.pdf
