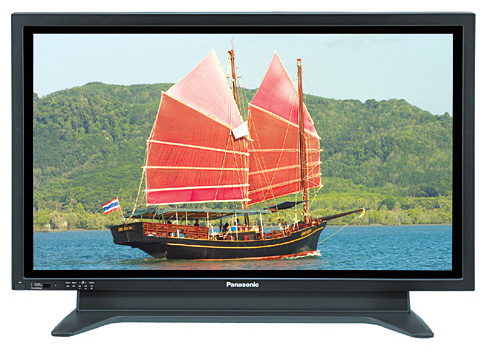

Click for Larger Image
(shown with optional table stand)
|
|
|
Panasonic TH-42PHD7UY
42-inch HDTV Ready Plasma TV Monitor |
|
OVERVIEW -
panasonic th42phd7uy 42 inch hdtv plasma tv display
Real MACH System: The Industry's Best Overall Picture
Quality
Panasonic developed two new advanced components and
integrated them in a synergetic way to form what we call the
Real MACH system. The MACH Crystallizer provides the best
driving characteristics for the display device. The MACH
(Multi-facet Asymmetrical Configuration Hyper-pixel) Panel
then delivers the image's full quality potential. Together,
these Panasonic plasma display technologies reproduce images
with the gradation and sharpness levels that are best suited
to the way the human eye perceives objects. The result is
picture quality and image depth that make for a high-impact
viewing experience.
FEATURES- Panasonic th-42phd7uy flat panel plasma monitor
Up to 3,000:1 contrast ratio - New Real Black Drive System
provides deeper, richer blacks and enhances image clarity
and realism
2,048 shades of gradation - New Super Real Gamma System
provides superior performance at brightness levels where the
human eye sees best
Full time 3.62 billion (maximum 8.52 billion) displayable
colors
10% brighter images - New Multi-Facet Asymmetrical
Configuration Hyper-Pixel (MACH) Panel features bounded cell
structure to improved light-emitting efficiency and
intensity
60,000-hour panel life - New MACH Panel boasts a long
service life of 60,000 hours
1024 x 768 resolution
16:9 widescreen aspect ratio
Over 160 degree viewing angle
Flexible A/V and IT system configurations - composite,
component, RCA, BNC, PC, RGB, SDI, HD-SDI, HDMI, DVI-D w/HDCP,
Twisted-Pair Cable, and wireless presentation terminal
boards available
Motion Picture Noise Disturbance Reduction - detects motion
patterns that tend to generate noise and makes adjustments
to maximize image quality without diminishing the quality of
stationary background objects
Active Interlace/Progressive Conversion System - reduces
interlace to progressive conversion noise that often occurs
when reproducing tiny movements, resulting in better
vertical resolution.
Dual Picture Mode - simultaneously display images from two
different sources in Picture And Picture, Picture Out
Picture, and Picture In Picture modes
4x Digital Zoom - divide the screen into zones and enlarge
images up to 400%
Built-In Video Wall Processor - set up 2x2, 3x3, or even 4x4
multi-screen plasma walls
Enhanced Screen Saver Functions - White Bar Scroll, Screen
Reversal, Side Panel Adjustment, Wobbling, Peak Limit Mode
Fanless Quiet Operation
Includes 5 BNC male to RCA female adapters
Host of stands and mounting options available
Touch-screen capability available
Networked MPEG-2 player available
|
|
SPECIFICATIONS
- Panasonic Th42phd7uy HDTV Plasma Screen
|
DISPLAY |
Screen Size Diagonal
(Effective) W x H |
42˝ (1,056 mm)
36.2˝ x 20.4˝ (920 x 518 mm) |
|
Screen Aspect |
16 : 9 Wide |
|
Number of Pixels |
786,432 (1024 x 768) |
|
Pixel Pitch (H x V) |
0.90 x 0.675 mm |
|
Displayable Colors |
3,620 million colors |
|
Contrast Ratio |
3000 : 1 |
|
Color System |
NTSC/PAL/SECAM/PAL 60Hz/M-NTSC |
|
Audio Output |
16 W (8 W x 2) |
|
On-Screen Display |
US English/UK English/ Spanish/French
/German/Italian/ Chinese/Japanese |
|
Screen Coating |
AR (Anti-Reflection) Coating |
|
GENERAL |
|
|
Power Supply |
AC 120 V, 50/60Hz |
|
Power Consumption |
357 W |
|
Stand-by Save On: |
0.5 W, Off: 0.8 W |
|
Dimensions (W x H x D) |
40.2˝ x 24˝ x 3.5˝ |
|
Weight |
66.1 lbs. (30.0 kg) |
|
Operating Temperature |
32F — 104F (0C —
40C) |
|
Operating Humidity |
20% — 80% (Non
condensation) |
|
EMI Regulations |
FCC Part 15 Class A
Digital Equipment |
|
Safety Standards |
UL6500/C-UL
(CAN/CSA-E65-94) |
|
TERMINALS |
|
|
Composite Video Input |
BNC coaxial x 1, 1.0
Vp-p (75 ohms or high impedance) |
|
Composite Video Output |
BNC coaxial x 1, 1.0
Vp-p (75 ohms or high impedance) |
|
S-Video Input |
S terminal x 1, Y: 1
Vp-p (75 ohms), C: 0.286 Vp-p (75 ohms) |
|
Audio Input |
(for Video) RCA phono type connectors (L, R) (1
set) |
|
PC Input (RGB/Component) |
Mini
D-sub 15-pin x 1
(VGA, SVGA, XGA display & SXGA, UXGA compressed
display)
fH: 15 — 110 kHz; fV: 48 — 120 Hz |
|
Audio Input (for PC) |
M3 stereo plug |
|
Component/R,G,B Input |
BNC coaxial x 3 (Y,
PB, PR or R, G, B [SYNC ON G])
Y/G: 1.0 Vp-p/composite (75 ohms); 0.7 Vp-p/non-composite
(75 ohms)
PB/B, PR/R: 0.7 Vp-p (75 ohms) |
Audio Input
(for Component/R,G,B) |
RCA phono type
connectors (L, R) (1 set) |
|
Serial (RS232C)
D-Sub 9-pin (Female) |
|
|
