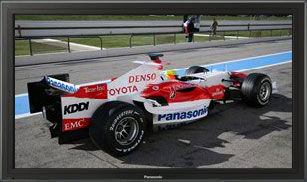

Panasonic TH50PH11UK 50 inch Professional Series HDTV Plasma Tv Monitor

Our Price $1498.56 Including 3 - 5 Day Shipping

Back to Panasonic Plasma TV Main

OVERVIEW - Panasonic th50ph11uk 50 inch Professional Series HDTV Plasma Tv Monitor:

The new Panasonic TH-50PH11UK Professional Series 50 inch HDTV plasma monitor offers remarkable image quality that is perfect for home theater installations, broadcast studios, boardrooms and digital signage. Featuring industry leading 18-bit digital video processing, increased gradiation (4096 steps) and an improved contrast ratio of up to 15,000:1, the Panasonic TH50PH11UK plasma provides an incredible visual experience. Optional video terminal boards "future proof" the plasma by allowing you to add new technologies as they become available.

FEATURES - Panasonic TH50PH11UK 50 inch Professional Series HDTV Plasma Tv Monitor:

• Native 1366 x 768 resolution
• 1400 cd/m2 brightness
• Up to 15,000:1 Contrast Ratio for extremely deep, rich blacks
• Dual HDMI inputs
• Industry-leading 18-bit digital image processing produces 4,096 steps of gradation for brilliant and true-to-life color
• Plug-in architecture allows the addition of multi-function terminal boards for added connectivity and functionality
• Outstanding 100,000-hour service life
• New Text Overlay feature provides enhanced signage functionality
• Newly-developed 11th generation phosphor significantly resists burn-in as effectively as CRT displays
• Lighter and more energy efficient than previous models
• Enhanced screen saver features like Overlay Scrolling Bar and White Screen provide additional protection against image sticking
• Advanced Dual Picture mode and built-in image enlarging function enhances multi-screen systems
• Expanded configurations for multi-screen displays and the ability to enlarge an image up to 5X vertically and horizontally
• Wide variety of optional video cards to customize a panel to meet practically any application

SPECIFICATIONS - PANASONIC TH-50PH11UK HDTV PLASMA MONITOR:

Display
• Screen Size (Diagonal) 49.9-inch
• Aspect ratio 16:9
• Effective Display Area (W x H) 43.5" x 24.5" (1106 x 622 mm)
• Resolution (H x V) 1,366 x 768 pixels
• Pixel Pitch (H x V) 0.810 x 0.810 mm
• Brightness 1,400 cd/m2
• Contrast Ratio (Bright room) 15,000:1 (400:1)
• Gradation 4,096 steps (equivalent)

  Signal Compatibility
• Scan Rate Horizontal frequency 15-110 kHz Vertical frequency 48 -120 Hz
• PC Signal Compatibility VGA, WVGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, WSXGA+, UXGA, WUXGA (WXGA and over resolution : compressed)
• Video Signal Compatibility 525(480)/60i•60p, 625(575)/50i•50p, 750(720)/60p•50p,1125(1080)/60i•50i•24p•24sF•25p•30p•50p•60p, 1250(1080)/50i

  Input / Output
• PC IN Mini D-sub 15pin x 1 (Female) Analog RGB/Components Plug & Play (VESA DDC 2B)
• AUDIO IN M3 jack x 1
• SERIAL D-sub 9-pin x 1 (Male) External control, RS-232C compatible

  Interchangeable Terminals
• Slot1 Vacant
• Slot2 (TY-FB10HMD) HDMI x 2
• Slot3 (TY-42TM6A) BNC x 3 Analog RGB/Components / RCA pin jack x 2

  Electrical
• Power Requirements 110-127 V AC, 50 Hz/60 Hz
• Power Consumption 465 W
• Power off condition 0.1 W
• Stand-by condition Save OFF 1.4 W, Save ON 0.6 W

  Sound
• Audio Output 16 W [8 W + 8 W] (10% THD) Mechanical
• Dimensions (W x H x D) 47.6" x 28.5" x 3.7" (1,210 x 724 x 95 mm) (exclusive protruding portion)
• Weight approx. 74.8 lbs (34.0 Kg)
• Cabinet Color Black

  Operating environment
• Temperature 32 °F - 104 °F (0 °C - 40 °C)
• Humidity 20 % - 80 % (Non condensation)
• Altitude 0 - 9,100 feet (0 - 2,800 m)

  Storage Environment
• Temperature –4 °F - 140 °F (–20 °C - 60 °C)
• Humidity 20 % - 90 % (Non condensation)
• Altitude 0 - 10,800 feet (0 - 3,300 m)

  EMI Regulations
• FCC Part 15 Class-B, ICES-003 Class-B

  Safety Standards
• UL6500 Ver.2

  Included Accessories
• Fixing Band
• AC power cord
• Operating instruction book
• Remote control
• Batteries
