Philips FTR9964 E-Box Plasma Tv Receiver
Replaced by
Philips FTR9965
Back to Philips Plasma Main
|
|

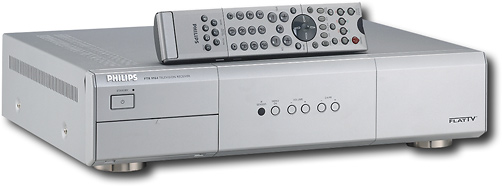

FTR9964 Front View |
Philips FTR9964 E-Box Plasma Tv Receiver |
|

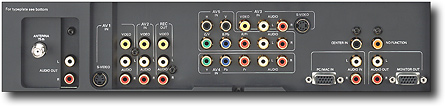

FTR9964 Rear View |
|
Click For Larger Images |
|
Basically a Plasma
Tv Display Panel is just a giant computer monitor. It must have sources
connected to it in order to display a picture. When you sit down in front of
a Philips Plasma Tv Display Panel, you expect to see an excellent picture from
any source. Well, when connected to the FTR9964, or E-Box, you get just
that!
What is it?
The FTR9964 or E-Box is a separate set top box that connects directly to the
Philips Plasma Tv panel with a very high quality shielded true 15-pin VGA type
cable.
What does it do?
- Adds digital noise reduction
- Digital Crystal Clear picture enhancement, including
Dynamic Contrast, SVM, 3-line digital comb filter, and Color enhancement
- Digital Natural Motion
- Two Tuner PIP (Picture-In-Picture) with split-screen
and mosaic capability
- Six Widescreen modes, including auto-format
- When the E-Box is connected to a separate, Optional
digital converter, your Philips Flat TV is also compatible with digital
signals
- 6 A/V inputs
- NTSC tuner and remote
- Active control system can implement over 3,000 picture
adjustments per minute to deliver the best-possible picture
- Digital crystal-clear processing provides multiple
video treatments to ensure optimal picture performance
What are the benefits?
Digital Natural Motion - No more “Smearing” of the picture. Natural 3D
look. Reproduces smooth movement which makes entire viewing experience more
natural. This advanced analog picture processing is great for DVD and
broadcast TV.
Seven (7)Viewing Modes - This allows the user the choice of how they want to
view the material. The format modes are as follows: 4:3,Movie Expand 14:9,
Movie Expand 16:9,Movie Expand 16:9 with subtitling, SuperWide, Widescreen,
and Auto Format.
DualTuner Dual Window PIP - Inside the E-Box, is an NTSC (analog) TV tuner.
This allows the viewer to watch two shows at the same time with “Split
Window” PIP.
Additional A/V Inputs - Allows for connection of up to six additional A/V
components (including an HD set top box and a progressive scan DVD player).
Active Control Plus+ - Active Control Plus+ is a unique, intelligent, and
proactive control system, which continuously measures and analyzes the
incoming signal 60 times per second to automatically adjust settings for
optimal picture quality. Active Control Plus+ also uses a sensor to adjust
for ambient room light, the room gets brighter, so does the picture.
APAC™ (Automatic Phosphor Aging Compensation) - When black bars are present
on screen (either on the sides or the top and bottom),APAC™ imperceptibly
moves the picture up and down or back and forth helping to prevent the
dreaded screen burn-in. Think of APAC™ as a screen saver for your
television.
Installation - A specially designed VGA type cable connects the E-Box to the
Plasma panel. The picture, sound, and infrared control of the E-Box is
achieved through the IR port on the Plasma panel. This freedom of control
allows the E-Box to be hidden away with the rest of the A/V equipment.
|
Philips FTR9964
Connections
- Front
- S-Video in (Y/C)
- video CVBS (cinch)
- audio L/R-in (cinch) with automatic mono switching
- headphone jack 3.5mm
- Rear
- AV 1 :
- Video CVBS, audio L-R
- S-Video (Y/C)
- AV 2 :
- AV 3 :
- Video CVBS, audio L-R
- S-Video (Y/C)
- AV 4 :
- Component video in
- YPbPr, audio L-R (+CVBS)
- AV 5 :
- Component video in
- YPbPr (2Fh for DVD),
- audio L-R
- R/G/B/H/V (cinch) + audio L-R
- Record out:
- Video CVBS out, audio L-R out
- Sound out:
- 2 audio out L-R, Constant/ Variable level
- 1 surround sound out,Variable level
- VGA in : 15pin sub-D, audio L-R
- Monitor/VGA out : 15pin sub-D, audio L-R
- Antenna input : 75Ohm F-pin
|
|
