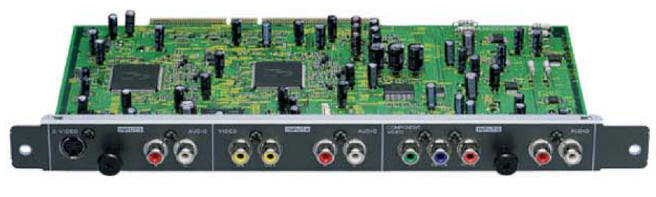

Pioneer PDA-5004
Plasma Tv Video Card with High Definition Video through RCA Component, S-Video
and Composite Input Terminals
For use with Pioneer PDP-425CMX and
PDP-505CMX
Our Price $164.31 Including 3 - 5 Day Shipping
Back to
Plasma Tv Video Cards Main
OVERVIEW - Pioneer PDA5004 Plasma Tv Video
Card
The PDA-5004 enables the ability to display High Definition video through
component, S-Video and composite input terminals. The PDA-5004 is a video
card designed for exclusive use with the Pioneer Plasma TV Display.
FEATURES - pioneer pda5004 plasma tv video card
The Pioneer Plasma Display has been originally designed as a computer
monitor, but by installing the optional PDA-5004 video card, the
supplementary features are produced:
-
Allows use of
additional input jacks (INPUT 3,4,5) supporting S-Video, composite video
and component video.
-
Allows connection to
a wide variety of optional video and computer equipment.
-
The video card is
provided with 3 video input connectors, 1 video output connector, and 3
audio input connectors.
SPECIFICATIONS - PIONEER PLASMA PDA-5004
VIDEO CARD WITH RCA INPUTS
|
VIDEO INPUT/OUTPUT 3.58NTSC, 4.43NTSC, PAL, SECAM, PAL-N, PAL-M |
| |
|
Connector |
Signal |
Level / Impedance |
|
INPUT3 |
IN |
Mini DIN 4Pin
S terminal |
Y/C Separate Video Signal |
Y: 1Vp-p/75Ω
C: 0.286Vp-p/75Ω(NTSC)
0.3Vp-p/75Ω(PAL)* |
|
INPUT4 |
IN |
RCA |
Composite Video Signal |
1Vp-p/75Ω |
|
OUT |
RCA |
Composite Video Signal |
75Ω |
|
INPUT5 |
IN |
RCAx4 |
Composite Video Signal |
Y:1Vp-p/75Ω
Pb/Cb, 0.525Vp-p/75Ω
(75% saturation) |
|
AUDIO INPUT/OUTPUT |
| |
Connector |
Level / Impedance |
|
AUDIO INPUT (INPUT3) |
RCA pin x 2 |
L / R: 500mVrms/more then 10KΩ |
|
AUDIO INPUT (INPUT4) |
RCA pin x 2 |
L / R: 500mVrms/more then 10KΩ |
|
AUDIO INPUT (INPUT5) |
RCA pin x 2 |
L / R: 500mVrms/more then 10KΩ |
|
