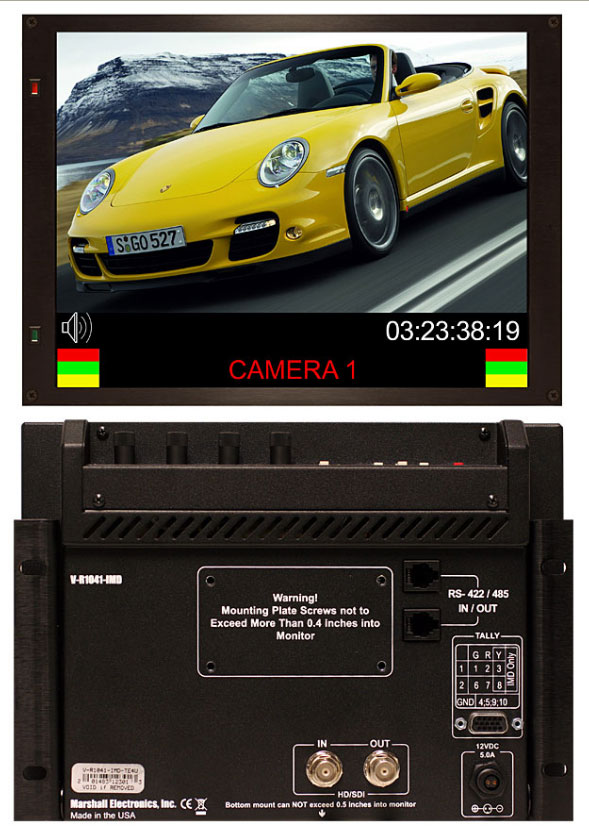

MARSHALL V-R1041-IMD-TE 10.4 inch Stand alone LCD Monitor with IMD Function
KEY POINTS - VR1041IMDTE Marshall 10.4 inch Stand alone LCD Monitor with IMD Function:
No need for external Under Monitor Display -- "all-in-one" In-Monitor Display solution without added depth
Supports the following protocols: Image Video / NVISION / TSL / MEI
High Resolution 1024 x 768 RGB Dots with 2.4 million pixels
16.7 million colors
Industry's first and only dual 10.4 inch monitor set that fits in just 4RU rack space
New unique RotoMenu feature for fast, direct, and easy menu navigation
5 Year / 50,000 hour backlight life
High resolution scaling / high quality deinterlacing
Ultra-wide viewing radius -- 170 degree horizontal and vertical provides superior visibility
300 cd/mē luminance produces enhanced image quality in varying light and viewing conditions
700:1 ratio of contrast between black and white luminance values
Three-color on-screen "soft" tally indicators (Red / Green / Amber)
Two LED color tally indicators (Red / Green)
On-Screen Audio Presence Indicator
On-Screen Video Time Code
RS-422 / 485 connection with loop-through for control communication / IMD functionality
Field upgradeable firmware capability via RS-422 / 485 port
Built-in Color Bars
Direct access for adjustments of brightness and contrast
6 Frame Marker Overlays with Center Mark
Blue Gun for color adjustment
Adjustment Settings Memory
SUMMARY - Marshall vr1041imdte 10.4 inch Stand alone LCD Monitor with IMD Function:
Marshall Electronics introduces the industry's first full lineup of LCD panels with In-Monitor Display functionality. The new V-R1041-IMD-TE4U Truck Edition single HD 10.4 monitor set is a cost-effective "all-in-one" solution for post production houses, broadcasters, and mobile units. This fully-integrated approach eliminates the need for additional or separate Under Monitor Displays and allows UMD information and tallies to be displayed directly within a Marshall flat panel monitor, while saving precious rack space. A variety of features are readily available including on-screen Video Time Code, three-color "Soft" Tallies, and Audio Presence Indicator. The new Marshall IMD displays also introduce our new RotoMenu feature which allows fast, direct, and easy menu navigation.
Marshall IMD monitors integrate easily with existing Tally systems and controllers, including Image Video, NVISION, TSL, and MEI protocols. This 4RU unit also ships ready to rack mount and provides up to 20% more screen when compared to our competitors' LCD and CRT models that occupy the same space. This is in addition to the benefits of low weight and power consumption when compared to similar CRT products and separate Under Monitor Display configurations. The V-R1041-IMD-TE4U is a perfect solution for large Video Wall applications and systems.
The V-R1041-IMD-TE4U offers a single HDSDI/SDI input with active loop-through capability.
Additional features include ultra-wide viewing angles, adjustment settings memory, Zoom function, 6 Frame Marker Overlays, built-in Color Bars, Pixel-to-Pixel mode, Blue Gun, and direct access for adjustment and selection functions. Can also be used as a standalone display with HDSDI loop-through.
