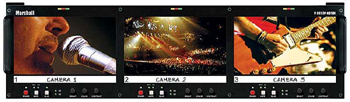

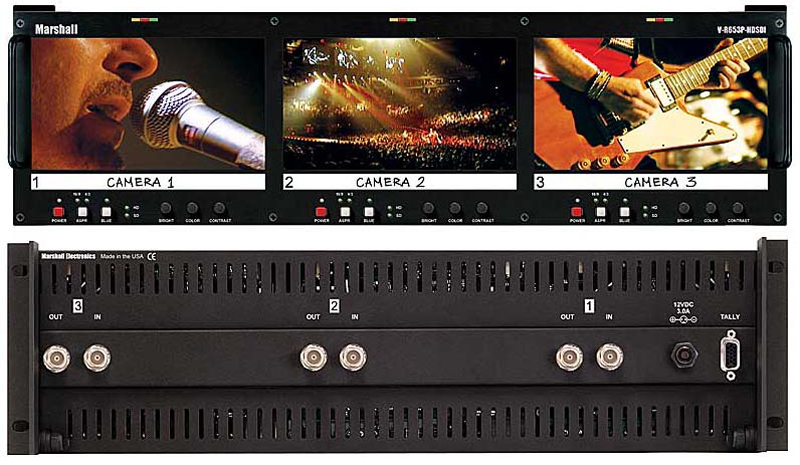

MARSHALL V-R653P-HDSDI Triple 6.5 inch HD Rack Mountable LCD with SDI
OVERVIEW - Marshall vr653phdsdi Triple 6.5 inch HD Rack Mountable LCD with SDI:
Marshall Rack mounted and tiltable V-R653P-HDSDI represents leading edge technology in LCD imaging for broadcast and professional video applications featuring High Resolution, 1.2 megapixel, TFT screens with completely digital signal processing. All SMPTE/ITU serial digital video standards and frame rates are accepted and displayed on each screen of this model.
All video formats are scaled to fit on screen in the highest resolution using a state of the art LSI that incorporates 4x4 pixel interpolations with precision Gamma correction to produce the best images available. Each screen is calibrated to SMPTE standards for gamma and color temperature.
FEATURES - Marshall
VR653PHDSDI Triple 6.5 inch HD Rack Mount LCD Monitor:
3 High Resolution 6.5-inch 1.2 MegaPixel wide screens
100% digital processing
High resolution scaling of all images
Wide viewing radius - 130° horizontal and 120° vertical provides superior visibility when the viewer is not directly in front of the screen.
500 candelas per square meter (cd/m2) luminance produces enhanced image quality in varying light and viewing conditions.
500:1 ratio of contrast between black and white luminance values with response rates less than 30 ms results in excellent quality for moving images.
4:3 and 16:9 screen aspect ratios for DTV applications in HD and SD formats
Works with all SMPTE/ITU SDI/HDSDI production formats and frame rates
Blue Gun for color adjustment
SD/HD digital signal indicators
SPECIFICATIONS - MARSHALL V-R653P-HDSDI RACK MOUNT LCD MONITOR:
Display (Viewing Area) 7" (6.14"H x 3.27"V) (156.0mm x 83.28mm)
Resolution ( RGB Dots) 800H×RGBx480V (1.2 million pixels)
