Marshall V-R72DP Dual 7 inch Wide Screen LCD Rack Mount Panel with built-in router

Our Price $2349.99 Including 3 - 5 Day Shipping

Back to Marshall Rack Mount LCD Monitors

Click For Larger Image

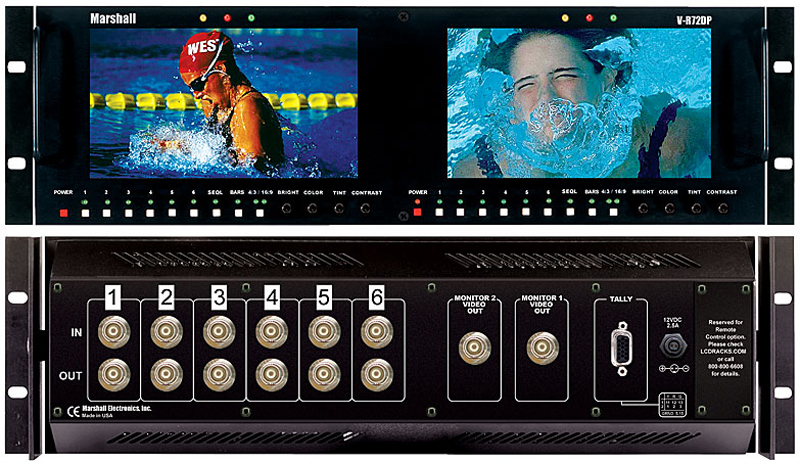

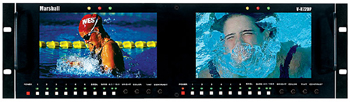

OVERVIEW - Marshall VR72DP Dual 7 inch Wide Screen LCD Rack Mount Panel with built-in router:

The Marshall Rack mounted and tiltable V-R72DP is a unique product with an integrated 6 x 2 router / sequencer. The V-R72DP features 2 7-inch TFT-Megapixel screens and completely digital signal processing. Analog composite signals are digitized using an advanced 10 bit process on each signal path with 4x over sampling and adaptive 5 line comb filter with exacting color space conversion. All video formats are scaled to fit on screen in the highest resolution using state of the art LSIs that incorporate 4 x 4 pixel interpolation with precision Gamma correction to product the best images available.

FEATURES - Marshall VR72DP Dual 7 inch Wide Screen Rack Mount Lcd Panel:

• High Resolution 7-inch wide screen 800 x RGB x 480 Dots with 1.2 million pixels
• 100% digital processing
• Analog signals converted to 10 bit digital
• High resolution scaling of all images
• Wide viewing radius - 130° horizontal and 120° vertical provides superior visibility when the viewer is not directly in front of the screen
• 380 candelas per square meter (cd/m2) luminance produces enhanced image quality in varying light and viewing conditions
• 400:1 ratio of contrast between black and white luminance values with response rates less than 30 ms results in excellent quality for moving images
• 4:3 and 16:9 screen aspect ratios for DTV applications in HD and SD formats
• Automatic NTSC/PAL format detection
• Standard Multiformat inputs:
• 6 Composite Video PAL/NTSC
• Loop through of all inputs signals
• Any of the 6 inputs can be routed to each screen
• Each screen can sequence through all active inputs
• Active output for video displayed on each screen
• Easy to see three color tally indicators
• Built in Color Bars
• Blue Screen for color adjustment
• Adjustment Settings Memory

SPECIFICATIONS - MARSHALL V-R72DP RACK MOUNT LCD PANEL:

• Display (Viewing Area) 7" (6.07" × 3.41")
• Resolution (Pixels) 1440 H × 234V
• Dot Pitch 0.108mm × 0.375mm
• Brightness (in cd/m²) 400 cd/m²
• System NTSC/PAL auto rec
• Inputs per panel (total) 6 (6) Composite
• Dimensions 19.125"W × 5.14"H × 2.5"D
• Approx. Weight 5 lbs
• Power Consumption 12 VDC, 2.0 Amps

Manufacturer Homepage: www.lcdracks.com
