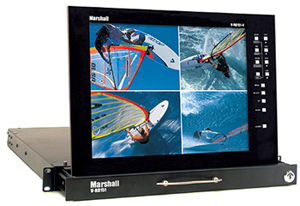

MARSHALL V-RD151-4 15 inch LCD Rack Mountable Panel In Drawer with Quad Splitter
OVERVIEW - Marshall vrd1514 15 inch LCD Rack Mountable Panel In Drawer with Quad Splitter:
Another save saving monitor in a drawer is the
Marshall V-RD151-4. This model features a Quad Split and Sequential Switcher for composite video signals. The 1024 × 768 display produces a high resolution image. For added flexibility, this unit can accommodate composite video, Y/C (S-video) or XGA computer signals for monitoring (S-video and XGA inputs are only available in full screen mode).

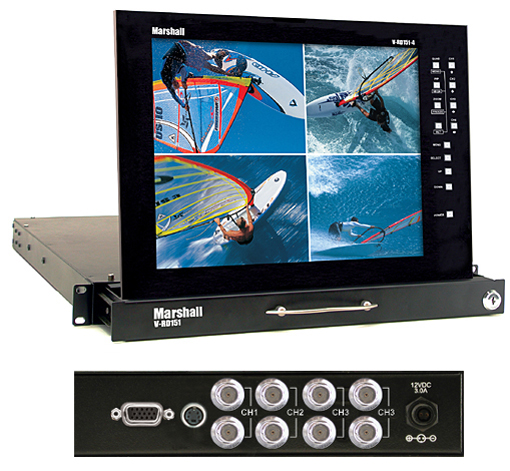

All connections are accessed from the rear of the drawer enclosure and include loop through for each signal. When the display is closed into the drawer, a keyed lock is provided for secure transport. Power supply and owners manual are included.
FEATURES - Marshall VRD1514 15 inch
Rack Mount LCD Panel in Drawer:
High Resolution 1024 × 768 pixels, 786,432 total
Bright 250 candle luminance
4 Video inputs with 75W termination and active loop through feature
Ultra-compact design fits in EIA standard rack 1U high
Built-in Quad Splitter/Sequential Switcher
Available in NTSC or PAL format
Key lock for secure transportation
SPECIFICATIONS - MARSHALL V-RD151-4 RACK MOUNT LCD PANEL:
