KEY POINTS - Marshall vmd434 quad 2ru 4.3 inch high resolution lcd rack mount monitor with modular inputs/outputs:
High-Resolution 5” and 4.3” Panel The V-MD503 and V-MD434 feature an all-digital TFT-MegaPixel active matrix LCD system with 1.15 million pixels. The LCD panels feature a brightness of 300 cd/m2 and 200 cd/m2 and contrast ratios of 6000:1 and 400:1, respectively making the display ideal in a variety of environments and lighting conditions.
Modular Input Design Each monitor has rear slots to support various Digital, Optical and Analog video input modules.
Multi-Format Compatibility Accepted formats include 480i, 576i, 720p, 1035i, 1080i. 3G/HD/SDI, HDMI, DVI-I, Optical inputs available as optional Input Modules. Please contact Marshall Electronics for availability.
ColorMatch Conversion with Color Temperature Adjustment Emulation of SMPTE-C/EBU color space allows these monitors to replace any broadcast CRT monitor. Presets include D65, D55 and D93. Bias and Gain adjustment for each color enables precise color matching and white balance.
False Color Filter, and other Advanced Features False Color filter, Aspect ratio settings, blue-only mode, and monochrome mode are a few of the advanced features which make the V-MD503 and V-MD434 at home in any broadcast environment. Pixel-to-Pixel mode also allows native display of any incoming image format.
Flexible Screen Markers A variety of screen markers in 4:3, 16:9, and full screen modes allow accurate monitoring of the different aspect ratios used in broadcast environments.
User-Definable Function Buttons Two user-definable function buttons on the frontpanel allow quick access to numerous settings and features including false color filter, aspect ratio, screen markers, monochrome mode, color temperature and more.
SUMMARY - Marshall vmd434 Quad 2RU 4.3 inch High Resolution LCD Rack Mount Monitor with Modular Inputs/Outputs:

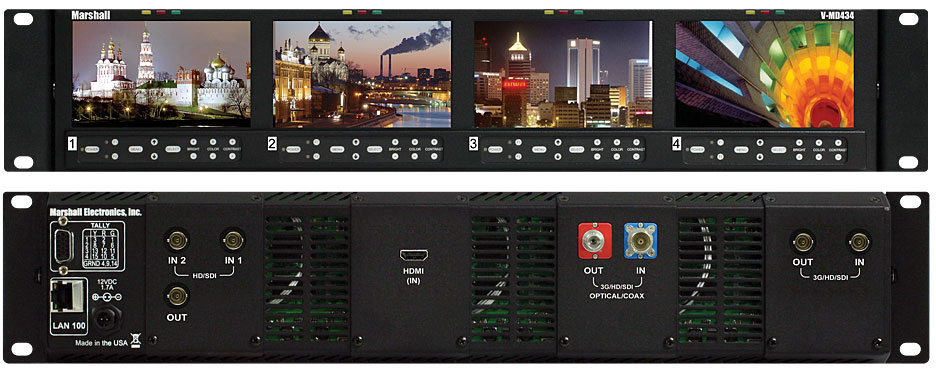

The Marshall V-MD434 offers four 800 x 480 LCDs in one single configuration. along with excellent viewing angles. The VMD434 includes Status Display, False Color Filter, Markers, Freeze Function, Color Temperature Presets, RGB Gain / Bias Adjust, Pixel-to-Pixel, Blue Gun, Hard Tally, two user-definable function buttons, and more. A variety of modules will become available including the availability of 3G/HD/SDI with loop-through, Fiber-Optic input/output modules, and more.
Marshall's new MD monitors integrate Telecast Fiber System's TeleCube™ Fiber-Optic HD/SDI transmission input/output modules. These new fiber modules deliver the industry's broadest range of digital rates while maintaining pristine signal quality that broadcasters and integrators demand.
DETAILED SPECS - MARSHALL V-MD434 QUAD 2RU 4.3 INCH HIGH RESOLUTION LCD RACK MOUNT MONITOR WITH MODULAR INPUTS/OUTPUTS:
