KEY POINTS - Marshall vmd4343gsdi quad 2ru 4.3 inch high resolution lcd rack mount monitor with modular 3g-sdi input/output:
High-Resolution 5” and 4.3” Panel
The V-MD503 and V-MD434 feature an all-digital
TFT-MegaPixel active matrix LCD system with
1.15 million pixels. The LCD panels feature a
brightness of 300 cd/m2 and 200 cd/m2 and
contrast ratios of 6000:1 and 400:1, respectively
making the display ideal in a variety of
environments and lighting conditions.
Modular Input Design
Each monitor has rear slots to support various
Digital, Optical and Analog video input modules.
Accepted formats include 480i, 576i, 720p, 1035i,
1080i. 3G/HD/SDI, HDMI, DVI-I, Optical inputs
available as optional Input Modules. Please
contact Marshall Electronics for availability.
ColorMatch Conversion with Color
Emulation of SMPTE-C/EBU color space allows
these monitors to replace any broadcast CRT
monitor. Presets include D65, D55 and D93. Bias
and Gain adjustment for each color enables
precise color matching and white balance.
False Color Filter, and other Advanced
False Color filter, Aspect ratio settings, blue-only
mode, and monochrome mode are a few of the
advanced features which make the V-MD503 and
V-MD434 at home in any broadcast environment.
Pixel-to-Pixel mode also allows native display of
any incoming image format.
Flexible Screen Markers
A variety of screen markers in 4:3, 16:9, and full
screen modes allow accurate monitoring of the
different aspect ratios used in broadcast
User-Definable Function Buttons
Two user-definable function buttons on the frontpanel
allow quick access to numerous settings
and features including false color filter, aspect
ratio, screen markers, monochrome mode, color
temperature and more.
SUMMARY - Marshall vmd4343gsdi Quad 2RU 4.3 inch High Resolution LCD Rack Mount Monitor with Modular 3G-SDI Input/Output:

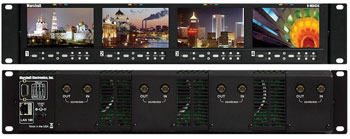

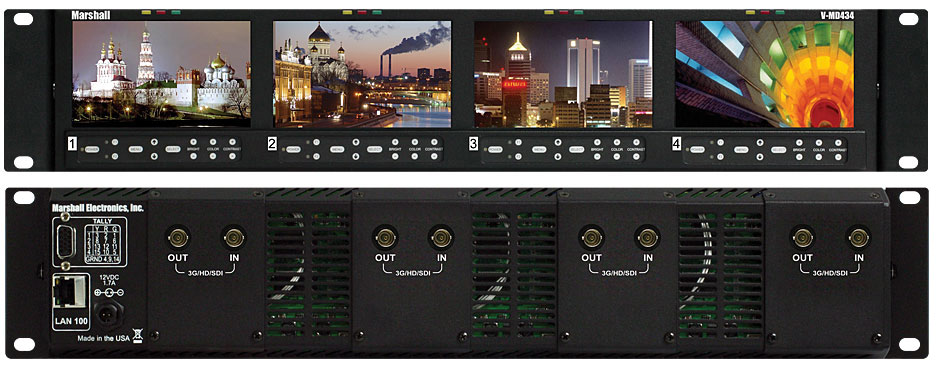

The Marshall V-MD434 offers four 800 x 480 LCDs in one single configuration, along with excellent viewing angles. The VMD434 includes four 3G-SDI modules with loop-through, Status Display, False Color Filter, Markers, Freeze Function, Color Temperature Presets, RGB Gain / Bias Adjust, Pixel-to-Pixel, Blue Gun, Hard Tally, two user-definable function buttons, and more. A variety of optional input/output modules will be offered.
Marshall's MD monitors can integrate Telecast Fiber System's TeleCube Fiber-Optic HD/SDI transmission input/output modules. These new fiber modules deliver the industry's broadest range of digital rates while maintaining pristine signal quality that broadcasters and integrators demand.
