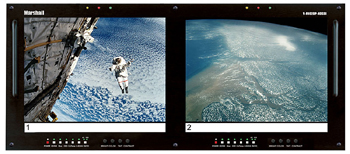

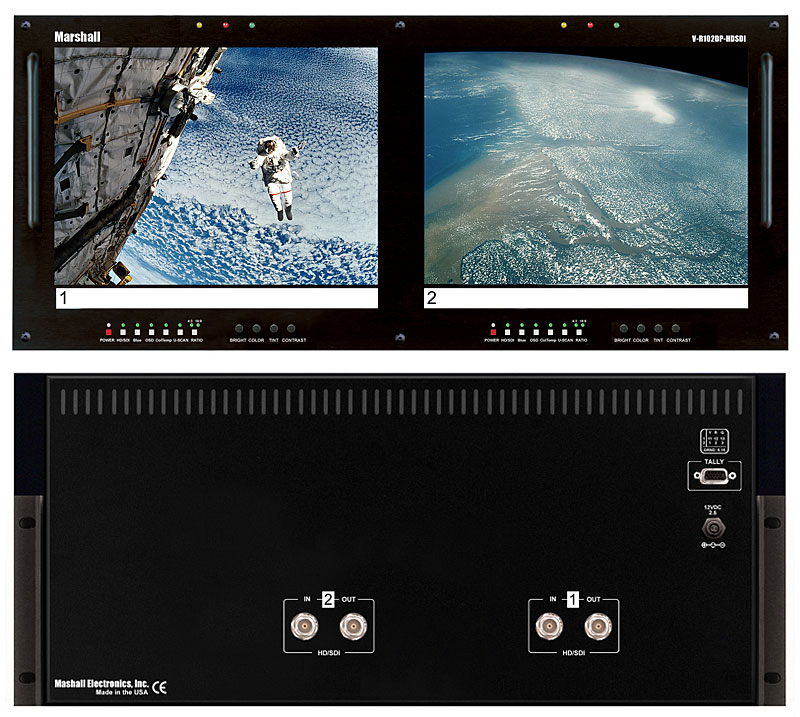

Our budget model, V-R102DP-HDSDI, features our award winning TFT-MegaPixel system and is a cost effective solution for many broadcast and professional video applications. Ready to rack mount in 5RU, this cost effective model provides up to 20% more screen when compared to our competitors' LCD and CRT models that occupy the same space. This is in addition to the benefits of low weight and power consumption when compared to similar CRT products.
Inputs are provided for a single HDSDI/SDI source on each of the screens. Our Hyper Process for motion compensation is employed to provide smooth motion of interlace images. All screen formats are scaled to fit on screen in the highest resolution using our proprietary program and state of the art LSI with CRT Color Match conversion to emulate SMPTE-C phosphor of a CRT.
Display (Viewing Area)
10.4 Inch diagonal (211.2mm W x 158.4mm H)
800 Wide x 600 High (1.44 Million RGB Pixels)(262,000 colors)
.264mm square pixel
Brightness (in cd/m)
NTSC/PAL auto rec
Inputs per panel (total)
19.24" w x 8.67" h x 1.5" d (485.7mm x 220.22mm x 38.1mm)
7.2 lbs (3.27 kg)
App. 50Watt (5Amp 12 VDC Class 2 power supply included)
