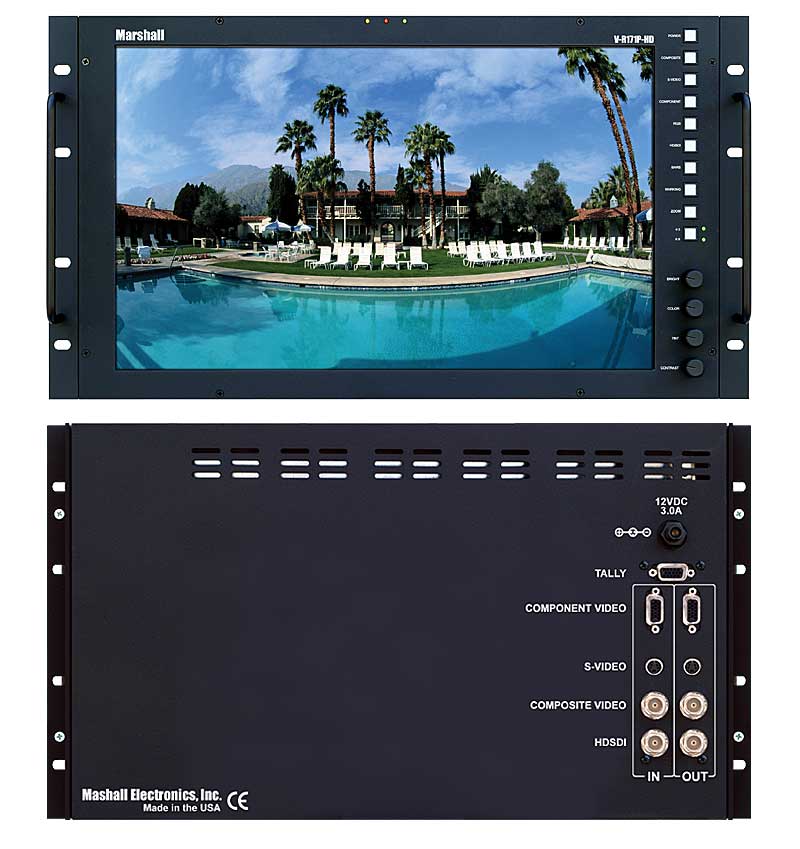

MARSHALL V-R171P-HD High Definition 17 inch Rack Mountable LCD Monitor
OVERVIEW - Marshall vr171phd High Definition 17 inch Rack Mountable LCD Monitor:
Occupying only 6 SRU and weighing just 12 pounds, the
Marshall V-R171P-HD has a high resolution LCD display with 2.95 million pixels. It includes our Universal Input configuration and does not require any adapter boxes or expensive options. Standard inputs include active loop through on each connection for HDSDI/SDI, Y/C, and composite video with PAL/NTSC automatic recognition. There is also a multiformat connector for HD or SD analog component signals.
For computer graphic applications, this unit also has a scalable XGA input. Additional features include, setup memory, Zoom function, 6 Frame Marker Overlays and direct access for adjustment and selection functions. With an optional VESA adaptor this monitor can be wall or ceiling mounted. Instruction manual and universal power supply are included.
FEATURES - Marshall VR171PHD 17 inch Rack Mountable LCD Monitor:
High Resolution wide screen 1280 x 768 Dots with 2.95 million pixels
16.7 million colors
CRT style viewing radius - 170° in any direction provides superior visibility when the viewer is not directly in front of the screen.
Bright 450 candelas per square meter (cd/m²) luminance produces enhanced image quality in varying light and viewing conditions.
500:1 contrast ratio with response rates less than 23 ms results in excellent quality for moving images.
4:3 and 16:9 screen aspect ratios for DTV applications in HD and SD formats
Standard Multiformat inputs:· HDSDI (all formats) · SDI (ITU-R BT601 format) · Component Analog HD/SD · Composite Video PAL/NTSC · XGA Display Zoom function
Mono display (Black and White)
Built in Color Bars
6 Frame Marker Overlays with Center Mark
Easy to see three color tally indicators
Adjustment Settings Memory
SPECIFICATIONS - MARSHALL V-R171P-HD RACK MOUNT LCD MONITOR:
Display (Viewing Area) 17" (13.30" × 10.63")
Resolution (Pixels) 1280 H × 768 V (2.4 million pixels) (16.7 million colors)
