MARSHALL V-R171P-4 17 inch Rack Mountable LCD Monitor with Quad Splitter & Switcher
OVERVIEW - Marshall vr171p4 17 inch Rack Mountable LCD Monitor with Quad Splitter & Switcher:

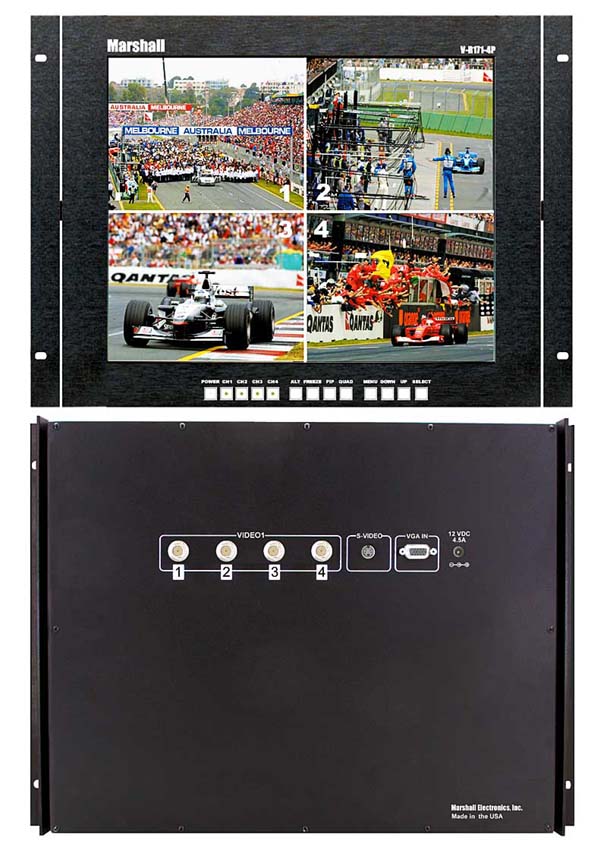

Marshall V-R171P-4 is a 17" LCD rack mounted unit that features a built-in Quad Splitter with Sequential Switcher. This high resolution LCD panel has a pixel count 1280 x 1024, capable of producing nearly 17 million colors, and fits in a standard 19" rack 8U high. The Quad Splitter allows all of the four channels to appear on the monitor simultaneously either using the full screen or picture-in-picture mode.
Other features include digital freeze and zoom functions as well as 16:9 aspect ratio via an on screen menu. For added flexibility, this unit can accommodate 4 composite video, 1 S-Video or 1 SXGA for computer monitoring (S-Video and SXGA inputs are only available in full screen mode). The unit includes power supply and owners manual.
FEATURES - Marshall
VR171P4 17 inch Rack Mountable LCD Monitor:
High Resolution LCD panel, 1280 x 1024 pixels, 1,310,720 total
Unique Ultra Wide Viewing Angle LCD Panel, 170° in any direction
Bright 250 candle luminance
Built-in Quad Splitter/Sequential Switcher
Software driven 16:9 to 4:3 ratio switch
HDTV ready, will accept 1080i/720p signal with optional HD to VGA converter
Compact design fits in EIA standard rack 8U high
Unique 180 degree tilt adjustment while mounted in rack
Available in NTSC or PAL format
SPECIFICATIONS - MARSHALL V-R171P-4 RACK MOUNT LCD MONITOR:
