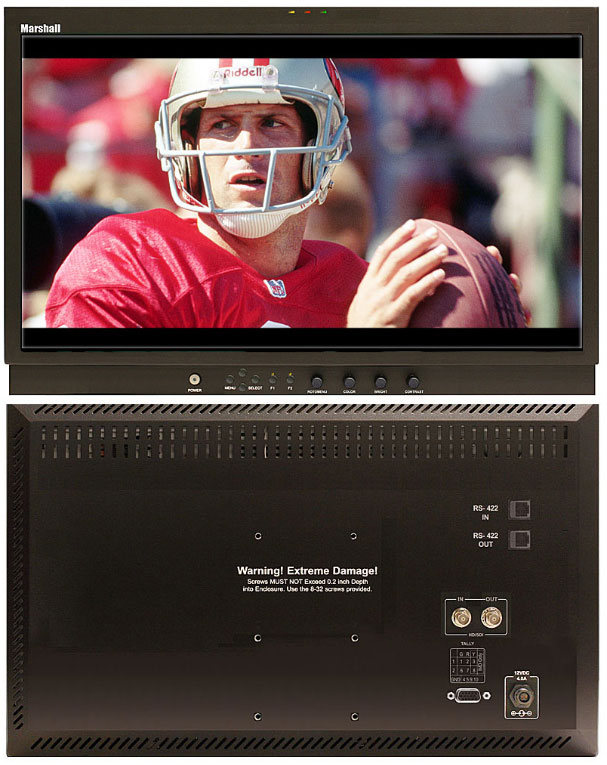

MARSHALL V-R261-IMD-HDSDI 26 inch Widescreen HD LCD Monitor with IMD Function
KEY POINTS - VR261IMDHDSDI Marshall 26 inch Widescreen HD LCD Monitor with IMD Function:
No need for external Under Monitor Display -- "all-in-one" In-Monitor Display solution without added depth
Supports the following protocols: Image Video / NVISION / TSL / MEI
High Resolution 1920 x RGB x 1200
New unique RotoMenu feature for fast, direct, and easy menu navigation
High resolution scaling / high quality deinterlacing
500 cd/mē luminance produces enhanced image quality in varying light and viewing conditions
800:1 ratio of contrast between black and white luminance values
Three-color on-screen "soft" tally indicators (Red / Green / Amber)
Three LED color tally indicators (Red / Green / Amber)
On-Screen Audio Presence Indicator
On-Screen Video Time Code
RS-422 / 485 connection with loop-through for control communication / IMD functionality
Field upgradeable firmware capability via RS-422 / 485 port
Built-in Color Bars
Direct access for adjustments of brightness and contrast
6 Frame Marker Overlays with Center Mark
Blue Gun for color adjustment
Adjustment Settings Memory
SUMMARY - Marshall vr261imdhdsdi 26 inch Widescreen HD LCD Monitor with IMD Function:
Marshall Electronics introduces the industry's first full lineup of In-Monitor Displays. The new V-R261-IMD-HDSDI 26" LCD monitor is a cost-effective "all-in-one" solution for post production houses, broadcasters, and mobile units. This fully-integrated approach eliminates the need for additional or separate Under Monitor Displays and allows UMD information and tallies to be displayed directly within a Marshall flat panel monitor, while saving precious rack space. A variety of features are readily available including on-screen Video Time Code, three-color "Soft" Tallies, and Audio Presence Indicator.
The new Marshall IMD displays also introduce our new RotoMenu feature which allows fast, direct, and easy menu navigation.
Marshall IMD monitors integrate easily with existing Tally systems and controllers, including Image Video, NVISION, TSL, and MEI protocols. This unit also ships ready to rack mount and can be wall or ceiling mounted with an optional VESA adaptor. This is in addition to the benefits of low weight and power consumption when compared to similar CRT products and separate Under Monitor Display configurations.
The V-R261-IMD-HDSDI is a perfect solution for large Video Wall applications and systems. This unit also offers a single HDSDI/SDI input with active loop-through capability. Additional features include adjustment settings memory, Zoom function, 6 Frame Marker Overlays, built-in Color Bars, Pixel-to-Pixel mode, Blue Gun, and direct access for adjustment and selection functions. Can also be used as a standalone display with HDSDI loop-through.
DETAILED SPECS - MARSHALL V-R261-IMD-HDSDI
HD LCD MONITOR:
