Half-Rack design allows unit to fit in a Tektronix or Leader rackmount cradles. Ideal
for monitoring Leader or Tektronix video and spectrum analyzers.

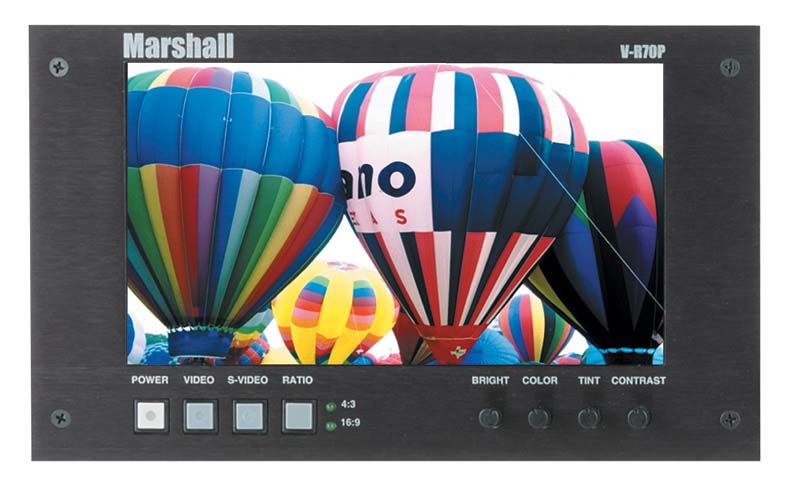

FEATURES - Marshall VR70P Rack Mount Widescreen LCD Panel
The vr70p is the latest of the V-R Series from Marshall Electronics. This unit
is designed to work as a stand alone, camera mounted or rack mounted monitor in
a Leader or Tectronix Rackmount cradle. This unit can accommodate an NTSC
composite video signal, or a S-Video signal. It has front mounted buttons with
LED's and potentiometers for brightness,color, tint, and contrast controls. A
Ratio button allows the unit to switch between 16:9 and 4:3 ratios.Its
10VDC-17VDC power requirements make it ideal for field use and can be powered
from Anton Bauer or similar battery systems by using a special
Marshall adaptor. Like all the V-R Series, this unit is built out of
steel and aluminum for years of durability yet weighs only 1.8lbs making it
ideal for use on top of a camera or camcorder (use optional hotshoe adapter
V-LCD-MT). An SDI version will be available later this year.
