Half-Rack design allows unit to fit in a Tektronix or Leader rackmount cradles. Ideal
for monitoring Leader or Tektronix video and spectrum analyzers.

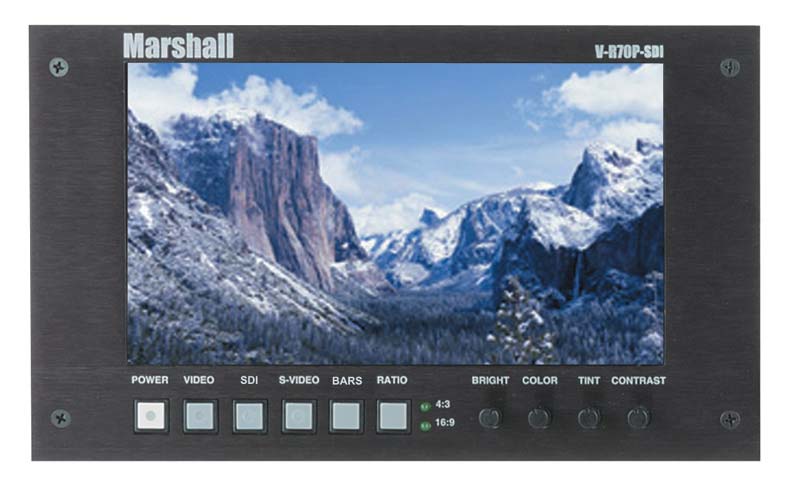

OVERVIEW - Marshall VR70PSDI Rack Mount Widescreen LCD Panel
The vr70psdi is the latest of the V-R Series from Marshall Electronics.
This unit is designed to work as a stand alone, camera mounted or rack mounted
monitor in a Leader or Tectronix Rackmount cradle. This unit can accommodate an
SDI, composite video, or a S-Video signal with an active loopthrough for each.
In addition to the digital and analog loopthroughs, this unit also has a 10-bit
converted output from the digital input. It has front mounted buttons with LED's
and potentiometers for brightness, color, tint, and contrast controls. A Ratio
button allows the unit to switch between 16:9 and 4:3 ratios. Its 10VDC-17VDC
power requirements make it ideal for field use and can be powered from
Anton Bauer or similar battery systems by using a special Marshall
adaptor (V-RPA-XLR), and for convenience, has a standard 1/4-20 mount on
the bottom of the unit. Like all the V-R Series, this unit is built out
of steel and aluminum for years of durability.
