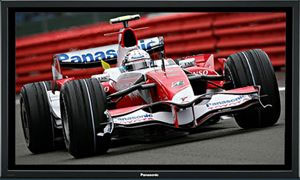

Panasonic TH-50PH10UKA 50 inch HDTV Plasma Tv Screen

No Longer Available

Replaced by Panasonic TH-50PH11UK

Click For Larger Image

OVERVIEW - Panasonic th50ph10uka 50 inch HDTV Plasma Tv Screen:

At 50", the TH-50PH10UKA in an HD plasma that delivers the size and image quality you'll been searching for in a large-screen display. It offers sheer jaw-dropping, full HD resolution image quality to reproduce beautiful, natural-looking images. For versatility, the TH-50PH10UKA offers 3 rear panel multi-function slots and supports a variety of formats, including VGA, SVGA, XGA, SXGA, UXGA and PC signal compatibility.

FEATURES - Panasonic TH50PH10UKA 50 inch HDTV Plasma Tv Screen:

• Resolution 1366 x 768
• Brightness 1,200 cd/m2
• Contrast Ratio (Bright room) Max. 10,000:1 (400:1)
• Equipped with three interchangeable slots-provide flexible and powerful system solution by adding/exchanging wide variety of optional slot-in boards.
• 2 HDMI Inputs
• Includes 5 BNC male to RCA female adapters

SPECIFICATIONS - PANASONIC TH-50PH10UKA HDTV PLASMA SCREEN:

          Display

• Screen Size 50-inch
• Aspect Ratio 16:9
• Effective Display Area (WxH) 43.5" x 24.5"
• Resolution (HxV) 1366 x 768 Pixels
• Pixel Pitch (HxV) 0.810 x 0.810 mm
• Brightness 1200 cd/m2
• Contrast Ratio (Bright Room) Max. 10000:1 (400:1)
• Gradation 3072 steps (equivalent)
• Multi PIP (Picture And Picture, Picture Out Picture, Picture In Picture)

  Signal Compatibility

• Scan Rate Horizontal frequency 15-110 kHz, Vertical frequency 48-120 Hz
• PC Signal Compatibility VGA, WVGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, WSXGA+, UXGA, WUXGA (XGA and over resolution : compressed)
• Supported Video Standards NTSC, PAL, PAL 60, SECAM, Modified NTSC


Input / Output

• PC IN Mini D-sub 15pin x 1 (Female) Analog RGB/Components
• AUDIO IN M3 jack x 1
• SERIAL D-sub 9-pin x 1 (Male) External control, RS-232C compatible


Interchangeable Terminals

• Slot1 Vacant
• Slot2 (TY-FB10HMD) HDMI IN HDMI x 2
• Slot3 (TY-42TM6A) COMPONENT IN AUDIO IN (L/R) BNC x 3 Analog RGB/Components RCA pin jack x 2


  ELECTRICAL

• Power Requirements 120 V AC, 50 Hz/60 Hz
• Power Consumption 505 W
• Power off condition 0.1 W
• Stand-by condition Save OFF 0.6 W, Save ON 0.4 W


SOUND

• Audio Output 16 W [8 W + 8 W] (10% THD)


MECHANICAL

• Dimensions (W x H x D) 47.6" x 28.5" x 3.7"
• Weight approx. 79.4 lbs (36.0 Kg)
• Cabinet Colour Black


ENVIRONMENTAL

• Operating environment
• Temperature 32 °F - 104 °F (0 °C - 40 °C)
• Humidity 20 % - 80 % (Non condensation)
• Altitude 0 - 9,100 feet (0 - 2,800 m)


STORAGE ENVIRONMENT

• Temperature –4 °F - 140 °F (–20 °C - 60 °C)
• Humidity 20% - 90% (Non condensation)
• Altitude 0 - 10,800 feet (0 - 3,300 m)
• EMI REGULATIONS FCC Part 15 Class-B,
  ICES-003 Class B
• SAFETY STANDARDS UL6500 Ver.2


IR REMOTE CONTROL

• Power Requirements DC 3V (2 x AA Size batteries)
• Operation distance approx. 23ft (7m) in front of display
• Weight approx. 4.6oz (130g) including batteries


INCLUDED ACCESSORIES

• Fixing Band x 2
• AC power cord
• Operating instruction book
• Remote control
• Batteries

Manufacturer Homepage: www.panasonic.com
