Samsung 213t
21.3 inch UXGA LCD Computer Monitor
No Longer Available
Back to
Samsung LCD TV Main |
|
 |
SAMSUNG 213T 21.3 inch
UXGA LCD Computer Monitor
|

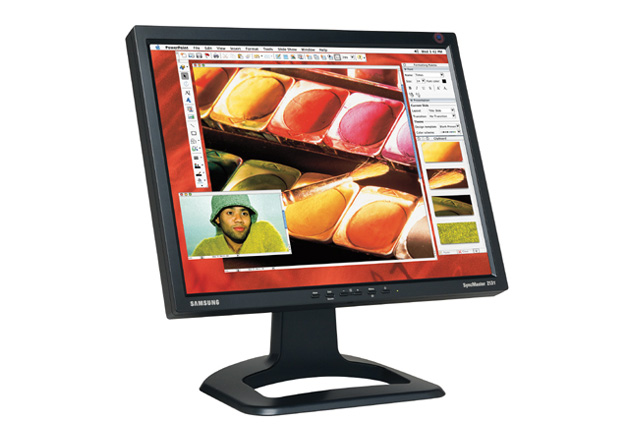

| Click For Larger Image |
|
|
|
OVERVIEW - Samsung 213t 21.3 inch UXGA LCD Computer Monitor: The Samsung SyncMaster 213T defines digital excellence. Your search for the ultimate multi-purpose monitor is over. The high precision SyncMaster TM 213T offers a full 21.3" viewable display, designed to meet any user's needs with ease. Thrill your senses with a digital interface that delivers the highest quality video possible. With both analog and digital input sources, all of your images will be smooth, flicker-free, and crystal clear. The amazing SyncMaster 213T adds flare to any application, and it fits any environment, from corporate to consumer. With Pivot capability, a narrow bezel and an ergonomic design, the SyncMaster 213T is destined to wow you. Check out the monitor that goes one step beyond.
|
|
|
FEATURES - Samsung 213t 21.3 inch
UXGA LCD Computer Monitor:
-
Viewable Image Size: 21.3" -
Brightness (Typical): 250 cd/m2
-
Contrast Ratio: 500:1
-
Response Time: 25ms
-
Viewing Angle (H/V): 170/170 (degrees)
-
Interface: Analog/Digital
-
Horiz. Frequency: 30-93
(kHz)
-
Max/Native Resolution: 1600x1200
-
Emissions Standard: TCO '95
-
Available Color(s): Black
-
Special Features: Narrow Bezel Design, Pivot Technology/Swivel,
Dual CPU Input
|
SPECIFICATIONS - SAMSUNG 213T LCD COMPUTER MONITOR:
|
PANEL |
Type |
a-si TFT/PVA |
|
|
Size |
21.3" |
|
|
Pixel Pitch (mm) |
0.270 |
|
|
Brightness (cd/m2) |
250 cd/m2 |
|
|
Contrast Ratio |
500:1 |
|
|
Viewing Angle |
170 / 170 |
|
|
Aspect Ratio |
4:3 |
|
|
Response Time (ms) |
25 |
|
|
Interface |
Analog/Digital |
|
FREQUENCY |
Horiz. Rate (Analog) |
30-93 |
|
|
Horiz. Rate (Digital) |
30-81 |
|
|
Vertical Rate |
56-75 |
|
|
Bandwidth |
162 MHz |
|
RESOLUTION |
Maximum (Analog) |
1600 x 1200 |
|
|
Maximum (Digital) |
1600 x 1200 |
|
|
Native |
1600 x 1200 |
|
COLOR |
Maximum |
16.7 M |
|
SIGNAL INPUT |
Input Video Signal |
Analog RGB, DVI Digital link |
|
|
Video Level: Analog |
0.7VP-P |
|
|
Video Level: Digital |
TMDSTM |
|
|
Sync Type |
Separate H/V, Composite H/V |
|
|
Input Connectors |
15pin D-sub, DVI-D |
|
PLUG & PLAY |
DDC |
DCC 2B |
|
POWER |
On/Working |
75 Watts (Max) |
|
WALL MOUNT |
VESA |
100mm (wall mount not included) |
|
REGULATIONS |
Safety |
UL 1950, CE, CSA, TUV, IEC 950, NEMKO |
|
|
EMI/Emissions |
FCC, DOC, CISPR22, EMI, EN500821, VCCI, FTZ DIN, VDE |
|
|
Emission Standard |
TCO '95 |
|
CABINET COLOR |
Front/Back |
Black |
|
DIMENSIONS |
Physical (WxHxD) |
18.6" x 18.0" x 8.7" |
|
|
Packaging (WxHxD) |
18.0" x 23.0" x 11.3" |
|
WEIGHT |
Net(Physical) |
18.7 lbs. |
|
|
Gross (packaging) |
25.5 lbs. |
|
FEATURES |
|
Narrow Bezel Design, Pivot Technology/Swivel, Dual CPU Input |
|
INCLUDED |
|
n/a |
|
OPTIONAL |
|
n/a |
|
WARRANTY |
Parts/Labor/Backlight |
3 / 3 / 3 |
|
COMPATIBILITY |
Operating Systems |
Windows
Macintosh
Sun Microsystems |
Manufacturer Homepage: www.samsungusa.com
|
