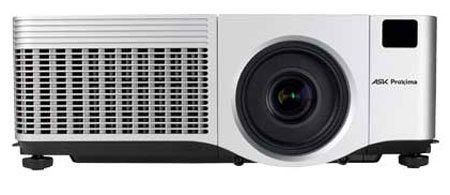

Ask Proxima C500 DLP Video Projector

Ask Proxima C500 Video Projector

Ask Proxima C500 MSRP: ***


The ASK Proxima C500 is a premium digital projector that offers world class power and integration flexibility.

The C500 projector integrates 5000 Max lumens with optional lenses and a full featured connectivity panel. This level of performance is ideal for large conference halls, auditoriums and worship centers which require large, brilliant images with superb clarity.


The C500 delivers 5000 lumens with a precision optical system that includes len shift and a full portfolio of optional lenses. Equipped with HDMI 1.3 and BNC inputs the C500 projector will connect to the latest PCs and supports 1080p video and up to UXGA resolution (1600 x 1200), providing massive images with fine detail.


The C500 features interchangeable lenses to easily fit ultra short-throw rear projection or long-throw installation needs. Horizontal and vertical lens shift make the C500 a flexible projector to integrate. HDMI 1.3 and 5 BNC inputs enable compatibility with all the leading switching and signal routing hardware.

Four "assignable” audio sources allow mix and match pairing of audio with data or video sources. Equipped with RS232 & embedded network control the C500 projector can seamlessly integrate into any infrastructure. Additional features include wireless-compatible architecture for connectivity to InFocus LiteShow II wireless adaptor, (2) x 4.0 watt stereo speakers and a full-featured remote with laser and wired control functionality.


The C500 projector is protected under factory warranty for 3 years from date of purchase. The projector lamp has a 6-month warranty from defect or premature failure.

*not available in the Americas


  • Native 1280 x 800 WXGA Resolution
  • 5000 ANSI Lumens Brightness
  • 1000:1 Contrast Ratio
  • DLP Technology which supports 1080p
  • 16:10 native aspect ratio
  • HDMI 1.3 and RS232 connections
  • Interchangeable lenses
  • Wireless-compatible
  • Weighs 15.7 lbs


Aspect Ratio 4:3 Default, 16:9
Contrast Ratio 1000:1
Data Compatibility VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024), SXGA (1400x1050), UXGA (1600x1200)
Display 0.99" (.025m) polysilicon TFT with micro lens array
Lamp Normal: 275W / 2000 Hours
Eco Mode: 220W / 3000 Hours
Video Compatibility NTSC, NTSC 4.43, PAL, PAL-M,N, PAL60 • SDTV: 525i (480i), 525p (480p), 625i (575i) • HDTV: 750p (720p @ 60Hz), 1125i (1080i @50/60Hz, 1035i @ 60Hz)
Dimensions Height: 5.11 in (12.98 cm)
Length: 12.4 in (31.5 cm)
Width: 16.53 in (41.99 cm)
Weight 15.7lbs / 7.12kg
Control Projector Keypad, Remote, USB, RS-232, 2.5mm Wired Remote, RJ45
Digital Keystone Correction Vertical: +/- 40 deg.
Horizontal: +/- 20 deg.
Audio 4W stereo speakers (2)
Brightness 5000 ANSI lumens (Normal)
4000 ANSI lumens (Eco Mode)
Colour Palette 16.7 million
H-Sync Range 15 ~ 91 kHz
V-Sync Range 50 ~ 120 Hz
Audible Noise Normal: 32 dBA typical
Ships Standard with Regional power cord, vga cable, Navigator-2 presentation remote, Carry Case, Composite A/V cable
Warranty Three-year standard warranty on parts and labour
