Canon REALiS SX60 Ultra-Portable Video Projector

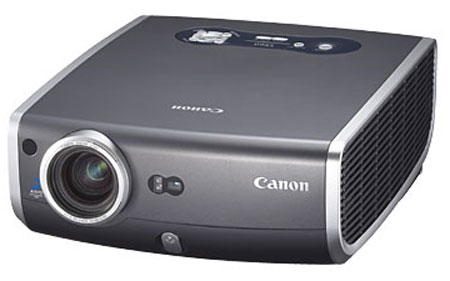

Canon REALiS SX60 Video Projector

Canon REALiS SX60 MSRP: $5,999

Overview

Around the world, Canon products are synonymous with optical excellence, advanced image processing, and superb performance. And Canon projectors are no exception.

The family of Canon projectors includes the REALiS line of bright, high resolution, ultra-portable and affordable projectors. REALiS projectors combine the brilliance and sharpness of innovative LCOS (Liquid Crystal On Silicon) technology with Canon's proprietary AISYS light engine technology. The result is a unique set of advanced projectors that deliver exceptional image quality.

The SX60 features new, advanced AISYS technology - with improved light efficiency, uniformity, and expanded color space. At 2500 ANSI lumens, it is one of Canon's bright, ultra-portable, SXGA+ projectors. With its exceptional level of image quality, it is ideal for demanding professional applications and discerning home cinema buffs. Its 1.7x Ultra-Wide Powered Zoom Lens with Autofocus gives you the flexibility of the widest zoom range of any of Canon's projector lenses. Its super quiet (27dB) operation makes it great for the classroom and home cinema. And, its DVI-I terminal lets you project high quality video from satellite and digital cable boxes, as well as DVD players.

Features

  • Native SXGA+ Resolution (1400 x 1050)
  • LCOS Technology with AISYS
  • 2500 ANSI Lumens
  • Contrast ratio of 1000:1 to 2000:1 (Home Cinema Mode)
  • 1.7x Powered Zoom Lens
  • Super quiet (27dB) operation
  • Realistic Image Quality
  • The Sharpness You Expect
  • Canon Optical Performance
  • Easy To Use Flexibility
  • Versatile Connectivity
  • Advanced Color Management

Specifications

Projector Specifications
Imaging Device 0.7" Reflective LCD Panel (LCOS) x 3
Native Resolution AISYS technology and color matching technology SXGA+
Brightness 2500 ANSI Lumens
Uniformity 88%
Contrast 1000:1
2000:1 (Home Cinema Mode)
180W NSH
Digital Keystone (Vertical) ±20 degrees Vertical & Horizontal Adjustment
Optics
Projection Lens SXGA, WXGA, XGA, SVGA, VGA, HDTV, DTV, (Compressed) UXGA
Lens Shift 8.6:1.4, Fixed
Zoom 1.7X
Screen Size 40 - 300 in.
Throw Distance 3.9 - 29.5 ft./1.2 - 9.m
Input Signals
Scanning Frequency H:15 ~ 75 kHz , V:50 ~ 85 Hz Dot clock: 170 MHz or less
Analog PC Input SXGA, WXGA, XGA, SVGA, VGA, HDTV, DTV, (Compressed) UXGA
Video/S-Video Input NTSC/PAL/SECAM/NTSC4.43/PAL-M/PAL-N
Component Input S-Video, Composite, Component, VGA, DVI-I, Audio, USB, Component 5BNC (with optional accessory), RS-232 (for control systems)
Terminals
(Input) Stereo Mini Jack 1 Stereo Mini Audio, 1 Service Port (DIN 8 Pin)
(Output) Stereo Mini Jack 1 RGB (D-Sub 15 Pin), 1 Stereo Mini Audio
Built-in Speaker Mono
Lamp
Network Yes
Lamp Life 180W NSH
Remote Control
Sensor Wireless remote with illuminated keys
Ratings
Power Consumption(Normal/Quiet/Stand-By) 250W(Normal)/ 225W(Silent)
Power Voltage 100 to 120/200 to 240V AC, 50/60Hz
Temperature Operating 41° to 95&degF (5° to 35&degC)
20% to 80% humidity (non-condensing)
Temperature Storage 14° to 122&degF (-10° to 50&degC)
20% to 80% humidity (non-condensing)
Dimension (WxHxD) 8.9" x 4.5" x 13.2" (226 x 114 x 336mm)
Weight 10.1lbs (4.6kg)
Warranty 3 Years Parts and Labor, 120 Days (Lamp)
