Canon REALiS SX80 Ultra-Portable Video Projector

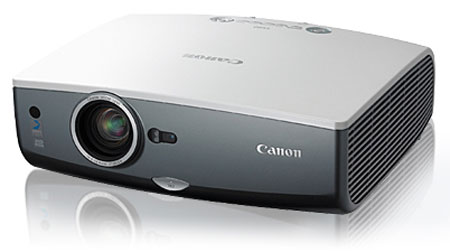

Canon REALiS SX80 Video Projector

Canon REALiS SX80 MSRP: $3,999

Overview

Around the world, Canon products are synonymous with optical excellence, advanced image processing, and superb performance. Canon projectors are no exception. The family of Canon projectors includes the REALiS line of bright, high resolution, ultra-portable and affordable projectors. REALiS projectors combine the brilliance and sharpness of innovative LCOS (Liquid Crystal On Silicon) technology with Canon's proprietary AISYS light engine technology. The result is a unique set of advanced projectors that deliver exceptional image quality.

The REALiS SX80 is an affordable high performance SXGA+ projector, providing greater image quality, resolution, and color reproduction, designed to meet the needs of users in corporate, educational, and specialized fields. This exceptional projector also features new, advanced third generation AISYS technology - with improved light efficiency, uniformity, and expanded color space for extremely accurate color reproduction, delivering razor sharp image quality.

This exceptional projector boasts a wide variety of features that make it a versatile and easy-to-use performer. The REALiS SX80 includes an HDMI terminal for projection of high quality digital images and video, a built-in network port for remote network operation, and a built in USB port for seamless pc-free presentations and PictBridge camera compatibility. Its 1.5x powered zoom lens with autofocus features a 10:0 lens offset, so now the bottom edges of projected images have been made to match the optical axis of the lens.

Containing all the technology needed for superior performance, as well as fast, easy, and quiet operation, the REALiS SX80 delivers more of what you need in a top-line projector.

HDMI Logo

Features

  • Native SXGA+ Resolution (1400 x 1050)
  • LCOS Technology with AISYS
  • 3000 ANSI Lumens
  • Contrast ratio of 900:1
  • 1.5x Zoom Lens
  • Advanced Color Management System
  • HDMI Version 1.3 Deep Color
  • PC Free Presentations and PictBridge
  • Network Ready RJ-45 Port
  • Ease of Use and Flexibility

Specifications

Projector Specifications
Aspect Ratio 4:3
Native Resolution SXGA+ (1400 x 1050)
Brightness 3000 ANSI Lumens
Uniformity 88%
Contrast 900:1
Digital Keystone (Vertical) ± 20 degrees (Auto/Manual)
Optics
Projection Lens F1.95 - 2.6, f=16.6 - 24.8 mm
Lens Shift 10:0; Fixed
Zoom 1.5x Powered, 12x Digital
Focus Powered (Auto/Manual)
Screen Size 40" - 300"
Throw Distance 3.9 - 29.9 ft.
Throw Ratio 1.48 - 2.18:1
Image Adjustments
Color Mode Standard, Presentation, Movie, sRGB
Color Adjust Dynamic Gamma, 6-Axis (RGBCMY) Color Adjustment
Wall Correction Auto / Manual
Mounting Ceiling / Rear / Ceiling and Rear
Tilt Angle Adjusting feet up to 10 degrees
Input Signals
Scanning Frequency H:15 ~ 75 kHz , V:50 ~ 85 Hz Dot clock: 170 MHz or less
Terminals
Built-in Speaker 1W (Mono)
Lamp
Lamp Type 230W NSH (AC)
Lamp Life 2500/2000 Hours
Remote Control
Sensor Wireless Infrared, Front / Back
Ratings
Fan Noise 35/31dB
Power Consumption(Normal/Quiet/Stand-By) 330W (normal) / 270W (quiet) / 15W (stand-by)
Power Voltage AC 100 ~ 240V, 50/60Hz
Temperature Operating 41° to 95°F (5° to 35°C)
Temperature Storage -22° to 104°F (-30° to 60°C), 5%RH ~ 90%RH
Dimension (WxHxD) 13.0" x 4.8" x 13.4" (332 x 121 x 340mm)
Weight 11.5 lbs. (5.2 kg)
Warranty 3 years parts and labor, 120 day lamp warranty
