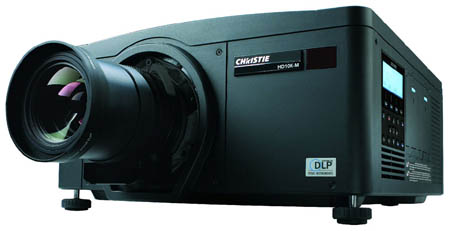

Christie Digital HD10K-M DLP Video Projector

Christie Digital HD10K-M MSRP: ***

Overview

The most compact in its class, the Christie M Series platform provides the high-performance and feature-rich standards expected in all Christie products. Christie delivers brightness, versatility, reliability and affordability in this latest addition to the Christie family of display solutions.

The Christie HD10K-M, at 9500 ANSI lumens (dual lamps, 350W), offers high efficiency and low cost of ownership by drawing a maximum power of 1320W giving you more brightness while using less power.

The Christie HD10K-M has 1920 x 1080 native resolution and a variable contrast ratio of 2500-10,000:1 using dynamic iris (Full on, Full off) / 650:1 ANSI for crisp, detailed images.

The Christie M Series suite of high-quality lenses includes two new zoom lenses – all with true Intelligent Lens System (ILS™) capabilities.

With the consistency of DLP® technology, the Christie M Series offers reliable, affordable, dual- mercury lamp brightness, in the smallest chassis in its class. Combined with the additional standard features, expanded lens suite and world-renowned Christie service, the Christie M Series provides high performance and peace of mind for all users.

Features

• True HD native resolution (1920 x 1080)
• 9500 ANSI lumens (10,450 center lumens)
• Variable contrast ratio of 2500-10000:1 using dynamic iris (Full on, Full off) / 650:1 ANSI for crisp, detailed images.
• At maximum brightness (9500 ANSI lumens), the projector draws a maximum power of 1320W
• Smallest chasis in its class
• Dual Mercury lamps (350W)
• 2 High Definition input channels that allow 4:4:4 HD signals
• Comprehensive Color Adjustment (CCA™)
• Embedded Christie Twist™ Image Warping and Edge-Blending
• Dust sealed engine, filter-free design
• Motorized yellow notch filter
• Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset
• Multi-windowing and screen processing (up to a 3x3 array)
• Dynamic Iris

Uses

• Audience events
• Auditoriums
• Boardrooms
• Conference rooms
• Training rooms
• Broadcast studios
• Houses of worship
• Post-production

Specifications


• Dual Lamp: 9500 ANSI lumens (10,450 center lumens)
• Single Lamp: 4750 ANSI lumens (5225 center lumens)

Contrast

• 2500-10,000:1 uding dynamic iris (full on, full off)
• 650:1 ANSI (typical)

Display Technology and Resolution

• 3-chip 0.95" DLP­®
• HD (1920 x 1080) resolution

Lamp

• Dual 350W PVIP
• High Power: 1500 hrs @ 350W
• Low Power: 2000 hrs @ 300W

Input Signal Compatibility

• HDTV formats VGA through to QXGA (2048 x 1536)
• Accepts all current HDTV/DTV formats
• Multi-standard video decoder
• Horizontal and vertical scaling, all inputs

Scan Rates

• 15 kHz to 120 kHz Horizontal
• 23.97 Hz to 150 Hz Vertical

Pixel Clock

• 165 MHz

Inputs, Controls and Networking

• RS232 In/Out
• RS422 In
• Ethernet (10/100)
• USB Device
• GPIO (RS232 9 Pin male connector)
• Built-in backlit LCD keypad
• Remote Control (with optional wired XLR connection)

Optical System

• Dust sealed, 3-Chip DLP® Light Engine
• Motorized Horizontal and Veritcal Lens Offset
• Scheimpflug (tilt) Adjustment
• Built-in Light Shutter
• Tool-free Lens Insertion System

Lens Options

• 0.67:1 HD Fixed Lens
• 1.1:1 HD Fixed Lens
• 1.16-1.49:1 HD Zoom Lens
• 1.4-1.8:1 HD Zoom Lens
• 1.8-2.6:1 HD Zoom Lens
• 2.6-4.1:1 HD Zoom Lens
• 4.1-6.9:1 HD Zoom Lens
• 6.9-10.4:1 HD Zoom Lens

Lens Offsets

• +/- 120% Vertical
• +/- 42% Horizontal

Standard Accessories

• Analog BNC Input card
• Dual link DVI Input card
• User manual
• IR Remote
• Line cord

Optional Accessories

• Video decoder
• Twin HDMI™ Input card
• Coarse Dust Filter
• Fog Juice Filter
• Ceiling Mount
• Stacking Frame
• Analog BNC Input card
• Dual link DVI Input card
• Dual SD/HD-SDI Input card

Enhanced Feature Sets

• LiteLOC™
• Comprehensive Color Adjustment (CCA™)
• Embedded Christie Twist™ Image Warping and Edge-Blending
• Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset
• Multi-windowing and screen processing (up to a 3x3 array)
• Dynamic Iris
• Menus in five languages
• 99 Channel Memories
• Auto Setup
• Digital Keystone Correction
• Dust sealed engine, filter-free design
• Motorized yellow notch filter

Power Requirements

• 110-240 VAC 50/60 Hz operating voltage
• 13.2 A @100V operating current
• 1320 W power consumption
• 4508 BTU/hr dissipation

Dimensions

• (L x W x H): 22.1 x 19.7 x 10.2" (561 x 500 x 259mm)
• Weight: 55 lb (25 kg)
• Shipping weight: 75 lb (34 kg)
• Shipping dimensions - (L x W x H): 29 x 27 x 20.5" (737 x 689 x 521mm)

Operating Environment

• Temp: 40 to 104° F (5 to 40° C)
• Humidity: 10-80% non-condensing

Regulatory Approvals

• UL/CSA/IEC 60950 (3rd edition)
• FCC Class A, CE, CCC
• This product conforms to all relevant European directives, standards, safety, health and environmental concerns
• RoHS, WEEE

Limited Warranty

• 2 years parts and labor (including light engine)
