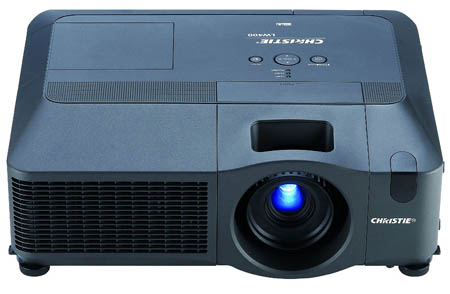

Christie Digital LW400 LCD Video Projector

Christie Digital LW400 MSRP: ***

Overview

The Christie LW400 offers all the features you have been looking for in a business projector, native wide resolution with perfect brightness for a small to medium sized room, in an unobtrusive size, at an affordable price.

The Wide XGA (1280 x 800) resolution is a natural fit to today’s computer resolutions. To keep pace with market demand, the Christie LW400 offers resolution for pixel-to-pixel compatibility with the latest laptops and video sources.

High brightness with 4000 ANSI lumens from a single lamp allows you to keep the lights on during your presentation; keeping your meeting rooms bright for working and note taking.

Weighing less than 16lbs, this compact projector will fit into its surroundings comfortably. The Christie LW400 is perfectly sized for meeting rooms, classrooms, training rooms, executive briefing centers and boardrooms. The sturdy side handle and rugged cabinet provides “grab and go” convenience.

The Christie LW400 utilizes an inorganic 3LCD light engine. This new crystal alignment technology produces a more natural black state to greatly improve black levels for a broader, dynamic range. This advancement enables the Christie LW400 to achieve richer detail in dark video scenes.

The Christie LW400 can be customized to your specific applications. It is configured with 6 standard inputs so this projector will accept signals from a broad range of sources.  Options of four high performance lenses, with a horizontal and vertical lens shift feature, ensures you can position the projector almost anywhere and match the right size image on screen for your specific installation need.

The Christie LW400 is a low cost of ownership projector, competitively priced with a broad range of features. As a single lamp projector, lamp replacements costs with low power demands, only 460W consumption, are reduced making this projector an affordable choice.

The Christie LW400 – the wide, bright and light projector.

Features

• 4000 ANSI lumens provides high brightness
• 1000:1 contrast ratio provides image clarity
• True WXGA native resolution (1280 x 800)
• New inorganic 3LCD light engine design for the darkest black and smoothest imaging
• Sturdy carrying handle and rugged cabinet

Uses

• Boardrooms
• Conference rooms
• Houses of Worship
• Classrooms
• Home entertainment

Specifications


• 4000 ANSI lumens (dual lamp)
• 1000:1 (Full on/off)
• 90% brightness uniformity (corner to center)

Display Technology

• 3 x 0.8” Inorganic LCDs
• Native WXGA 1280 x 800 resolution
• 16:10 aspect ratio

Input Signal Compatibility

• VGA through to UXGA (1600 x 1200)
• NTSC, NTSC 4.43, PAL, PAL M, SECAM, PAL-N, PAL 60
• Supports standard HDTV formats (480i, 480p, 575i, 575p, 720p, 1035i, 1080i, 1080p via digital connection only)

Pixel Clock

• 150 MHz

Scan Rates

• Horizontal - 31.5 kHz to 106 kHz
• Vertical - 56 Hz to 120 Hz

Inputs, Control, and Networking

• Input #1: HDMI x1 (HDCP Compliant)
• Input #2 HD 15 x1 (with HD15 loop through)
• Input #3 BNC x 5 (R,G,B,H,V & Y,Pb/Cb, Pr/Cr & Composite)
• Input #4 Mini DIN 4-pin (S-Video)
• Input #5 YPbPr (component video RCA x3)
• Input #6 composite video (RCA x1)
• Audio input (x4)
• Serial Input – Dsub-9 x 1
• LAN port
• R/C Jack – Mini jack x 1
• Audio Speakers 4W x2

Lamp

• Single 275W UHB
• 2000 hours Normal Mode; 3000 hours Eco mode

Optical System

• Manual zoom, focus and lens shift
• Vertical and Horizontal lens shift - actual range depends on lens used

Standard Accessories

• Wireless/Wired remote unit (two “AA” type batteries and wired cable included)
• User’s manual (CD-ROM and Quick Manual)
• Computer cable (Dsub15-Dsub15)
• AC cord UL type (NEMA 6-20P plug type)
• European 2P plug type

Standard Lens

• 1.5-1.8:1 Zoom Lens

Standard Inputs

• HDMI
• 5BNC
• HD15
• RCA video (component and composite)

Replacement Parts

• Lamp 275W UHB
• Air Filter

Power Requirements

• 100–120V and 200–240V ± 10%
• 950W
• Operating current- 11.2 A max at 100V AC /5.1A max at /200V AC
• Dissipation - 3230 BTU/hr Max

Enhanced Feature Sets

• Customizable Start-up logo
• Digital keystone feature - ± 100 degrees Vertical (Max), ± 10 degrees Horizontal (Max)
• Dynamic iris control for maximum dynamic range with video sources
• Built-in keypad (power on/standby, menu, up, down, left, right arrows)
• Front and rear infrared sensors for
• IR keypad
• Built-in RS232c port
• RJ45 LAN connection with network control

Power Requirements

• Operating voltage: 90–132V and 198–264V ± 10%
• Power Consumption: 460W
• Operating current: 5.0A max @ 100–120 VAC 50/60 Hz; 2.1A max @ 200–240 VAC 50/60 Hz
• Dissipation: 1570 BTU/hr Max

Dimensions

• 15.8 lbs (7.2kg)
• Shipping weight: 25.57lbs (11.6kg) - ships with a standard lens 12.52”D x 16.46”W x 5.47”H (318D x 418W x 139H mm)
• Shipping dimensions: 18.8”D x 21.9”W x 9.6H” (478D x 555W x 244H mm)

Operating Environment

• 41˚F –104˚F (5˚C–40˚C)
• 14˚F –140˚F (-10˚C–60˚C)
• H20-80% (non-condensing)
• 0 to 2700 m / 0 to 8858 Ft
• 37dBA standard mode, 31dBA Eco mode

Regulatory Approvals

• This product conforms to the following regulations related to product safety, environmental requirements and electromagnetic compatibility (EMC)
• FCC Part 15, Subpart B Class B; CISPR22/EN55022; CISPR24/EN55024
• UL 60950-1 First Edition; CAN/CSA-C22.2 No 60950-1-03 First edition;
• 2002/95/EC RoHS

Limited Warranty

• Projector: 3 years parts and labor
• Lamp: 120days/500hrs total operation whichever occurs first
• See Christie standard limited warranty for details
