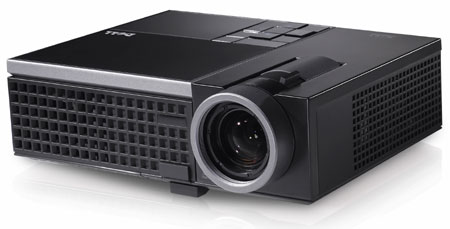

Dell M409WX DLP Ultra Portable Projector
Dell M409WX MSRP: $999
Overview
Ultra-Mobile, Widescreen Projection
At only 2.6 lbs, this portable projector easily goes wherever business takes you. Quickly connect to widescreen laptops and deliver big multi-media presentations in a high-quality 16:10 viewing format. The M409WX offers maximum brightness of 2000 Lumens for effective, lights-on performance.
Note: M409WX does not support ceiling mounting.
DLP® and BrilliantColorTM Technology
Thanks to multi-color processing and BrilliantColor technology, the M409WX offers superior color performance, image accuracy and picture reliability. DLP projectors produce wonderfully vivid color quality. The magic is in the mirrors.
Versatile Connectivity
You’ll be well-connected with the M409WX. Ideal for the highly mobile professional, this versatile projector offers extensive connectivity options – including HDMI, VGA, S-Video and composite video connections. And with flexible rear and front projection using a translucent screen, the M409WX shines in most setting.
Immediate Road Ready Operation
Open the box and then open your eyes to brilliant, widescreen performance. The M409WX is shipped with everything you need to take your show on the road – including projector, soft carrying case, full-featured remote control, power cord, batteries and VGA connection cable.
Features
- High Brightness - Leave the lights on with maximum projector brightness of 2000 ANSI Lumens.
- 1280 x 800 WXGA Resolution - Deliver native 16:10 widescreen format in high-quality WXGA resolution. Auto sync up to 1600 x 1200 UXGA.
- 2000:1 Contrast Ratio (Full On / Full Off) - The 2000:1 (typical) contrast ratio offers deep, rich colors, sharp image quality and easy-to-read text.
- DLP® and BrilliantColorTM Technology - With 16.7 million vibrant colors, the M409WX produces precise, life-like images and superior color performance. The magic is in the mirrors.
- 30 Feet (9 meter)Maximum Screen Projection - From a 39 foot distance (12 meters), the M409WX makes a really big impression.
- Up to 5000 Hours Lamp Life - Reduce cost and maintenance with lamp life up to 5000 hours in quiet-running eco mode.
- Ultra-Portable 2.6 lbs - At only 2.6 lbs (1.18 kg), this lightweight projector is ready for the road.
- Customizable Start-up Logo - Build brand awareness by adding your customized company logo to the start-up.
- Quick Shut Down Feature - Designed to shut down in 10 seconds (prior settings required).
Specifications
| PROJECTION |
CONNECTIVITY |
Brightness:
2000 ANSI Lumens (maximum)
Contrast Ratio:
2000:1 typical (Full on / Full off)
Resolution:
1280 x 800 (WXGA); autosync up to 1600 x 1200 (UXGA) maximum
Uniformity:
80% typical (Japan Standard - JBMA)
Projection Lens:
F-Stop: F/2.44 ~ 2.58
Focal length, f = 21.8 ~ 23.8 mm with manual zoom
Image Size:
76.1 cm to 913.0cm (30.0” to 359.4”)
Projection Distance:
1.0 m to 12.0 m (3.3 ft to 39.4 ft) |
Integrated Video and Audio Ports
VGA
S-Video
Composite Video
Component via VGA
HDMI
Audio-In
Audio-Out |
| LAMP |
VIDEO COMPATIBILITY |
Lamp Life Cycle:
3000 hours (typical); 5000 hours (eco mode)
Lamp Type:
165 watt user-replaceable lamp |
High Definition Multimedia Interface (HDMI)
Component Video via VGA
S-Video
Composite Video
|
| AUDIO |
KEYSTONE CORRECTION |
| 1 speaker, 1 watt RMS (Mono) |
Keystone Correction Direction:
Vertical
Vertical Keystone Correction:
+40/-35°
Horizontal Keystone Correction:
Not available |
SECURITY |
COLOR, SIZE AND WEIGHT |
Kensington® security port (cable lock sold separately)
Password Protection
|
Color:
Black
Dimensions (W x D x H):
7.25 cm (2.85") x 15.5 cm (6.10") x 20.5 cm (8.07")
Weight:
1.18 kg (2.6 lbs)
|
| ELECTRICAL |
ENVIRONMENTAL |
Power:
Universal 90-264 V AC 50-60 Hz with PFC input
Power Consumption Operational:
212 watts (typical); 168 watts (eco mode) |
Temperature Range Operating:
5° C to 35° C (41° F to 95° F)
Temperature Range Non-operating:
0° C to 60° C (32° F to 140° F)
Humidity:
80% (maximum)
Humidity Range Non-operating:
Storage: 90% (maximum)
Sound Emission:
38 dB(A) Full-on mode; 32 dB(A) eco mode |
| COMPLIANCE AND STANDARDS |
WHAT'S IN THE BOX |
| FCC, CE, VCCI, UL, cUL, Nemko-GS, ICES-003, MIC, C-Tick, CCC, PSB, NOM, SABS, eK |
1.8 m power cord (3.0 m in Americas)
1.8 m VGA cable (VGA to VGA)
Carrying case
Remote control
AAA Batteries (2)
CD User's guide and documentation |
|
