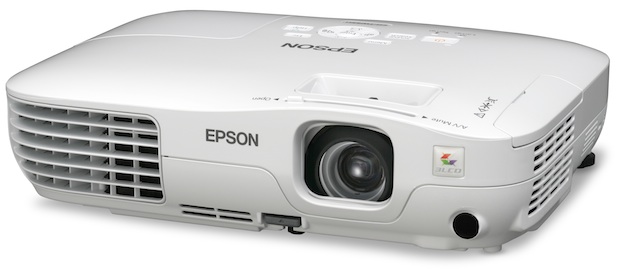

Epson 705HD Home Theatre Video Projector

OVERVIEW

Tthe Epson 705HD Home Theatre Video Projector. Get amazing big-screen entertainment with the Epson PowerLite Home Cinema 705HD. This affordable, 720p, widescreen projector makes it easier than ever to enjoy spectacular movies, games and sporting events in the comfort of your own home. With its 3LCD, 3-chip technology, you get rich, vibrant images for a true cinematic adventure.

And, with 2500 lumens of color and white light output1, images will shine bright in any room. Invite the neighbors over and experience high-def movies in a whole new way. Or, share photos from your computer via the USB connection. With four color modes especially optimized for video, the Home Cinema 705HD is ready for any event. Setup is simple with its 1.2x optical zoom. And, it’s easy for anyone to install. The Home Cinema 705HD is even energy efficient with a long-life E-TORL lamp that lasts up to 5000 hours. That means you save on expenses, without sacrificing quality. So, bring big-screen entertainment home with the Epson PowerLite Home Cinema 705HD.

FEATURES

SPECIFICATIONS

Input Signal

• NTSC/NTSC4.43/PAL/M-PAL/N-PAL/PAL60/SECAM

Display Performance

• NTSC: 480 lines
  PAL: 560 line
  (Depends on observation of the multi-burst pattern)

Interfaces

• Computer/component video:
  D-sub 15 pin x 1
  S-video: Mini DIN x 1
  Composite video: RCA (Yellow) x 1
  Audio in: RCA x 1 (White/Red)
  USB connector: Type A x 1
  USB connector: Type B x 1 (service only)
  HDMI port


Projection System

• Epson 3LCD, 3-chip optical engine

Projection Method

• Front/rear/ceiling mount

Driving Method

• Epson Poly-silicon TFT Active Matrix

Pixel Number

• 1,024,000 dots (1280 x 800) x 3

White Light Output

• 2500 lumens1 (ISO 21118 Standard)

Color Light Output

• 2500 lumens1

Aspect Ratio

• 16:10

Native Resolution

• 1280 x 800

Resize

• 640 x 480 (VGA), 1024 x 768 (XGA),
  1152 x 864 (SXGA), 1400 x 900 (WXGA+),
  1440 x 900 (WSXGA), 1680 x 1050
  (WSXGA+), 1400 x 1050 (SXGA+),
  1600 x 1200 (UXGA)

Throw Ratio Range

• 1.47 – 1.77 (16:10)
  1.77 – 2.12 (4:3)

Projection Lens

• Type
  Manual zoom/Manual focus

• F-number
  1.58 – 1.72

• Focal Length
  16.9 mm – 20.28 mm

• Zoom Ratio
  Optical zoom 1.0 – 1.2


Lamp

• Lamp Type
  200 W UHE (E-TORL™ – Epson Twin Optimized Reflection Lamp)

• Lamp Life2
  Up to 5000 hours (Eco Mode)
  Up to 4000 hours (Normal Mode)

Screen Size: (Projected Distance)

• 27" – 270" (2.8’ – 28.6’)

Keystone Correction

• Automatic
  Vertical: ± 30 degrees

• Keystone Correction Manual
  Vertical: ± 30 degrees

Contrast Ratio

• Up to 3000:1

Color Reproduction

• 16.77 million colors

Sound Output

• 1 W (Mono)

Operating Temperature

• 41 ° to 95 °F (5 ° to 35 °C)

Power Supply Voltage

• 100 – 240 V ±10%, 50/60 Hz

Power Consumption

• 244 W, 3 W standby

Dimension

• Including feet: 11.6" x 9.0" x 3.1"
  Excluding feet: 11.6" x 9.0" x 3.0"

Weight

• 5.1 lb/2.3 kg

Fan Noise

• 34 dB (Normal Mode)
  29 dB (Eco Mode)

Remote Control

• Features
  Source search selection, HDMI, slideshow, USB display, power, aspect, color mode, volume, e-zoom, A/V mute, freeze, menu, page up and down, help, auto, mouse functions


Security

• Kensington®-style lock provision, padlock and security cable hole

Warranty

• Two-year projector limited warranty, Epson Home Service program, Epson PrivateLine® dedicated toll-free support and 90-day lamp limited warranty.

Supplied Accessories

• Power cable, computer adapter, projector remote control, batteries, user manual CD, Quick Setup Sheet, PrivateLine support card, registration card

Manufacturer Page: www.epson.com
