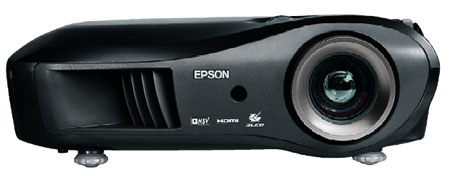

Epson PowerLite Pro Cinema 810 Home Theater Projector

Epson PowerLite Pro Cinema 810 MSRP: $1,599.99

Overview

The Epson PowerLite Pro Cinema 810 features top-of-the-line performance, providing color and detail that is unsurpassed in a home theater projector. Professional in every detail, it's the perfect fit for the ultimate home theater.

The Epson PowerLite Pro Cinema 810 delivers breakthrough image quality and color that's unsurpassed in the world of home theater projectors. Now, you can view movies the way filmmakers intended you to see them. Color settings are optimized for the ITU709 color standard, ensuring the unsurpassed HD quality. The Dynamic Eye Iris control ensures images are rich with blacks in dark scenes and provides all the needed detail to make a crisp, sharp picture. And, innovative Epson 3LCD technology offers a better way to see. You get the best possible cinematic experience, with more accurate color and exceptional detail, even in dark areas of the picture.

With the Epson PowerLite Pro Cinema 810, Epson has blended engineering ingenuity seamlessly with the world of theater and art. Top-of-the-line technologies are hard at work in this projector, giving you the ultimate movie experience. With ISF calibration, you get the purest image possible. And, installers have complete control to custom fit the picture quality to the surrounding environment utilizing 8 ISF programmable modes with individual memory. In addition, the Epson PowerLite Pro Cinema 810 offers seven specialized pre-set color modes for optimum performance, whatever the setting or situation.

Features

• 720p native resolution, 16:9 wide-panel, and HDMI for True High Definition viewing
• Up to 1600 ANSI lumens and 10000:1 Contrast ratio
• New improved lens
• Epson AccuCinema™ Color Management
• Epson 3LCD Technology
• 10 bit color processing
• Dynamic Eye Iris
• Epson Cinema Filter
• Super White Technology
• Noise Shaped Video
• Advanced Horizontal and Vertical Sharpness Adjustment
• Customized Gamma Adjustment
• 6-axis Color Adjustment
• Auto Aspect Ratio
• Black pearlescent / matte finish

Specifications

Projection System

• Shutter Projector System

Projection Method

• Front / rear / ceiling mount

LCD

• Size: 0.7" wide MLA
• Driving method: Poly-silicon TFT Active Matrix
• Pixel number: 1280 x 720 pixels
• Native resolution: 720p
• Aspect ratio: 16:9
• Pixel arrangement: Stripe
• Refresh rate: 50Hz or 60Hz (based on input signal)

Projection Lens

• Type: Manual zoom / focus
• F-number: 2.0 – 3.17
• Focal length: 22.5 – 47.2mm
• Zoom ratio: 1 – 2.1

Lamp

• 170W UHE (Ultra High Efficiency) Lamp / E-TORL

• Lamp Life: 3000H¹ (Color Mode: HD / Silver screen), 1700H¹ (Color Mode: Vivid / Cinema Day / Standard / Natural / Cinema Night)

Optical System

• Dichroic Mirror Separation and Prism Combine Method

Screen Size (Projected Distance) - 16:9 Image

• 16:9

• 100" (wide: 10.5' – tele 22')

Lens Shift Range

• Vertical: 102.3% max (upward and downward)
• Horizontal: 50% max (left and right)

Brightness

• Up to 1600 ANSI lm (Color mode: Vivid)

Contrast Ratio

• Up to 10000:1 (Color Mode: Vivid, Auto Iris On)

Brightness Uniformity (Typical)

• Up to 1600 ANSI lm (Color mode: Vivid)

Color Reproduction

• 10 bit (10 bit input, 10 bit output)

Color Modes

• Vivid, Cinema Day, Standard, Natural, Cinema Night, HD, Silver Screen
• 8 ISF programmable modes with individual memory

Effective Scanning Frequency Range (Analog)

• Pixel clock: 13.5MHz to 110MHz
• Horizontal: 15KHz to 92KHz
• Vertical: 50Hz to 85Hz

Adjustment Function

• Projector Remote: Keystone (Vertical) / Brightnes / Contrast / Tint / Saturation / Input Signal and more
• Tilt angle: 0° to 12.1°

• Keystone correction: Vertical: -15 to +15 degrees

• Epson Cinema filter: Controlled automatically with color mode (ON: Cinema Night / HD / Silver Screen / Natural / Standard, OFF: Vivid / Cinema Day)
• Auto Iris controlled automatically adjusting to video source (available in all color modes; user selectable ON/OFF on OSD)
• Epson Super White controlled automatically adjusting to video source (available in Natural / Cinema Night / HD / Silver Screen, user selectable ON/OFF on OSD)
• Customized Gamma Curve Adjustment: 9 points, adjustable
• Six-Axis Color Adjustment: Hue and saturation for each of RGBCMY
• Advanced Sharpness Adjustments: High-band Enhancement / Low-band Enhancement / H-Sharpness / V-Sharpness
• Manual Focus
• Manual Zoom

Video I/O

• Component Input
  Input signal
  • Video standard: 480i / 480p / 575p / 720p / 1080i
  • Video signal: Component Video (Analog Y level 0.7V 75 ohm / Cr Cb level ±0.35V 75 ohm / sync.negative 0.3V or 3-state± 0.3V on Y)
  • Input
    • RCA x 3 (Red / Green / Blue)
• Composite / S-Input
  Input signal
  • Video standard: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
  • Video signal: Composite Video (1.0Vpp / sync.negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75 ohm)
  • Input Terminal
    • S-Video: Mini DIN 4pin
    • Video: RCA (Yellow) x 1
• SCART Input
  Input signal
  • Video standard: 625i / 525i
  • Video signal: RGB video(0.7Vp-p 75 ohm) ,Sync:CVBS(1.0Vpp / Sync.negative, 75ohm)

RGB

• Analog RGB I/O
  Display performance
  • Native: 720p
  • Resize: 1280 x 1024 / 1280 x 768 / 1360 x 768 / 1024 x 768 / 800 x 600 / 640 x 480 / 480i / 1080i
• Input signal

  • Signal type: Separate Signal
  • Video signal: Analog (0.7V p-p,75 ohm / Mac0.714Vp-p,75ohm)
  • Sync. signal: Separate (positive and negative, bi-polarity 2-5Vpp) Composite (positive and negative,bi-polarity 2-5Vpp) / Sync-on-green (negative,0.3Vpp)
• Input Terminal
  • Video: Mini D-sub 15pin x 1 Blue-molding

HDMI

• Input signal

• Video Standard 575p / 720p / 1080i
• Video Signal TMDS
• Input Terminal: Video HDMI x 1

Control I/O

• Serial I/O
  • I/O terminal: Mini D-sub 9 pin
  • I/O signal: RS-232c

Lock Function

• Control Panel Operation Lock , Power Button Child Lock

Operating Temperature

• 41°F to 95°F (5°C to 35°C)
• Cool-down period: Approx. 30 seconds
• Start-up period: Approx. 10 seconds
• Operating Altitude 7500 ft.

Power Supply Voltage

• 100-240 VAC ±10%, 50/60Hz, 2.7 to 1.2A

Power Consumption

• 120V
  • Lamp ON: 245W (Lamp high), 200W (lamp low)
  • Standby: 4W

Dimensions

• 12.2"D x 16"W x 4.9"H (excludes lens and feet)

Weight

• Approx. 11.9 lb / 5.4kg

Fan Noise

• Vivid color mode: 33dB
• Color modes: HD / Silver Screen: 26dB

Remote Control Infrared Receiver Range and Directivity

• 30 feet range; Right/Left : -30 to +30 degrees; Upper/Lower : -30 to +30 degrees

Warranty

• 2 year parts and labor limited warranty, 90-day lamp warranty, Epson HomeService Program and Epson PrivateLine dedicated toll-free support (U.S. and Canada only)

Accessories in the Box

• Power cord: 3m, Remote control: Stick type, Battery: AA x 2, User's manual, PrivateLine card / PrivateLine card holder; Notices Included in the User's Guide: FCC Compliance Statement, Declaration of Conformity, Important Safety Information, Remote Control Information, Limited Warranty (US & Canada)
