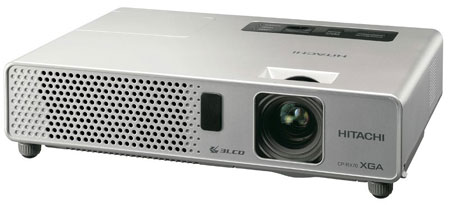

Hitachi CP-RX70 Ultra Portable 3LCD Video Projector
Hitachi CP-RX70 MSRP: ***
Overview
Built for portability and performance the CP-RX70 weights just 1.7Kg. Combining a short throw lens, low noise level and Quick Start function, this compact projector can be used in a variety of ways fitting perfectly into any environment.
Features
- Brightness 2,000 ANSI lumens
- Contrast ratio 500 : 1
- Aspect ratio Native 4:3
- Resolution 1024 x 768
- Quick start (4 seconds)
- Low noise level 29dB
- Weighs only 3.8 lbs
Specifications
| Optical |
| LCD Panel |
0.63" P-Si TFT x 3 with micro lens |
| Resolution |
XGA: 1024 dots x 768 lines |
| Brightness |
Normal Mode 3500 ANSI Lumens
Eco Mode 3000 ANSI Lumens |
| Contrast Ratio |
500:1 |
| Lens |
F1.7~1.9 (f=19.2~23.0mm), Manual x 1.2 zoom |
| Lamp |
UHB160W |
| Projection Distance |
0.9 ~ 9.1 m (WIDE), 1.1 ~ 10.9 m (TELE) |
| Distance to Width Ratio (:1) |
1.5 (WIDE), 1.8 (TELE) |
| Diagonal Display Size |
30 ~ 300" (60" @1.8m, Wide) |
| Number of colors |
8 Bits/colour, 16.7M colours |
| Keystone |
Vertical 10:0 ~ 1:1, Horizontal 6:4 ~ 4:6 at Vertical 1:1 (Standard Lens) |
| Compatability |
| Computer Compatibility |
IBM Compatible VGA, SVGA, XGA, SXGA
MAC 16" (Pixelworks Chip) |
| Video Compatibility |
NTSC/PAL/SECAM/PAL-M,N/NTSC4.43
SDTV: 525i(480i), 525p(480p), 625i(576i)
HDTV: 750p (720p@60Hz), 1125i(1080i@50/60Hz) |
| Plug & Play |
DDC2B |
| Frequency Range |
FV 56~120Hz, FH 31.5~106kHz |
| Features |
| Speakers |
7W Mono |
| Other |
Vertical Digital Keystone Correction: ±30degrees (Note: Input signal is XGA @ 60Hz, Zoom position is wide max.), Auto vertical digital keystone correction: ±30degrees, Mirror reverse image, Up-side down image, Freeze, Magnify, Blank, Digital gamma correction, Colour temperature Adjustment, Picture mode (Normal, Cinema, Dynamic, Board (Black), Board (Green), Whiteboard), Progressive (Video/ S-Video signal, Component video of 525i(480i), 625i(576i)), 2-3 Pull Down for NTSC, Video noise reduction, Overscan (Video, S-Video, Component signal), Resolution setting, Frame Lock, Audio ports assign, Source naming, Quick start (3 Seconds), Instant off, Auto signal search, Audio pass through, daytime mode, resolution setting, My Text, MyScreen PIN-Lock, Transition detector, PIN Security Lock. |
| OSD Languages |
17 Languages |
| Connections |
| Computer Input |
15pin Mini-Dsub x 2 |
| Video Input |
Composite x 1, S-Video Jack x 1
Component x 1 (shared with D-sub1) |
| Audio Output |
Stereo Mini Jack x 1 |
| Power |
| Power Supply |
90~132/198~264V, Auto Switching |
| Power Consumption |
250W |
| Physical |
| Dimensions (W x H x D) |
274 x 59 x 205mm (excluding feet and extrusions) |
| Weight |
1.7kg (3.8lbs) |
| Noise Level |
29dB (Whisper Mode)/35dB (Normal Mode) |
| Air Filter |
MU03602 |
| Certification |
| Certification |
UL/c-UL, FCC Part 15, Class B, AS/NZS CISPR22 Class B, CE |
| Miscellaneous |
| Miscellaneous |
Lamp indicator light, Power light, Ceiling Mount image, Rear Projection Image |
| Accessories Supplied |
| Accessories Supplied |
Remote Control with batteries, RGB Cable, Power Cord, Softcase, Lens Cap (& strap), Quick Guide |
| Optional Accessories |
| Replacement Lamp |
DT00781 |
|
