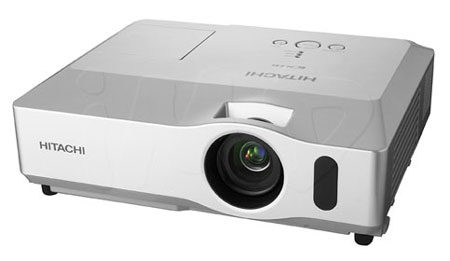

Hitachi CP-X300 3LCD Video Projector
Hitachi CP-X300 MSRP: $2,595
Overview
The Hitachi CP-X300 is a 2600 ANSI Lumen desktop video and data projector, perfect for high end business or education use. The CP-X300 includes many advanced security and video enhancement features along with an impressive brightness and low fan noise - all at an affordable price.
Features
- 2600 ANSI Lumens
- 500:1 Contrast Ratio
- Native Resolution 1024 x 768 XGA
- Quick Start and Instant Off
- Anti Theft Features: Pin-lock, My Screen Lock, Transition Detector
- Whiteboard Mode and Blackboard Mode
- Full Connectivity
Specifications
| Optical |
| Optical |
| LCD Panel |
0.63"P-Si TFT x 3 with micro lens |
| Resolution |
XGA: 1024 dots x 768 lines |
| Brightness |
Normal Mode 2600 ANSI Lumens
Whisper Mode 2100 ANSI Lumens |
| Contrast Ratio |
500:1 (typ) |
| Lens |
F1.7~1.9 (f=19.5~23.4mm) Manual Focus, Manual Zoom x 1.2 |
| Lamp |
220W UHB |
| Lamp Life |
2000 (normal)
3000 (eco) |
| Projection Distance |
0.9 ~ 13.5m |
| Distance to Width ratio (:1) |
1.5 (WIDE), 1.8 (TELE) |
| Diagonal Display Size |
30 ~ 300" (60" @1.8m, Wide) |
| Number of Colours |
8 Bits/colour, 16.7M colours |
| Keystone Correction |
10:1 upward shift, fixed |
| Compatability |
| Computer Compatibility |
IBM Compatible VGA, SVGA, XGA, SXGA/SXGA+, UXGA Capability, MAC 13", MAC 16" (Pixelworks chip) |
| Video Compatibility |
NTSC/PAL/SECAM/PAL-M,N/NTSC4.43 SDTV: 525i(480i), 525p(480p), 625i(576i) HDTV: 750p (720p@60Hz), 1125i(1080i@50/60Hz) |
| Plug & Play |
DDC2B |
| Frequency Range |
FV 56~120Hz, FH 31.5~106kHz |
| Features |
| Speakers |
7W Mono |
| Other |
Freeze, Magnifying, Blank, Auto adjustment, Search, Page UP&DOWN (for USB mouse function), etc. Equalizing Gamma Correction, 2-3 pull down, Progressive Scan, Noise Reduction etc. Auto V keystone +/-30 degrees (@XGA 60Hz), NO Horizontal keystone, MyScreen, My Memory, My Button, blackboard/whiteboard mode, Day Time mode, input source naming (english), resolution setting, Closed Caption (for North America only), My Text function (English) Audio Pass Through, AV Mute in My Button, Template Mode, Saving mode, Easy Lamp replace from Top, Air Filter on Side, Quick ON (4 sec), Direct ON, Direct Off, PIN-Lock, MyScreen PIN-Lock, Keypad Lock, kensington slot, Transition Detector, Security Bar, Serial Number label on side. |
| OSD Languages |
MENU : 17 Language |
| Connections |
| Computer Input |
15pin Mini-Dsub x 2 |
| Computer Output |
15-pin Mini D-sub x 1 |
| Video Input |
RCA Jack x 1
S-Video Jack x 1
RCA Jack x 3 for Component
15pin D-Sub x 1 for RS232 and mouse control |
| Audio Input |
Stereo Mini Jack x 2
RCA (L/R) x 1 pair
(Selectable on OSD) |
| Audio Output |
Stereo Mini Jack x 1 |
| Control and Mouse |
9-pin D-sub x 1 for RS232 control USB type B x 1 for mouse control |
| Power |
| Power Supply |
AC100-120/220-240 V Auto Switching |
| Power Consumption |
320W |
| Physical |
| Dimensions (W x H x D) |
340 x 100 x 270mm (excluding feet and extrusions) |
| Weight |
4.0Kg (Target)/8.8lbs |
| Noise Level |
35dB/29dB |
| Air Filter |
MU04951 |
| Miscellaneous |
| Miscellaneous |
Lamp indicator light, Power light, Ceiling Mount image, Rear Projection Image |
| Certification |
|
UL60950/C-UL, FCC Part 15 Class B, 'CE, AS/NZS CISPR22 Class B |
| Accessories Supplied |
| Accessories Supplied |
Remote Control with batteries, RGB Cable, Power Cord, Softcase, Lens Cap (& strap), Quick Guide |
| Optional Accessories |
| Replacement Lamp |
DT00841 |
|
