Hitachi CP-X305 3LCD Video Projector

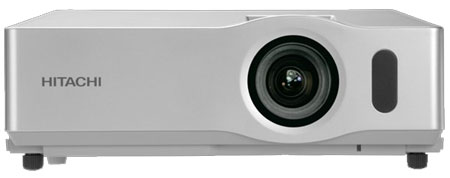

Hitachi CP-X305 Video Projector

Hitachi CP-X305 MSRP: $2,995


The CP-X305 3LCD projector offers high brightness, advanced connectivity and portability, bringing a new level of versatility to educators. The CP-X305 features a brightness of 2,600 ANSI lumens at a weight of 8.8 pounds, and also offers advanced networking connectivity through an RJ-45 port.

The CP-X305 also offers unmatched clarity, with XGA (1024 x 768) resolution and a 4:3 aspect ratio. The CP-X305 features two RGB inputs, MyScreen/MyMemory preset options, and a remote control with Hitachi’s “MyButtons” function. The CP-X305 contains a low 29dB noise rating (in Whisper Mode), 1:1.2 manual zoom, and digital keystone correction.

Additionally, the CP-X305 addresses the issue of equipment theft in schools, as it is equipped with a security bar, Kensington security slot and transition detector (a sensor located inside the projector that recognizes when the projector has been moved). A 7-watt audio output enables a complete audio/video presentation.


  • 2,600 ANSI Lumens
  • Native XGA Resolution
  • 8.8 lbs
  • 2 RGB inputs - 1 RBG Output
  • Component / Composite/ S-Video Inputs
  • 7 Watt Audio Output
  • Digital Gamma Correction
  • 29dB (Whisper Mode)
  • Side-Mounted High Performance Filter
  • My Screen/ My Memory
  • Whiteboard Mode
  • Blackboard Mode
  • Approx. 3,000 hrs (Whisper Mode)
  • Kensington Slot and Security Bar
  • Progressive Scan
  • Audio Input/Output
  • Input Source Naming
  • Remote Control with My Buttons
  • Network Control, Maintenance and Security


LCD Panel 0.63"P-Si TFT x 3 with micro lens
Resolution XGA: 1024 dots x 768 lines
Brightness Normal Mode 2600 ANSI Lumens
Whisper Mode 2100 ANSI Lumens
Contrast Ratio 500:1 (typ)
Lens F1.7~1.9 (f=19.5~23.4mm) Manual Focus, Manual Zoom x 1.2
Lamp 220W UHB
Lamp Life 2000 (normal)
3000 (eco)
Projection Distance 0.9 ~ 13.5m
Distance to Width ratio (:1) 1.5 (WIDE), 1.8 (TELE)
Diagonal Display Size 30 ~ 300" (60" @1.8m, Wide)
Number of Colours 8 Bits/colour, 16.7M colours
Keystone Correction 9:1 upward shift, fixed
Computer Compatibility IBM Compatible VGA, SVGA, XGA, SXGA/SXGA+, UXGA Capability, MAC 13", MAC 16" (Pixelworks chip)
Video Compatibility NTSC/PAL(-BGDHI)/SECAM/PAL-M,N/NTSC4.43 SDTV: 525i(480i), 525p(480p), 625i(576i) HDTV: 750p (720p@50/60Hz), 1125i(1080i@50/60Hz)
Plug & Play DDC2B
Frequency Range FV 56~120Hz, FH 31.5~106kHz
Audio Output 7W Mono
Other Freeze, Magnifying, Blank, Auto adjustment, Search, Page UP&DOWN (for USB mouse function), Equalising Gamma Correction, 2-3 pull down, Progressive Scan, Noise Reduction, Auto V keystone +/- 30 degrees (@XGA 60Hz), MyScreen, My Memory, My Button, blackboard/whiteboard mode, input source naming (english), resolution setting, Easy Lamp replace from Top, Easy Filter Change with sliding system, Quick ON, Direct ON, Direct Off, PIN Lock, MyScreen PIN lock, Keypad Lock, Kensington slot, Transition Detector, Ceiling Mount
OSD Languages MENU : 17 Language
Computer Input 15pin Mini-Dsub x 2
Computer Output 15-pin Mini D-sub x 1
Video input RCA Jack x 1
S-Video Jack x 1
RCA Jack x 3 for Component
Audio Input Stereo Mini Jack x 2
RCA (L/R) x 1 pair
(Selectable on OSD)
Audio Output Stereo Mini Jack x 1
Control and Mouse 9-pin D-sub x 1 for RS232 control USB type B x 1 for mouse control
Networking Controlling & Monitoring, WEB control, e-shot, scheduling function (RJ-45). 302.11b/g Wireless presentations, control & monitoring, web control SD wireless control card included
Power Supply 100-120V/220-240V auto switching
Power Consumption 320W
Dimensions (W x H x D) 340 x 117 x 270mm (excluding feet and extrusions)
Weight 4Kg (8.8lbs)
Noise Level 35dB/29dB
Air Filter MU04951
Miscellaneous Lamp indicator light, Power light, Ceiling Mount image, Rear Projection Image
Certification UL60950/C-UL, FCC Part 15 Class B, 'CE, AS/NZS CISPR22 Class B
Accessories Supplied
Accessories Supplied Power cord, CP-X306W: (US cord, 3m) x 1, (UK cord, 3m) x 1 and (Euro cord, 3m) x 1, CP-X306E: (UK cord, 3m) x 1 and (Euro cord, 3m) x 1, CP-X306U: (US cord, 3m) x 1, RGB Cable (2m) x 1, RCA Video/Audio Cable (3 m) x 1, Wireless Remote Control Unit x 1, AA Batteries x 2, Soft case x 1, Lens cap x 1, Strap x 1, Security Label x1, User’s Manual (Operating Guide, Network Guide, Safety Instructions x 1 (on a CD-ROM), User’s Manual (Concise) x 1
Optional Accessories
Replacement Lamp DT00841
