Hitachi CPX5 Ultra Portable 3LCD Video Projector

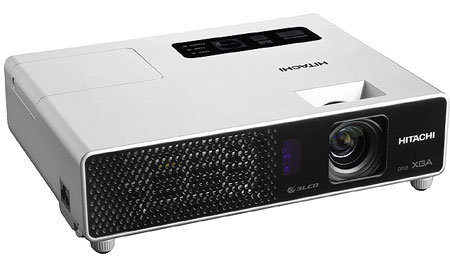

Hitachi CPX5 Video Projector

Hitachi CPX5 MSRP: $2595


The CPX5 is an ultra portable projector for the business consumer who is always "on the go". Combining stunning features with powerful performance in a lightweight and compact design, the CPX5 delivers whichever way you look at it.

Weighing in at only 3.9 lbs the CPX5 3LCD projector provides an optimal combination of portability and power, boasting a brightness of 2,500 ANSI lumens. Additionally, the CPX5 features a wide-angle lens, allowing presenters to place the projector close to the screen to avoid obstruction of the image. The CPX5 also contains a USB reader, which simplifies the connection process by eliminating the need to connect a laptop to the projector. The CPX5 offers advanced security features including a transition detector and password protection. Other features include automatic vertical keystone correction, quick start, and a variety of resolution options.


  • Aspect ratio Native 4:3
  • Resolution 1024 x 768
  • Brightness 2,500 ANSI lumens
  • Contrast ratio 500 : 1


LCD Panel 0.63"P-Si TFT x 3
Resolution XGA
Brightness 2000 ANSI Lumens (Normal)
1500 ANSI Lumens (Eco)
Contrast Ratio 500:1
Lens Manual x 1.2 zoom
Lamp UHB190W
Focus Distance 0.8~7.8m (WIDE), 0.9~9.3m (TELE)
Distance to Width Ratio (:1) 1.3 (WIDE), 1.5 (TELE)
Diagonal Display Size 30"~300" (1.5m@60")
Computer Compatibility IBM Compatible VGA, SVGA, XGA, SXGA/SXGA+, UXGA Capability, MAC 16" (Pixelworks chip)
Video Compatibility NTSC/PAL/SECAM/PAL-M,N/NTSC4.43
SDTV: 525i(480i), 525p(480p), 625i(576i)
HDTV: 750p (720p@60Hz), 1125i(1080i@50/60Hz)
Plug & Play DDC2B
Frequency Range FV 56~120Hz, FH 31.5~106kHz
Keystone Correction 6:1 upward shift, fixed
Digital Keystone Auto V keystone
Speakers 1 x 1W
Other: Other: Variable Colour (R, G, B individual), MENU : 17 Language (English, French, German, Spanish, Italian, Norwegian, Dutch, Japanese, Portuguese, Simplified Chinese, Korean, Traditional Chinese, Swedish, Russian, Finnish, Polish, Turkish), Freeze Function, Magnifying, Digital gamma correction, My Memory, Auto configuration (H-Phase, H-Size, Position), PIN Lock system, Transition detector, MyScreen, Easy Operation : Quick On ,Direct Off, Quick ON, Blackboard mode, Whiteboard mode, Input source naming
Computer Input 2 x 15-pin Mini D-sub
Video Input 1 x Composite
1 x S-Video Jack
1 x Component (shared with D-sub 1)
Audio Input 3 x Stereo Mini Jack
Audio Output 1 x Stereo Mini Jack
Control & Mouse USB type B x 1 for mouse control
USB type A x 1 for PC-less presentation -
Power Supply 100~120/220~240V
Power Consumption 310W
Dimensions (W x H x D) 274 x 59 x 205mm (excluding feet and extrusions)
Weight 1.7Kg
Noise Level TBC
UL 60950-1/ cUL, FCC Part15 subpart B class B. CE approval, EN61000-3-2, EN61000-3-3, EN55022, EN55024, EN60950-1, Low voltage directive, WEEE. Other AS/NZS CISPR22 class B
Miscellaneous Lamp Indicator Light, Power Indicator Light, Temp Indicator Light, Ceiling Mount Image, Rear Projection Image
Accessories Supplied
RGB Cable, Remote Control, Batteries, Power Cord, Safety Instruction, Quick Guide, 14 Languages User Manual (English, French, German, Spanish, Italian, Norwegian, Dutch, Portuguese, Simplified Chinese, Korean, Swedish, Russian, Finnish, Polish), Soft Sase
Optional Accessories
Replacement Lamp DT00821
