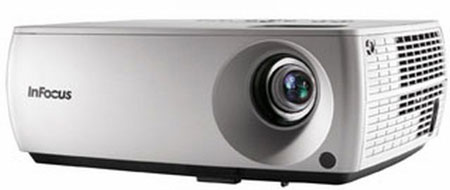

InFocus Work Big IN2102 DLP Portable Video Projector
InFocus IN2102 MSRP: $599
Overview
The Work Big IN2102 projector contains an outstanding feature-set and strong performance with SVGA-native resolution of 800x600. This model is ideal for users who typically connect to older computer sources, DVD players, Standard-definition video cameras or other tape-based video content which fall within the SVGA pixel range.
The InFocus IN2102 DLP® projector with BrilliantColor™ technology and 5 segment color wheel displays realistic colors and brighter images that last.
Performance
Powered by 2500 Lumens, the IN2100 series project bright images in high ambient light environments. The 2000:1 contrast ratio preserves detail in dark images.
The lamp lasts up to 3000 hours and when necessary can be quickly changed without removing an installed projector from the ceiling
Connectivity & Control
Advanced connectivity choices include multiple computer and audio inputs – so it’s easy to switch between presenters; a Wireless-Ready port for an easy upgrade to InFocus’ LiteShow II, for a less expensive ceiling mounted installation; RS232 port for integration with industry -standard meeting room control systems.
Reliability & Security
The IN2100 projectors are dust-free systems. There aren’t any fan filters or lamp screens to change, which makes for 24x7 certified operation, providing around the clock, maintenance free projection.
Security – Kensington lock and PIN code feature will keep the projector in the proper location and under authorized use.
Features
- 2500 ANSI Lumens
- 2000:1 Contrast Ratio
- Native 800 x 600 SVGA Resolution
- 4:3 Native Aspect Ratio
- Weighs 3.1 kg / 6.9 lbs
- Dust-free systems (fan filters or lamp screens to change)
- Kensington lock and PIN code
Specifications
| Display |
| Native Aspect Ratio: |
4x3 |
| Supported Aspect Ratio: |
16:9, 4:3, 5:4 |
| Brightness: (max ANSI lumens) |
High Bright: 2500 Lumens
Eco Mode: 1800 Lumens |
| Contrast Ratio: |
2000 : 1 Full On/Full Off |
| Display Technology: |
DLP by Texas Instruments: 0.55" SVGA LVDS DDP2230 with Brilliant Color |
| Data Compatibility: |
VGA (640x480), SVGA (800x600), XGA (1024x768) |
| Video Compatibility: |
Full NTSC, PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i |
| Color Wheel (DLP Only): |
5-segment |
| Native Resolution: |
SVGA |
| Projector Placement: |
Ceiling Projection, Front Projection, Rear Projection |
| SMPTE Brightness: |
Not Available |
| Lamp Wattage: |
High Bright: 200 Watts
Eco Mode: 170 Watts |
| Lamp Life: |
Whisper: 2500 Hours
High Bright: 3000 Hours |
| Minimum Image Size: |
2.00 ft (0.61 m) |
| Maximum Image Size: |
19.98 ft (6.09 m) |
| Standard Lens Zoom: |
1.1 : 1 |
| Standard Lens Throw Ratio: |
1.97 - 2.16 (Distance/Width) |
| Standard Lens Image Offset Ratio: |
115% |
| Standard Lens Projection Distance: |
3.93 - 32.80 ft (1.2 - 10 m) |
| Digital Keystone Correction (Vertical): |
+20°/-20° |
| Digital Keystone Correction (Horizontal): |
Not Available |
| Lens Shift: |
Not Available |
| Inputs and Outputs |
| DVI: |
Not Available |
| M1: |
Not Available |
| HDMI: |
Not Available |
| BNC: |
Not Available |
| Component (RCA): |
Number of Inputs: 2
requires optional VGA to Component adapter. |
| VESA (HD15): |
Number of Inputs: 2
15-pin VGA |
| S-Video: |
Number of Inputs: 1
4-pin mini-DIN |
| Composite (RCA): |
Number of Inputs: 1 |
| Standard Definition TV: |
Composite RCA, S-Video |
| Enhanced Definition TV: |
VGA |
| High Definition TV: |
VGA |
| Computer: |
VGA |
| HDCP Support: |
Yes |
| Stereo RCA Jacks Inputs: |
No |
| Stereo 3.5 mm Mini-jack Inputs: |
Yes |
| 12v trigger for motorized screens (3.5 mm mini-jack): |
No |
| Projector Control: |
Projector Keypad, Remote, USB, RS-232 |
| Speakers: |
2.0 Watt mono speaker |
| Monitor Output: |
Yes |
| Audio Output: |
3.5mm mini-jack output for computer and video |
| Compatibility |
| Data Compatibility: |
VGA (640x480), SVGA (800x600), XGA (1024x768) |
| H-Sync Range: |
31 - 79kHz |
| V-Sync Range: |
50 - 85Hz |
| Video Compatibility: |
Full NTSC, PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i |
| General |
| Audible Noise: |
35 dB |
| Actual Dimensions: |
Height: 4.3 in (10.92 cm)
Length: 9.5 in (24.13 cm)
Width: 11.7 in (29.72 cm) |
| Actual Weight: |
6.9 lbs (3.13 kg) |
| Shipping Dimensions: |
Height: 9.4 in (23.88 cm)
Length: 13 in (33.02 cm)
Width: 16.5 in (41.91 cm) |
| Shipping Weight: |
11.6 lbs (5.26 kg) |
| Projector Warranty: |
2 years |
| Lamp Warranty: |
6 months |
| Accessories Warranty: |
90 days |
Operating temperature:
(at sea level) |
41 - 88° F (5 - 31.11° C) |
| Maximum Altitude Supported: |
10000 ft (3048 m) |
| Typical Power Consumption: |
220 Watts |
| Maximum Power Consumption: |
250 Watts |
| Power Supply: |
100 - 240 Volts at 50 - 60 Hz |
| Menu Languages: |
English, French, German, Italian, Korean, Norwegian, Portuguese, Russian, Simplified Chinese, Spanish, Traditional Chinese, Swedish, Dutch, Polish, Turkish, Danish, Finnish |
| Approvals: |
UL and c-UL (US/Canada), FCC-A (US/Canada), CE (CE member countries), GOST (Russia), TUV GS (Germany), CCC (China), IRAM (Argentina), NOM (Mexico), C-Tick (Australia), MIC & eK (South Korea), PSB (Singapore) |
|
