Mitsubishi HC1600 DLP 720p Home Theater Video Projector

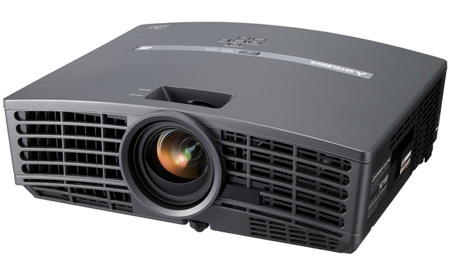

Mitsubishi HC1600 Video Projector

Mitsubishi HC1600 MSRP: $1,495

Overview

The Mitsubishi HC1600 DLP projector is a high definition 720P home theater projector that offers Mitsubishi HD projector technologies at an affordable price. You’ll see true HD images with 1700 ANSI lumens, 2500:1 contrast, native 720P format display, and quiet operation. It’s a very affordable way to turn your home theater room into a virtual stadium, cinema, or studio.

BrilliantColor™ Technology Boost Mid Tones for Truer Color
The HC1600 home theater projector brings you more realistic and lifelike images with Texas Instruments BrilliantColor and a seven segment color wheel. BrilliantColor technology utilizes a color-processing algorithm and system level enhancements to enable higher brightness while providing truer and more vibrant colors. The technology enables a greater brightness increase in mid-tone images in HD projection.

All You Want in Set Up and Performance
From source to screen, we make sure you get a pure connection with a choice of HDMI or component cable connectors and true 10-bit processing. The 720p HDTV format brings you 720 lines of vertical resolution transmitted at one time, as opposed to interlaced formats, so your HD projector can produce more clarity for fast motion events such as sports. Mount it on a wall or place it on a table, then square the picture with digital keystone correction if needed.

Installation Flexibility and Low Cost of Ownership
The HC1600 DLP projector operates at a hushed 25dBA (low mode) noise level so you can sit back and enjoy your movies, sports, and TV without any distracting fan noise. For flexible installation options this HD projector weighs only 6.5 lbs and includes both vertical and horizontal digital keystone correction. It also includes an RS-232 connection for remote projector control with a long 3000 hours (low mode) lamp life and it’s backed by a 1-years parts and labor warranty.

Features

  • Native 1280 x 720 Resolution (720P)
  • 1700 ANSI lumens
  • 2500:1contrast ratio
  • Native 16:9 aspect ratio
  • Exclusive Mitsubishi BrilliantColor technology
  • Lamp life up to 3000 hours
  • Ultra-hush 25dBA noise level (low mode)
  • Weighs 6.5 lbs

Specifications

Display
Imaging Technology 0.62", 1-Chip DMD, 12 deg. LVDS, DarkChip2 DDP3020
Brightness/Lumens 1700 ANSI Lumens
Native Resolution 1280 x 720
Maximum Resolution 1280 x 1024
Viewable Size 40-275 inches diagonal
Contrast Ratio 2500 : 1 (on/off)
Color Wheel 5-segment (RGBWY)
Lens
Lens Throw Ratio 1.6- 2.0
Zoom & Focus Adjustment Manual Focus & Zoom Lens
Compatibility
PC, MAC Compatibility Yes
Operation
Scanning Frequency [H] 15 - 80 kHz, [V] 50 - 85 Hz, [Dot Clock] max 110 MHz
Interface
NTSC, PAL, SECAM NTSC, PAL, SECAM: 480i/p(525i/p), 576i/p(625i/p), 720(750p 50/60Hz), 1080i (1125i 50/60Hz), SCART (RGB + 1V sync)
Computer/Video Input Support RGB: Mini D-sub 15pin x 1, HDMI x 1, Video: RCA x 1, S-VIDEO x 1, RCA (Y, PB/CB, PR/CR) x 1
Computer Monitor Loop-Out No
RS-232 Communication Support RS-232C (8pin) x 1
Audio Speaker/Audio Out N/A
USB Mouse Support USB (Service use only)
Lamp
Estimated Lamp Life Rating 3000 hours (low mode)
Usage Replacement Lamp Replacement Lamp (VLT-HC910LP)
Physical
Weight 6.5 lbs.
Dimensions (W x H x D) 12.2" x 3.9" x 9.6"
Power Consumption 280W/2.9A
Power Requirements AC 100-240V, 50/60Hz
Service and Support
1-Years Limited Parts and Labor Warranty, 1-Year or 500 hours lamp warranty (whichever comes first)
Included Accessories
AC Power cable, RGB cable, RS-232C cable, Remote Control (with batteries), User Manual
