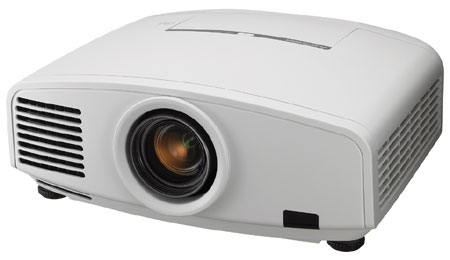

Mitsubishi XD1000U DLP Fixed Video Projector
Mitsubishi XD1000U MSRP: $5495
Overview
You get a choice of visual modes to customize your presentation settings with the new Mitsubishi XD1000U XGA DLP projector, featuring the most advanced color technology you can buy. This XGA projector is also bright enough for the biggest room at 3000 lumens and 2000:1 contrast ratio, and features a hushed 27dBA noise level and ProjectorView™ for remote management.
Large spaces are a specialty for this projector, such as auditoriums or churches. Use it as a computer projector, as a large conference room projector, or in lecture halls and other spaces with ambient light. Or place it in your biggest trade show booths or showrooms for eye catching displays. It features a cable cover than streamlines the look of your installation as well.
Features
- Native 1024 x 768 XGA Resolution
- 3000 ANSI Lumens
- 2000:1 contrast ratio
- Filter-free design keeps dust away
- HDTV Ready
- 4:3 Native Aspect Ratio
- DVI-D Input (HDCP)
- Cable Cover to hide those straggling cables and cords.
- RJ45 LAN Management Control
Specifications
| Display |
| Imaging Technology |
0.7", 1-Chip DMD, 12 deg. LVDS, Dark Chip 3™ with DDP3020 |
| Brightness/Lumens |
3000 ANSI Lumens |
| Native Resolution |
1024 x 768 |
| Maximum Resolution |
1280 x 1024 |
| Viewable Size |
40-300 inches diagonal |
| Contrast Ratio |
2000 : 1 (on/off) |
| Color Wheel |
5-segment (RGBWY) |
| Lens |
| Lens Throw Ratio |
1.69 - 2.26 |
| Zoom & Focus Adjustment |
Manual Focus and Zoom Lens |
| Compatibility |
| PC, MAC Compatibility |
Yes |
| Operation |
| Scanning Frequency |
[H] 15 - 100 kHz, [V] 50 - 95 Hz, [Dot Clock] max 140 MHz |
| Interface |
| NTSC, PAL, SECAM |
NTSC/NTSC 4.43/PAL (including PAL-M, N) / SECAM/PAL-60, Component Video; 480i/p (525i/p), 576i/p (625i/p), 720p (750p 50/60Hz), 1080i (1125i 60Hz), 1080i (1125i 50Hz) |
| Computer/Video Input Support |
RGB: Mini D-sub 15pin x 1, 5 BNC x 1, DVI-D (with HDCP) x 1
Audio: Stereo mini jack (ø 3.5mm) x 2
Video: RCA x 1 or BNC x 1, S-VIDEO x 1 or BNC (Y, C) x 1
Audio: RCA (LR) x 2 |
| Computer Monitor Loop-Out |
RGB: Mini D-sub 15pin x 1, Audio: Stereo mini jack (ø 3.5mm) x 1, DC OUT 5V 1.5A (Max) |
| RS-232 Communication Support |
RS-232C (D-sub 9pin) x 1 (Direct command is available) |
| Audio Speaker/Audio Out |
3 W Mono |
| USB Mouse Support |
USB (for mouse) x 1 |
| Lamp |
| Estimated Lamp Life Rating |
5000 hours (low mode) |
| Usage Replacement Lamp |
Replacement Lamp Bulb (VLT-XD2000LP) |
| Physical |
| Weight |
18.8 lbs. |
| Dimensions (W x H x D) |
16.9" x 6.5" x 12.9" |
| Power Consumption |
420W/4.2A |
| Power Requirements |
AC 100-240V, 50/60 Hz |
| Service and Support |
| 3-Years Limited Parts and Labor Warranty, 3-Years Express Replacement Assistance (ERA), 90-Days lamp warranty, 3-year or 10,000-hour on the TI-DLP® DMD Chip (Main imaging device) |
| Included Accessories |
| AC Power Cable, AV cable, RGB cable, USB cable, RS-232C cable, Remote Cable, Terminal Cover, Quick start manual, Remote Unit (incl. Battery), Quick Start Card, User Manual CD, Safety Manual |
|
