Mitsubishi XD490U DLP Micro Portable Video Projector

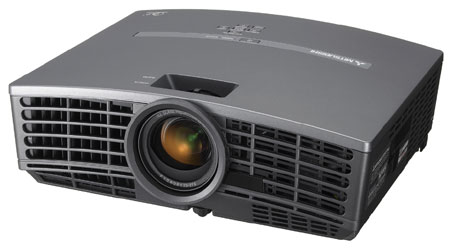

Mitsubishi XD490U Video Projector

Mitsubishi XD490U MSRP: $6495

Overview

For a stunning visual experience in a compact projector, the Mitsubishi XD490U XGA DLP® ultraportable projector features an amazing 2500:1 contrast ratio and an impressively bright 3000 ANSI lumens. That extra picture sharpness expands the range of applications for the XD490U.  For eye catching displays, use it in your trade show booth or showroom. Or use it as a conference room projector for large multipurpose rooms or small meeting rooms. Conference room projectors require portability and flexibility it multiple spaces with ambient light. Its compact size means you can easily move it from room to room, or use it as a shared conference room projector among many locations. Digital keystone correction (horizontal and vertical) allows you to set up even in the most challenging presentation environments.

Video Projector or Data Projector, You’ll See Our Color Technology at Work
The Mitsubishi XD490U projector includes Texas Instruments’ DDP3020 TrueVision™ Image Processing with BrilliantColor™, as well Mitsubishi’s Color Enhancer™. BrilliantColor™ for DLP technology uses a new color-processing algorithm to move beyond standard 3-color processing to a 6-color process that more accurately captures the true color common in video and natural scenes. The technology enables a greater than 50% brightness increase in mid tone images for video projectors. Color Enhancer™ technology intelligently produces truer colors and smoother images for specific scene settings. From a fingertip control you can choose from a range of distinctive visual modes and customize your settings, whether you’re using the XD490U as a data or video projector.

Engineered for Flexibility and Long-Term Value
Flexible video and data projector connection options give you operation flexibility. When you use a blackboard, Smartboard or wall as your screen, you can use the vertical lens shift and wall screen features to resize and reposition your images, and compensate for any color on the wall. The filter-free design resists dust and dirt with no clogged filters to clean or change, reducing maintenance costs. Mitsubishi’s Express Replacement Assistance (ERA) and 3-year warranty programs, up to 5000 hours of lamp life, and a 1-year lamp warranty ensure long-term value.

Features

  • Brightness 3000 ANSI Lumens
  • Resolution 1024 x 768
  • Contrast Ratio 2500:1 (on/off)
  • Weighs 6.5 lbs
  • 4:3 Native Aspect Ratio
  • Up to 5000 hours of lamp life
  • Wall screen support
  • Filter-free design keeps dust away
  • Digital Keystone Correction (Horizontal and Vertical)

Specifications

Display
Imaging Technology 0.7", 1-Chip DMD, 12 deg. LVDS, Dark Chip 3™ with DDP3020
Brightness/Lumens 3000 ANSI Lumens
Native Resolution 1024 x 768
Maximum Resolution 1280 x 1024
Viewable Size 40-300 inches diagonal
Contrast Ratio 2500:1 (on/off)
Color Wheel 5-segment (RGBWY)
Lens
Lens Throw Ratio 1.63 - 1.97
Zoom & Focus Adjustment Manual Focus & Zoom Lens
Compatibility
PC, MAC Compatibility Yes
Operation
Scanning Frequency [H] 15 - 100 kHz, [V] 50 - 95 Hz, [Dot Clock] max 140 MHz
Interface
NTSC, PAL, SECAM NTSC/NTSC 4.43/PAL (including PAL-M, N) / SECAM/PAL-60, Component Video; 480i/p (525i/p), 576i/p (625i/p), 720p (750p 50/60Hz), 1080i (1125i 60Hz), 1080i (1125i 50Hz), 1080i (1250i 50Hz)
Computer/Video Input Support RCA x 1 + S-VIDEO x 1, Mini D-sub 15pin x 2, DVI-D (with HDCP) x 1, Audio Stereo Mini Jack (ø 3.5mm) x 1, RCA (LR) x 2
Computer Monitor Loop-Out Yes
RS-232 Communication Support RS-232C (8pin) x 1 (Direct command is available)
Audio Speaker/Audio Out 2W Mono
USB Mouse Support USB (for mouse) x 1
Lamp
Estimated Lamp Life Rating 5000 hours (low mode)
Usage Replacement Lamp Replacement Lamp Bulb (VLT-XD400LP)
Physical
Weight 6.5 lbs.
Dimensions (W x H x D) 12.2" x 3.9" x 9.6"
Power Consumption 340W/3.5A
Power Requirements AC 100-240V. 50/60 Hz
Service and Support
3-Years Limited Parts and Labor Warranty, 3-Years Express Replacement Assistance (ERA), 1-Year lamp warranty, 3-year or 10,000-hour on the TI-DLP® DMD Chip (Main imaging device)
Included Accessories
RS-232C cable, Remote Unit (incl. Battery), Soft Carrying Case, Quick start manual, Quick Start Card, User Manual CD, Safety Manual, AC Power Cable, AV cable, RGB cable, USB cable
