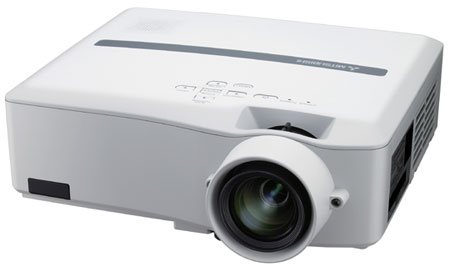

Mitsubishi XL1550U 3LCD Ultra Portable Video Projector
Mitsubishi XL1550U MSRP: $4995
Overview
The Mitsubishi XL1550U XGA projector is an affordable option that can maximize your viewing experience when you want a Mitsubishi quality projectorbut don’t need all the brightness of the XL2550U. It brings you 3100 lumens of brightness, an ultra-quiet 22dBA noise level*, amazing long 5000hrs lamp life* and offers optional lenses that enables you to project in just about any room configuration. The color range and clarity of this LCD projector will engage your audience in business, government, house of worship, or classroom projector applications.
What More Could You Want in a Quality Projector for Installation?
The XL1550U is the newest addition to our LCD projector line and offers various optional lenses (short-throw, long-throw, telezoom). With these optional lenses to choose from, you will have the flexibility to install the XL1550U in multiple room configurations. Additionally your audience will be able to enjoy the amazing picture quality of this LCD projector, since it operates at an ultra-hushed 22dba noise level*.
More Color for Great Computer and Video Projection
To sustain our leadership within the expanding LCD projector market, sRGB (Standard Red, Green and Blue) technology was developed to ensure uniform reproduction of color coordinates regardless of the display device to deliver more color and clarity. Our sRGB Mode matches hue variations in the color spectrum accurately so that colors are reproduced exactly as they appear in real life.
Easy Networking and Low Cost of Ownership
This ultraportable projector is equipped with an amazing 5000hrs lamp life* and a convenient side loading lamp design that makes any necessary lamp replacements quick and easy. It also includes network connectivity via a RJ-45 LAN connection for remote management and diagnostic. Another great feature is an amazing 3 year warranty Mitsubishi’s exclusive 3 year ERA program.
Features
- Native Resolution 1024 x 768
- Brightness/Lumens 3100 ANSI Lumens
- Contrast Ratio 600 : 1 (on/off)
- 4:3 Native Aspect Ratio
- DVI-D Input (HDCP)
- Side lamp replacement
- sRGB Support
- Anti-theft security hook
- Hushed Fan Noise at 22dBA
- Up to 5000 hours of lamp life
Specifications
| Display |
| Imaging Technology |
0.8" 3-LCD (with micro lens) |
| Brightness/Lumens |
3100 ANSI Lumens |
| Native Resolution |
1024 x 768 |
| Maximum Resolution |
1024 x 768 |
| Viewable Size |
40-300 inches diagonal |
| Contrast Ratio |
400 : 1 (on/off) |
| Color Wheel |
N/A |
| Lens |
| Lens Throw Ratio |
1.77 - 2.26 |
| Zoom & Focus Adjustment |
Manual Focus & Zoom Lens (Zoom Ratio 1.27:1) |
| Compatibility |
| PC, MAC Compatibility |
Yes |
| Operation |
| Scanning Frequency |
[H] 15 - 100 kHz, [V] 50 - 120 Hz, [Dot Clock] max 140 MHz |
| Interface |
| NTSC, PAL, SECAM |
NTSC/NTSC 4.43/PAL(including PAL-M, N)/SECAM/PAL-60 Component Video: 480i/p(525i/p), 576i/p(625i/p), 720p(750p 50/60Hz), 1080i(1125i 50/60Hz), SCART(RGB+1V sync) |
| Computer/Video Input Support |
PC: Mini D-Sub 15pin x 2; DVI-D(with HDCP) x 1; PC Audio: stereo mini jack(ø3.5mm) x 2; Video: RCA x 1, S-Video x 1; Audio: RCA(L,R) x 2 |
| Computer Monitor Loop-Out |
Yes |
| RS-232 Communication Support |
LAN (RJ-45) x 1, RS-232C (D-Sub 9pin) x 1 (Direct Command), USB terminal available for mouse cursor control |
| Audio Speaker/Audio Out |
3 W Mono |
| USB Mouse Support |
Yes |
| Lamp |
| Estimated Lamp Life Rating |
5000 hours (low mode) |
| Usage Replacement Lamp |
Replacement Lamp Bulb (VLT-XL550LP) |
| Physical |
| Weight |
10.4 lbs. |
| Dimensions (W x H x D) |
13.1" x 4.4" x 10.7" |
| Power Consumption |
200W/160W (low mode) |
| Power Requirements |
AC 100-240V, 50/60Hz |
| Service and Support |
| 3-Years Limited Parts and Labor Warranty |
| Included Accessories |
| AC Power Cable: 2.9m ( USA type x1 / EUR continetal type x1), AV cable 1.5m (3 wires), RGB cable: 1.8m, USB cable 1.8m (for Mouse), RS-232C cable 1.8m, Remote Unit ( incl. Battery), Soft Carrying Case, User Manual CD (Eng/Fre/Ger/Ita/Spa/Chi/Port),Safety Manual (incl. explanation for Quick Start) |
|
