Mitsubishi XL2550U 3LCD Ultra Portable Video Projector

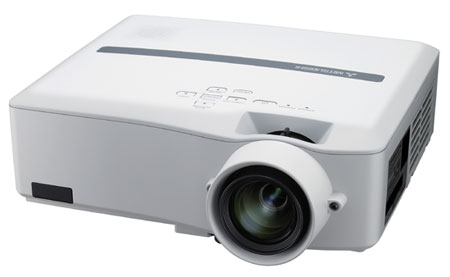

Mitsubishi XL2550U Video Projector

Mitsubishi XL2550U MSRP: $5995

Overview

The Mitsubishi XL2550U XGA Projector is a very versatile projector that is ideal for many types of projector needs. With its ultra bright 4000 lumen rating, it is very capable of engaging your audience attention even in environments with ambient lighting.  Additionally it also includes support for an optional short, long and tele-zoom lenses to give the flexibility to project in any just about any room configuration.

The Latest in Bright Projector Technology
The Mitsubishi XL2550U model is equipped with newly developed BrightEra™ LCD panels. The panels include inorganic orientation film and vertical luqid crystal to bring improvements in reliability of light resistance. What’s more, our new drive system (double-speed field inversion drive) solves nagging liquid crystal orientation distortion caused by pixel line voltage gaps. The result is a high pixel apture ratio, which increases light efficiency to a whole new level.

More Color For Great Computer and Video Projections
Mitsubishi sRGB (Standard Red, Green and Blue) technology was developed to ensure uniform reproduction of color coordinates regardless of the display device. Our sRGB Mode matches hue variations in the color spectrum accurately so that colors are reproduced exactly as they appear in real life.

What More Could You Want?
A bright projector, with the right lens, remote networking support, ease of use and low cost of ownership. The XL2550 proejctor is equipped with the latest LCD panel technology, supports optional lenses for flexible room configurations, as well as remote networking and management support via RJ-45 and RS-232 connections.  It can also be easily ceiling mounted, or easily portable since it is lightweight and could be used directly off a table top.  It is also includes an anti-theft hook for security measures.  Also is designed with a very convenient side loading lamp design, a lamp life of up to 4000 hours (low mode) and operates at a whisper quiet 29dba (low mode).  We say "whisper quiet" because whispering voices register at 30-40 dBA. Additionally it comes with a 3 year parts and labor warranty and Mitsubishi exclusive ERA warranty program.

Features

  • Native Resolution 1024 x 768
  • Brightness/Lumens 4000 ANSI Lumens
  • Contrast Ratio 600 : 1 (on/off)
  • 4:3 Native Aspect Ratio
  • DVI-D Input (HDCP)
  • Side lamp replacement
  • sRGB Support
  • Anti-theft security hook
  • New BrightEra technology
  • Up to 4000 hours of lamp life

Specifications

Display
Imaging Technology 0.8" 3-LCD (with micro lens)
Brightness/Lumens 4000 ANSI Lumens
Native Resolution 1024 x 768
Maximum Resolution 1024 x 768
Viewable Size 40-300 inches diagonal
Contrast Ratio 600 : 1 (on/off)
Color Wheel N/A
Lens
Lens Throw Ratio 1.77 - 2.26
Zoom & Focus Adjustment Manual Focus & Zoom Lens (Zoom Ratio 1.27:1)
Compatibility
PC, MAC Compatibility Yes
Operation
Scanning Frequency [H] 15 - 100 kHz, [V] 50 - 120 Hz, [Dot Clock] max 140 MHz
Interface
NTSC, PAL, SECAM NTSC/NTSC 4.43/PAL(including PAL-M, N)/SECAM/PAL-60 Component Video: 480i/p(525i/p), 576i/p(625i/p), 720p(750p 50/60Hz), 1080i(1125i 50/60Hz), SCART(RGB+1V sync)
Computer/Video Input Support PC: Mini D-Sub 15pin x 2; DVI-D(with HDCP) x 1; PC Audio: stereo mini jack(ø3.5mm) x 2; Video: RCA x 1, S-Video x 1; Audio: RCA(L,R) x 2
Computer Monitor Loop-Out Yes
RS-232 Communication Support LAN (RJ-45) x 1, RS-232C (D-Sub 9pin) x 1 (Direct Command), USB terminal available for mouse cursor control
Audio Speaker/Audio Out 3 W Mono
USB Mouse Support Yes
Lamp
Estimated Lamp Life Rating 4000 hours (low mode)
Usage Replacement Lamp Replacement Lamp Bulb (VLT-XL650LP)
Physical
Weight 10.4 lbs.
Dimensions (W x H x D) 13.1" x 4.4" x 10.7"
Power Consumption 261W/200W (low mode)
Power Requirements AC 100-240V, 50/60Hz
Service and Support
3-Years Limited Parts and Labor Warranty
Included Accessories
AC Power Cable: 2.9m (USA type x1 / EUR continetal type x1), AV cable 1.5m (3 wires), RGB cable (1.8m), USB cable 1.8m (for Mouse), RS-232C cable 1.8m, Remote Unit ( incl. Battery), Soft Carrying Case, User Manual CD (Eng/Fre/Ger/Ita/Spa/Chi/Port Safety Manual, incl. explanation for Quick Start)
