Mitsubishi XL550U Micro Portable 3LCD Video Projector

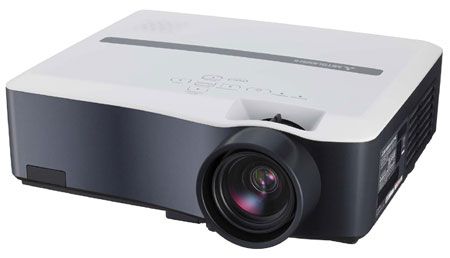

Mitsubishi XL550U Video Projector

Mitsubishi XL550U MSRP: $4995

Overview

The Mitsubishi XL550U is a native XGA LCD projector that produces a stunning visual experience with its bright 3100 ANSI lumens and sharp 400:1 contrast ratio. With an ultra-quiet noise level rating of 22dBA (low mode), you will be able to enjoy your viewing experience, instead of listening to unwanted noise. Also with its convenient side loading lamp design, lamp replacements are simplified without being required to turn the projector around or over if ceiling mounted.

Additionally, the XL550U comes with a long lamp life of up to 5000 hours (low mode), an anti-theft security hook for added security, and embedded software that enables administrators to remotely manage their projectors from their own PC systems.

Features

  • Native XGA Resolution (1024x768)
  • 3100 ANSI Lumens
  • 400:1 Contrast Ratio
  • Ultra-Quiet 22dBA Noise Level (low mode)
  • Convenient Side-Loading Lamp design
  • Up to a 5000 hours lamp life (low mode)
  • LAN Monitoring Utility

Specifications

Display
Imaging Technology 0.8" 3-LCD (with Micro Lens)
Brightness/Lumens 3100 ANSI Lumens
Native Resolution 1024 x 768
Maximum Resolution 1280 x 1024
Viewable Size 40-300 inches diagonal
Contrast Ratio 400:1 (on/off)
Color Wheel N/A
Lens
Lens Throw Ratio 1.47 - 1.77
Zoom & Focus Adjustment Manual Focus and Zoom
Compatibility
PC, MAC Compatibility Yes
Operation
Scanning Frequency [H] 15-100khz, [v] 50-120Hz, [Dot Clock] max. 140 MHz
Interface
NTSC, PAL, SECAM NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60; Component Video; 480i/p(525i/p), 576i/p(625i/p), 720p(750p 50/60Hz), 1080i(1125i 50/60Hz); SCART (RGB + 1V sync)
Computer/Video Input Support PC; Mini D-Sub 15pin x 2; DVI-D(with HDCP) x 1; PC Audio; Stereo mini jack (ø3.5mm) x 2; Video; RCA x 1 ,S-VIDEO x 1; Video Audio; RCA (L,R) x 2
Computer Monitor Loop-Out Yes
RS-232 Communication Support LAN(RJ-45) ; x 1 (Projector control);
RS-232C D-Sub 9pin x 1 (Direct command is available.)
Audio Speaker/Audio Out Stereo mini jack (ø3.5mm) x 1
USB Mouse Support USB ; for Mouse Cursor Control
Lamp
Estimated Lamp Life Rating 5000 hours (low mode)
Usage Replacement Lamp Replacement Lamp Bulb (VLT-HC550LP)
Physical
Weight 9.9 lbs.
Dimensions (W x H x D) 13.1” x 4.6” x 10.7”
Power Consumption 290W/2.9A
Power Requirements AC 100-240V, 50/60Hz
Service and Support
3-Years Limited Parts and Labor Warranty, 3-Years Express Replacement Assistance (ERA), and 90 days on lamp
Included Accessories
AC Power cable, AV Cable, RGB cable, USB Cable, RS-232C cable, Remote Unit (incl. battery), Soft Carrying Case, User Manual CD, Safety Manual
