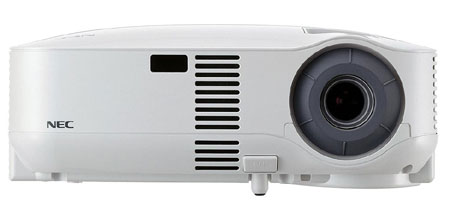

NEC VT491 3LCD Portable Video Projector

NEC VT491 MSRP: $699

Overview

The VT491 projector is bright enough for ambient light conditions and can be set up in a flash. With a host of unique technologies and enhanced connectivity, the VT491 makes your presentation experience easy.

Features

• 2000 ANSI Lumens
• 600:1 Contrast Ratio
• SVGA 800x600 native resolution
• Weight 6.4 lbs
• Quick start up lets you begin presenting in seconds
• Monitor out connects projector to external monitor
• 2 RGB inputs allow for greater flexibility
• Audio out enables connection to external speakers

Specifications

• Key Points Two computer inputs Variable audio out Monitor out
• Unique Features Short focal lens Optical zoom Advanced AccuBlend

Optical
• Display Technology 0.6" LCD
• Resolution Native SVGA 800 x 600
• Maximum UXGA 1600 x 1200
• Light Output (lumens) 2000 normal, 1600 eco
• Contrast Ratio 600:1
• Lamp Type 190W AC, 150 eco
• Lamp Life (up to) 2000 hours normal, 3000 hours eco
• Screen Size (diagonal) 21-300 in, .53-7.6 mm
• Throw Ratio 1.5 - 1.8
• Projection Distance 2.3 to 36.4 ft, .7 to 11.1m
• Projector Angle 8.3-8.6 degrees tele/9.9-10.3 degrees wide

Lens
• Zoom 1.0 to 1.2 (optical)
• Focus Manual
• F-number, f-number F=1.7 to 2.07 mm, f=18.9 to 22.7mm

Shift
• Keystone Correction Manual +/-30 degrees
• Signal Compatibility/Connectivity

Scan Rate
• Horizontal 15 to 100 kHz
• Vertical 50 to 120 Hz
• Supported Video Standards
• SD/HD Video Signal Compatibility
• PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA
• Macintosh Compatibility Yes

Input/Output Terminals
• RGB 1 (analog) 15 pin
• RGB 2 (analog) 15 pin
• RGB 3 (digital)
• Video 1 RCA
• Video 2 S-Video
• Video 3
• HD Video 1
• HD Video 2
• Audio L/R RCA
• Monitor out Yes
• Audio out Yes
• Audio 1 watt
• External Control RS232, IR
• Sync Compatibility Separate Sync/Composite Sync/Sync on G

Networking
• Electrical
• Power Req. 100 - 240VAC, 50/60Hz
• Input Current 3.1/1.3A
• Power Consumption 255W/205W

Mechanical
• Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
• Dimensions (WxDxH) 12.2x10.2x4.4 in, 309x258x112 mm
• Net Weight 6.4 lbs, 2.9 kg
• Fan Noise 34 dB normal/29 dB eco
• Regulations USA UL 1950 FCC Class B, Canada CSA950 (C-UL), NOM

Environmental
• Operational Temp. 41 degrees to 95 degrees F / 5 degrees to 40 degrees C
• Humidity 20-80% (non-condensing)
• Storage 14 degrees to 122 degrees F / -10 degrees to 50 degrees C
• Warranty Registered owners receive a 3-year limited warranty including InstaCare. Includes three year limited warranty on parts and one year limited warranty on labor. The lamp is covered for one year or 500 hours - whatever comes first. InstaCare provides the original owner one year of either limited 3 business day repair/return or next business day exchange.

Additional Features
• VORTEX Technology Plus Breakthrough image processing technology improves white level, color accuracy, dynamic range and varying levels of black in an image.
• Autosense Automatically syncs with any computer signal and features one touch image optimization.
• Automatic keystone correction Manual keystone correction via remote control or cabinet buttons
• Built-in Wall Color Correction Presets provide for adaptive color tone correction to display properly on non-white surfaces.
• Advanced AccuBlend Ensures detailed images when non-native resolution sources are connected to the projector.
• Kensington Lock Slot Enables security cable to be attached to projector.
• Image Magnification 64-step image magnification with location control
• Sleep Timer Count down timer can be set to automatically turn off the projector
• Eco-Mode Technology Extends lamp life, lowers audible noise and reduces total cost of ownership
• Discreet Source Keys
• Computer free presentations
• High speed wireless
• Direct Power Off

In the Box
• Carrying case, carrying handle for projector, remote control, batteries, power cord, RGB signal cable, lens cap, user's manual on CD-ROM, quick start guide, product registration card.
