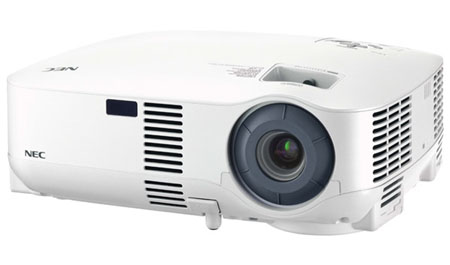

The bright, high resolution VT695 from NEC is the perfect choice for people who require the clearest images. Whether in a conference room or classroom, the NEC VT695 LCD video projector allows you to set up in a flash. The advanced features enable easy adjustments and image fine-tuning. With 2500 ANSI lumens brightness and a native 1024 x 768 XGA resolution. You can start projecting in 9 seconds with the VT695. This premium projector is full of power and features. You'll achieve high resolution images and superior brightness all in a portable chassis. The extensive connections allow you to hook up a multitude of sources.
| Key Points |
5 watt speaker
Dual computer inputs
Automatic keystone correction |
| Unique Features |
Variable audio out
DVI-I digital out
Digital to analog cable |
| Optical |
|
| Display Technology |
0.6" LCD |
| Resolution |
|
| Native |
XGA 1024 x 768 |
| Maximum |
UXGA 1600x1200 |
| Light Output (lumens) |
2500 normal, 1600 eco |
| Contrast Ratio |
600:1 |
| Lamp Type |
200W AC, 150 eco |
| Lamp Life (up to) |
2000 hours normal, 3000 hours eco |
| Screen Size (diagonal) |
21-300 in, .53-7.6 mm |
| Throw Ratio |
1.5 - 1.8 |
| Projection Distance |
2.3 to 36.4 ft, .7 to 11.1m |
| Projector Angle |
8.3-8.6° tele/9.9-10.3° wide |
| Lens |
|
| Zoom |
1.0 to 1.2 (optical) |
| Focus |
Manual |
| F-number, f-number |
F=1.7 to 2.07 mm, f=18.9 to 22.7mm |
| Shift |
|
| Keystone Correction |
Automatic or Manual +/-30° |
| Signal Compatibility/Connectivity |
|
| Scan Rate |
|
| Horizontal |
15 to 100 kHz |
| Vertical |
50 to 120 Hz |
| Supported Video Standards |
|
| SD/HD Video Signal Compatibility |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, SXGA+, UXGA |
| Macintosh Compatibility |
Yes |
| Input/Output Terminals |
|
| RGB 1 (analog) |
15 pin |
| RGB 2 (analog) |
DVI-I |
| RGB 3 (digital) |
|
| Video 1 |
RCA |
| Video 2 |
S-Video |
| Video 3 |
|
| HD Video 1 |
|
| HD Video 2 |
|
| Audio |
L/R RCA |
| Monitor out |
Yes |
| Audio out |
Variable audio out |
| Audio |
|
| External Control |
RS232, IR |
| Sync Compatibility |
Separate Sync/Composite Sync/Sync on G |
| Networking |
|
| Electrical |
|
| Power Req. |
100 - 240VAC, 50/60Hz |
| Input Current |
3.1/1.3A |
| Power Consumption |
270W/220W |
| Mechanical |
|
| Installation Orientation |
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
| Dimensions (WxDxH) |
12.2x10.2x4.4 in, 309x258x112 mm |
| Net Weight |
6.4 lbs, 2.9 kg |
| Fan Noise |
35 dB normal/29 dB eco |
| Regulations |
USA UL 1950 FCC Class B, Canada CSA950 (C-UL), NOM |
| Environmental |
|
| Operational Temp. |
41° to 95°F / 5° to 40°C |
| Humidity |
20-80% (non-condensing) |
| Storage |
14° to 122°F / -10° to 50°C |
| Warranty |
Registered owners receive a 3-year limited warranty including InstaCare. Includes three year limited warranty on parts and one year limited warranty on labor. The lamp is covered for one year or 500 hours - whatever comes first. InstaCare provides the original owner one year of either limited 3 business day repair/return or next business day exchange. |
| Additional Features |
|
| SquareShot |
|
| VORTEX Technology Plus |
Breakthrough image processing technology improves white level, color accuracy, dynamic range and varying levels of black in an image. |
| Autosense |
Automatically syncs with any computer signal and features one touch image optimization. |
| SweetVision II |
|
| 3D Reform |
|
| Automatic keystone correction |
Automatic or manual keystone correction |
| Built-in Wall Color Correction |
Presets provide for adaptive color tone correction to display properly on non-white surfaces. |
| Advanced AccuBlend |
Ensures detailed images when non-native resolution sources are connected to the projector. |
| Kensington Lock Slot |
Enables security cable to be attached to projector. |
| Image Magnification |
64-step image magnification with location control |
| Sleep Timer |
Count down timer can be set to automatically turn off the projector |
| Eco-Mode Technology |
Extends lamp life, lowers audible noise and reduces total cost of ownership |
| Discreet Source Keys |
|
| Computer free presentations |
|
| High speed wireless |
|
| Direct Power Off |
|
| In the Box |
Carrying case, carrying handle for projector, remote control, batteries, power cord, RGB signal cable, lens cap, user's manual on CD-ROM, quick start guide, product registration card |
