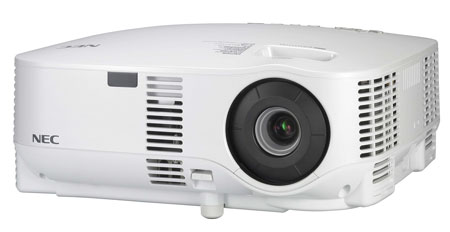

The NEC VT800 is a portable LCD video projector featuring high-resolution images and superior 2700 ANSI lumens brightness. This premium projector is full of power, boasts many advanced technologies and extensive connections that allow you to hook up a multitude of sources including HDMI, component video and VGA computer monitors. Also included is a built in RJ45 port for complete control over a network.
| Key Points |
RJ45 network connection, remote management and control, built-in closed caption decoder |
| Unique Features |
USB memory reader, 3D reform, HDMI input |
| Optical |
|
| Display Technology |
0.63" LCD |
| Resolution |
|
| Native |
XGA 1024 x 768 |
| Maximum |
UXGA 1600 x 1200 |
| Light Output (lumens) |
2700 normal, 2200 eco |
| Contrast Ratio |
500:1 |
| Lamp Type |
210W AC |
| Lamp Life (up to) |
2500 hours normal, 3500 hours eco |
| Screen Size (diagonal) |
21-300 in, .53-7.6m |
| Throw Ratio |
1.5 to 1.8 |
| Projection Distance |
2.3 to 35 ft. / 0.7 to 11m |
| Projector Angle |
8.3 to 8.6 degrees tele / 9.9 to 10.3 degrees wide |
| Lens |
|
| Zoom |
1.0 to 1.2 (optical) |
| Focus |
Manual |
| F-number, f-number |
F=1.7 to 2.07mm, f=18.9 to 22.7mm |
| Shift |
|
| Keystone Correction |
Automatic or manual +/- 30 degrees vertical, +/- 40 degrees horizontal |
| Signal Compatibility/Connectivity |
|
| Scan Rate |
|
| Horizontal |
15 to 108 kHz |
| Vertical |
48 to 120 Hz |
| Supported Video Standards |
NTSC, NTSC4.43, PAL, PAL-60, M, N, SECAM |
| SD/HD Video Signal Compatibility |
1080p, 1080i, 720p, 576p, 576i, 480p, 480i |
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, SXGA+, UXGA |
| Macintosh Compatibility |
Yes |
| Input/Output Terminals |
|
| RGB 1 (analog) |
15-pin |
| RGB 2 (analog) |
15-pin |
| RGB 3 (digital) |
|
| Video 1 |
RCA |
| Video 2 |
S-Video |
| Video 3 |
|
| HD Video 1 |
HDMI with HDCP |
| HD Video 2 |
|
| Audio |
(2) L/R RCA, (2) mini stereo |
| Monitor out |
Yes |
| Audio out |
Variable audio out |
| Audio |
5 watt built-in speaker |
| External Control |
RS232, IR |
| Sync Compatibility |
Separate Sync/Composite Sync/Sync on G |
| Networking |
Wired LAN using integrated RJ45 |
| Electrical |
|
| Power Req. |
100 - 240V AC, 50/60Hz |
| Input Current |
3.7A |
| Power Consumption |
310W normal, 260W eco |
| Mechanical |
|
| Installation Orientation |
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
| Dimensions (WxDxH) |
12.2 x 11.4 x 4.9 in / 310 x 289 x 125mm |
| Net Weight |
8.2 lbs / 3.7 kg |
| Fan Noise |
35dB normal, 29dB eco |
| Regulations |
USA UL 1950 FCC Class B, Canada CSA950 (C-UL), NOM |
| Environmental |
|
| Operational Temp. |
41 to 104 degrees F / 5 to 50 degrees C |
| Humidity |
20 to 80% non-condensing |
| Storage |
14 to 122 degrees F / -10 to 50 degrees C |
| Warranty |
Registered owners receive a 2-year limited parts and labor warranty including InstaCare. The lamp is covered for one year or 500 hours, whichever comes first. InstaCare provides the original owner one year of either 3 business day repair/return or next business day exchange. |
| Additional Features |
|
| SquareShot |
|
| VORTEX Technology Plus |
Provides improved uniformity, color, depth and detail for data and video images |
| Autosense |
Automatically syncs with any computer signal and features one-touch image optimization |
| SweetVision II |
|
| 3D Reform |
Allows you to square the image by adjusting horizontally, vertically or diagonally when the projector cannot be placed parallell or perpendicular to the screen. |
| Automatic keystone correction |
Automatically squares image when projector is set at angle to screen |
| Built-in Wall Color Correction |
Adaptive color tone correction to display accurate colors on non-white surfaces |
| Advanced AccuBlend |
Ensures detailed images when non-native resolution sources are connected to the projector |
| Kensington Lock Slot |
enable security cable to be attached to the projector |
| Image Magnification |
64-step image magnification with location control |
| Sleep Timer |
Timer can be set to automatically shut off the projector |
| Eco-Mode Technology |
Setting reduces power consumption, extends lamp life and reduces fan noise |
| Discreet Source Keys |
Provides one-touch source changes |
| Computer free presentations |
Built-in slot provides easy connection with USB memory devices |
| High speed wireless |
|
| Direct Power Off |
Projector can be instantaneously shut off using power strip or light switch |
| In the Box |
Remote control, batteries, power cord, RGB signal cable, lens cap, user's manual on CD-ROM, quick start guide, product registration card, wired network setup guide, carrying case |
