Optoma TX763 DLP Portable Series Video Projector

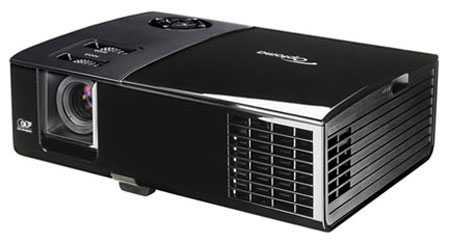

Optoma TX763 Video Projector

Optoma TX763 MSRP: ***

Overview

The Optoma TX763 DLP projector produces the brilliance in color, vividness and picture quality one needs in an outstanding presentation tool. The TX763 delivers 3500 lumens of brightness, extensive connectivity and the latest color processing technologies for images that redefine brilliant.

Features

  • Bright at 3500 lumens with a 2200:1 contrast ratio
  • Extensive connectivity options: Two VGA-In, DVI w/HDCP, composite video, S-video, RS-232, USB, VGA-Out, four audio-in and one audio-out
  • DLP® chipset to ensure images don’t fade or degrade over time
  • Latest color processing technologies for remarkable picture quality
  • Weighs 6.3 pounds and features a new top-loading lamp replacement form factor
  • Presentation-friendly remote control with laser pointer

Specifications

Display Technology 0.55” DDR DLP Technology by Texas Instruments
Resolution Native XGA (1024 x 768)
Maximum Resolution SXGA+ (1400 x 1050)
Brightness (Typical) 3500 Lumens
Contrast Ratio 2200:1 (Full On/Full Off)
Lamp Life and Type 2000/3000 Hours (STD/ECO)
260W
Throw Ratio 1.95-2.15:1 (Distance/Width)
Image Size (Diagonal) 34.59” to 304” (0.88 to 7.72m)
Remote Control Fully Featured Remote Control w/Mouse and Laser pointer
Projection Distance 3.9’ to 39.3’ (1.2 to 12 m)
Displayable Colors 16.7 Million
Audio One 2-Watt Speaker
User Controls Complete On Screen Menu Adjustments in 11 Languages
Computer Compatibility VGA, SVGA, XGA, SXGA+ Resized; PC and Macintosh Compatible
Video Compatibility NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i)
Uniformity 85%
Aspect Ratio 4:3 Native, 16:9 Compatible
Projection Lens F = 2.46~2.58, f = 21.79~23.99 mm,
1.10X Manual Zoom and Focus
Keystone Correction ± 15º Vertical
Horizontal Scan Rate 15 to 100 kHz
Vertical Refresh Rate 56 to 85 Hz
Monitor Loop Through D-Sub 15 VGA Output (Functional in Both Normal and Standby Modes)
I/O Connectors DVI-D w/HDCP, Two VGA-In, VGA-Out, S-Video, Composite Video, Four Audio-In, Audio-Out, USB, +12V Trigger, RS-232, +5V Trigger
Security One Kensington® Lock Port
Projection Method Front, Rear, Ceiling Mount, Table Top
Weight 6.3 lbs (2.9 kg)
Dimensions (W x H x D) 11.51” x 3.73” x 8.66” (295 x 95.7 x 222 mm)
Noise Level 35dB/30dB (STD/ECO)
Power Supply AC Input 100 - 240V, Auto-Switching
Power Consumption 360 Watts (Maximum), < 10 Watts (Standby)
Operating Temperature 41-95º F (5-35º C) (80% Humidity), Adjustable Fan Speed for High Altitude Application
Standard Accessories AC Power Cord, VGA to VGA Cable, Composite Video Cable, Lens Cap, Remote Control, Batteries for Remote, Carrying Case, Quick Start Guide, Warranty Card and User’s Manual
Optional Accessories Ceiling Mount, VGA to Component Cable, S-Video Cable, Audio-Out Adapter and GrayWolfII™ Series Screens
Warranty 3 Years Optoma Express Replacement Service, 1 Year on Lamp
