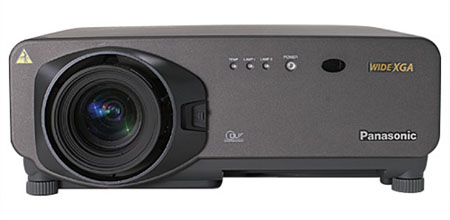

Panasonic PT-DW7000U Large Venue DLP Video Projector
Panasonic PT-DW7000U MSRP: $25,000
Overview
Featuring Texas Instruments Digital Light Processing and unique wide-aspect (1366 x 768) panels, the PT-DW7000U-K (Black cabinet) and PT-DW7000U (White cabinet) deliver outstanding 6000-lumen brightness and up to 4000:1 contrast ratio. Panasonic's Dynamic Iris improves contrast by precisely matching the lamp output to the input signal. The liquid-cooled optical engine boosts both reliability and durability, while greatly reducing operating noise.
Features
- 6000 ANSI lumens
- World's lightest 3-chip DLP projector at only 48.5 lbs.
- World's first 3-chip DLP projector with native 16:9 widescreen panels
- Outstanding contrast ratio up to 4000:1
- 1366 x 768 native resolution
- BrightOptic dual-lamp technology and lamp relay function
- Dynamic Iris and Dynamic Gamma provide 256-step precision, preserve brightness, and help maintain a wide dynamic range
Specifications
| Display |
| System |
DLP system |
| Device |
0.85˝ (diagonal) DMD™ (x 3), 16:9 |
| Pixels |
1,049,088 (1,366 x 768) x 3 |
| Lamp |
300 W UHM™ lamp x 2 (BriteOptic™ Dual Lamp System) |
| Brightness |
6000 lumens (dual lamp) |
|
3000 lumens (single lamp) |
| Contrast ratio |
4000:1 (full white/full black, with
hdynamic iris set to “3”) |
| Resolution |
| RGB |
1366 x 768 pixels |
| Video |
560 TV lines |
| Lens |
Optional |
| Screen size |
l70˝– 600˝ diagonal |
| RGB input scanning |
|
| frequency |
fH 15 –100 kHz, fV 24 –120 Hz, |
|
Dot clock 20–162 MHz |
| Component signal |
480i, 576i, 480p, 576p, 720/60p, 1035/60i, 1080/60i,1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p |
| Video signal |
NTSC, PAL, SECAM, M-NTSC, PAL60,
PAL-M, PAL-N |
| Terminals |
| VIDEO IN |
BNC |
| VIDEO OUT |
BNC |
| S-Video IN |
Mini DIN 4-pin |
| RGB1/YPBPR IN |
BNC x 5 |
| RGB2 IN |
D-sub HD 15-pin |
| Optional board slot |
x 1 |
| RS-232C/422 IN |
D-sub 9-pin female |
| RS-232C/422 OUT |
D-sub 9-pin male |
| REMOTE 1 IN |
M3 jack |
| REMOTE 1 OUT |
M3 jack |
| REMOTE 2 IN |
D-sub 9-pin female (parallel) |
|
|
| Optical axis shift |
Powered; horizontal ±30%, vertical
±65% |
| Keystone correction range |
±40° (with ET-D75LE2) |
| Chassis |
| Installation |
Front/rear, ceiling/floor, (menu selec-tion) |
| Power cord length |
2.5 m (8.2´) |
| Power supply |
100 – 120 V AC, 60 Hz |
| Power consumption |
800 W (800 VA) (12 W during standby
mode with fan stopped) |
| Dimensions (W x H x D) |
20-7/8˝ x 7-7/8˝ x 21-9/32˝ (530 x 200 x 540 mm) (without lens and lens hood) |
| Weight |
48.5 lbs/22.0 kg (without lens) |
| Operating temperature |
0°–40°C (32°–104°F) |
|
0°–35°C (32°–95°F) (dual lamp, lamp power: high) |
| Operating humidity |
10% –80% (no condensation) |
| Supplied accessories |
| Wireless/wired remote control unit |
| Batteries for remote control unit |
| Remote control cable |
|
