Panasonic PT-LB51NTU Micro Portable LCD Video Projector

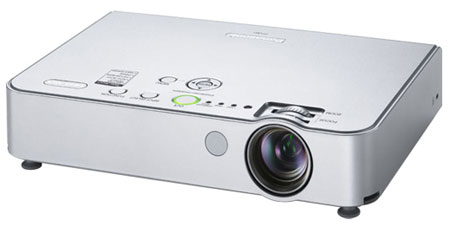

Panasonic PT-LB51NTU Video Projector

Panasonic PT-LB51NTU MSRP: $2100

Overview

The PT-LB51NTU projector uses Panasonic's original Daylight View 2 technology, which makes images easy to see the picture in even brightly lit rooms. A built-in sensor measures the ambient light, and the halftone color and brightness level are adjusted accordingly in real-time. The microportable PT-LB51NTU is also ultra-lightweight and compact, allowing you to travel with ease. Two second speed start allows you to be up, running and presenting in no time.

Also, this portable projector is 802.11b+g wireless network capable, making it even easier to use.

Features

  • Daylight View 2 Technology
  • 2000 Lumens
  • XGA Native, UXGA Compatible
  • Up to 400:1 Contrast Ratio
  • IEEE 802.11b+g wireless network capable with Wireless Manager ME 4.5 software
  • One-Touch "auto everything" set-up with Digital Keystone Correction
  • Quick Start (see images on-screen in less than 2 seconds)
  • Direct Power Off
  • Extra Short Throw Lens
  • Automatic Input Signal Detector
  • Index window
  • Input Auto Set-up
  • Anti-theft Features: Control Panel Lock / Password Protection /
    Text Superimposing / Kensington Lock
  • Quiet Operation (30dB in low power mode)
  • 4:3 Aspect Ratio Native (16:9 Capable)
  • sRGB Compatible
  • Up to 2000 hour Lamp Life
  • 2 x RGB inputs (one RGB input can be switched to RGB Out)
  • 3x Digital Zoom and Focus
  • Easy-to-use remote control
  • Built-in 1W Speaker
  • Variable audio out
  • Ceiling Mountable
  • Colour Temperature Selectable
  • Auto Power Off
  • HDTV Compatible
  • Three-year Limited Warranty

Specifications

LCD Panel
- Panel size 0.6” (15.24 mm) diagonal, micro lens array (4:3 aspect ratio)
- Display method Transparent LCD panel (x 3, R/G/B)
- Drive method Active matrix
- Pixels 786,432 (1,024 x 768) x 3, total of 2,359,296 pixels
- Pixel configuration Stripe
Optical system Dichroic mirror separation/prism synthesis system
Lens Manual zoom (1:1-1:1.2), manual focus F1.6-1.9, f 18.8-22.6 mm
Lamp 165 W UHM™ lamp
Colours Full colour (16,777,216 colours)
Brightness 2,000 lumens
Center-to-corner uniformity ratio 85%
Contrast ratio 400:11 (full on/full off)
Scanning Frequency
- RGB Horizontal: 15-91 kHz, Vertical: 50-85 Hz
- YPBPR 480i (525i): fH 15.75 kHz; fV 60 Hz
576i (625i): fH 15.63 kHz; fV 50 Hz
480p (525p): fH 31.5 kHz; fV 60 Hz
576p (625p): fH 31.25 kHz; fV 50 Hz
720p/60p (750p): fH 45 kHz; fV 60 Hz
1080i/60i (1125i): fH 33.75 kHz; fV 60 Hz
1080i/50i (1125i): fH 28.125 kHz; fV 50 Hz
- S-Video / Video NTSC, NTSC4.43, PAL-M, PAL60: fH 15.75 kHz; fV 60 Hz
PAL, SECAM, PAL-N: fH 15.63 kHz; fV 50 Hz
Projection size 838-7,620 mm (33-300 inches) diagonally, 4:3 aspect ratio
Throw distance 1.1 m-11.1 m (3’7” – 36’5”)
Optical axis shift 6:1 (fixed)
Keystone correction range Vertical: approx. ±30°
On-screen menu 17 languages: English, French, German, Spanish, Italian, Korean, Russian, Chinese, Japanese, Swedish, Norwegian, Danish, Portuguese, Polish, Hungarian, Czech, and Thai
Installation Front/rear, ceiling/desk (menu selection)
Built-in Speakers Size: 4 x 2 cm (x1), oval
Output power: 1.0W (monaural)
Terminals
PC 1 IN (RGB 1 IN) D-sub HD 15-pin x 1
- RGB signal R, G, B: 0.7 Vp-p, 75 ohms, Sync on green: 1.0 Vp-p, 75 ohms,
HD/SYNC, VD: TTL (positive/negative polarity compatible)
- YPBPR signal Y: 1.0 Vp-p (including sync signal), 75 ohms, PB, PR: 0.7 Vp-p, 75 ohms
PC 2 IN/PC 1 OUT (RGB 2 IN/RGB 1 OUT) D-sub HD 15-pin x 1 (input/output selectable using on-screen menu)
- RGB signal R, G, B: 0.7 Vp-p, 75 ohms, Sync on green: 1.0 Vp-p, 75 ohms,
HD/SYNC, VD: TTL (positive/negative polarity compatible)
- YPBPR signal Y: 1.0 Vp-p (including sync signal), 75 ohms, PB, PR: 0.7 Vp-p, 75 ohms
VIDEO IN RCA pin x 1, 1.0 Vp-p, 75 ohms
S-VIDEO IN Mini DIN 4-pin x 1, Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms
PC AUDIO IN M3 (L, R) x 1, 0.5 V [rms], for PC 1 (RGB 1) and PC 2 (RGB 2)
AUDIO IN RCA (L, R) x 1, 0.5 V [rms], for VIDEO and S-VIDEO
AUDIO OUT M3 (L, R) x 1, 0-2.0 V [rms] (variable)
SERIAL Mini DIN 8-pin x 1, for external control (RS-232C)
Wireless Capacity
Wireless LAN Standard IEEE 802.11b/g (ARIB STD-T66)
Modulation IEEE 802.11b Direct sequence spread spectrum (DS-SS) system
IEEE 802.11g Orthogonal frequency division multiplex (OFDM) system
Transmission system IEEE 802.11b CCK (11/5.5 Mbps), DQPSK (2 Mbps), DBPSK (1 Mbps)
IEEE 802.11g 64-QAM (54/48 Mbps), 16-QAM (36/24 Mbps), QPSK (18/12 Mbps), BPSK (9/6 Mbps)
Transmission speed IEEE 802.11b 11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps
IEEE 802.11g 54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps, 6 Mbps
Operating range3 Approx. 30 m
Frequency range PT-LB51NTE/LB51NTEA: 2,412 MHz-2,472 MHz
PT-LB51NTU: 2,412 MHz-2,462 MHz
Channels PT-LB51NTE/LB51NTEA: 1-13 ch
PT-LB51NTU: 1-11 ch
General
Power supply 100-240 V AC, 50/60 Hz
Power consumption 240 W (approx. 4 W in standby mode with fan stopped)
Temperature 0° - 40°C
Humidity 20% - 80% (no condensation)
Dimensions (W x H x D)2 297 x 57 x 210 mm
Weight 1.9 kg
Power cord length 2 m
Cabinet material Moulded plastic (ABS/PC)
Remote control unit
Power supply 3V DC (AAA battery x 2)
Operation range3 Approx. 15 m when operated from directly in front of the signal receptor
Dimensions (W x H x D) 48 x 163 x 24.5 mm
Weight 117 g (including batteries)
