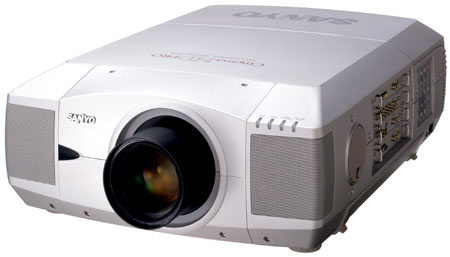

Sanyo PLC-UF15 Large Fixed 3LCD Video Projector
Sanyo PLC-UF15 MSRP: $49,995
Overview
REALISTIC COLOR REPRODUCTION
The Sanyo PLC-UF15 projectorutilizes a newly developed 6500°K color
temperature optical system for more realistic color reproduction.
This color-focused design is suitable for digital cinema
applications.
INCREDIBLY BRIGHT 7700 ANSI LUMENS
Utilizing four high-output 250 watt UHP lamps as its light source,
the PLC-UF15 delivers an incredible 7700 ANSI lumens of
brightness.
OUTSTANDING CONTRAST RATIO – 1000:1
Through its new high-contrast optical system the Sanyo PLC-UF15 projector is
able to achieve an outstanding contrast ratio of 1000:1.
SANYO’s NEW PROGRESSIVE IC
A newly developed progressive integrated circuit provides highly
improved playback of moving images. 1080 interlaced signals
are converted into progressive signals while 2-3 pulldown
doubles the resolution of images from DVD playback.
NETWORK CONTROL/ADMINISTRATION
An optional network board allows for simple control and
management of the projector via a CAT5 network connection.
The network board, which can memorize and store up to 55 PC
modes, can also be used in parallel with RS-232 controllers.
REAL COLOR MANAGER
The Real Color Manager System provides white balance
adjustment and gamma correction from a PC using the included
image adjustment software by simply comparing the on-screen
image to a printed color chart.
NEW ONE-TOUCH LENS REPLACEMENT
Attaching the included One-Touch lens mount adapters to your
projector and lenses makes installation and removal or our
optional lenses quick and easy.
Features
- 7700 ANSI Lumens (Typical)
- True UXGA (1600 x 1200) Resolution
- 1000:1 Contrast Ratio
- 81.6 lbs., 22.9" x 9.9" x 30.8" (W x H x D)
- Four x 250 Watt UHP Lamp System
- Digital Visual Interface (DVI)
- Efficient Lamp Management System
- New High Definition Progressive Scan
- Digital Keystone Correction
- Power Lens Shift (Up/Down/Left/Right)
- Power Zoom/Power Focus
- Superior HDTV Image Performance
- RS-232C In/Out
- A Variety of Lens Options Available
- Lenses Sold Separately
Specifications
| Resolution |
UXGA (1600 x 1200) |
| Brightness (typical) |
7700 ANSI Lumens (4-lamp mode)
3850 ANSI Lumens (2-lamp mode) |
| Uniformity |
90% (corner to corner) |
| LCD Panel System |
1.8” TFT polysilicon type w/micro lens x 3 |
| Number of Pixels |
5,760,000 (1,920,000 x 3) |
| Contrast Ratio |
1,000:1 (Full on/off) |
| Projection Lens |
Lens Sold Separately |
| Image Size |
Dependent on Lens |
| Aspect Ratio |
4:3 |
| Throw Distance |
Dependent on Lens |
| Zoom/Focus |
Dependent on Lens |
| Throw Ratio |
Dependent on Lens |
| Zoom Ratio |
Dependent on Lens |
| Power Lens Shift |
Up/Down Ratio 10:0 – 0:10 or 8:1 – 1:8
Left/Right Ratio 7:3 – 3:7 |
| Digital Keystone Correction |
+/- 40° |
| Projection Lamp |
250W UHP x 4 |
| Scanning Frequency |
H Sync: 15-120kHz, V Sync: 50-120Hz |
| Dot Clock |
230 MHz |
| Color System |
PAL/PAL-M/PAL-N/SECAM/NTSC/NTSC4.43 |
| Computer Compatibility |
UXGA, SXGA, XGA, SVGA, VGA, MAC |
| Voltage |
120-240V AC 50/60 Hz (auto sense/select) |
| BTU Rating |
5118 |
| dB Rating |
46.0 |
| Power Consumption |
1500W |
| Dimensions (WxHxD) |
22.9”x9.9”x30.8” |
| Net Weight |
81.6 lbs. |
| User Maintenance |
Clean air filters, replace lamp assembly |
Detachable Input Panels
POA-MD11DVI |
Digital Visual Interface (DVI-I) • Left & Right Audio
(RCA x 2) • Control (Min DIN 8-pin) |
| POA-MD16VD1 |
RGB & Component (5-BNC) • Left & Right Audio
(RCA x 2) • Control (Min DIN 8-pin) |
| POA-MD03VD2A |
Composite & Y/C (2-BNC) • S-Video
• Left & Right Audio (RCA x 2) |
| POA-MD04VGA |
VGA (D-Sub 15) • Left & Right Audio (RCA x 2)
• Control (Min DIN 8-pin) |
| Fixed Input/Output Panel |
Serial in & Serial out (D-Sub 9 x 2) • Audio out (RCA x 2)
• USB (type B) • Wired RC jack (Stereo mini) |
| Included Accessories |
Wired/Wireless I/R Remote Control with Mouse Pad and
Laser Pointer • AC power cord x 3 • VGA and DVI Cable
• Wired remote cable • Real Color Manager CD-ROM
• Lens Mount Adapters (POA-LNA02 & POA-LNA01)
• PS/2, Serial, MAC Control cables • Light Block Sheets
• Dust cover • MAC/VGA and DVI/VGA Adapters
• Owner’s manual |
| Optional Accessories |
POA-MD08HD - HD-SDI Input Board
POA-MD09VD3 - Faroudja™ Input Board
POA-MD13NET - Network Board
POA-LNA02 - Lens Mount Adapter
(for LNS-W02, W02KS, M01, S01 lenses)
POA-LNA01 - Lens Mount Adapter (for all other lenses)
PLCCSE14 - Hard Shipping Case |
| Warranty |
Three years parts and labor; 90 days original lamp;
Quick Repair Program under warranty |
|
