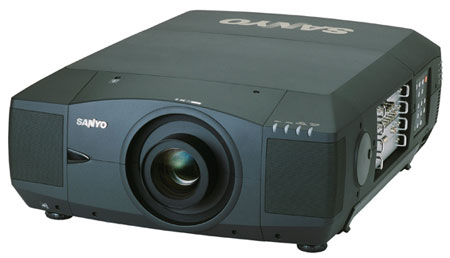

Sanyo PLC-XF42 Large Fixed 3LCD Video Projector
Sanyo PLC-XF42 MSRP: $21,995
Overview
INCREDIBLY BRIGHT 9000 ANSI LUMENS
Utilizing four high-output 250 watt UHP lamps as its light
source, the Sanyo PLC-XF42 projector delivers an incredible 9000 ANSI
lumens of brightness.
OUTSTANDING CONTRAST RATIO – 1,100:1
Through its new high-contrast optical system, the PLC-XF42 projector is
able to achieve an outstanding contrast ratio of 1,100:1. A 10-
bit digital gamma correction circuit is employed to effectively
suppress overwhelming whites in bright images and excessive
blacks in dark images.
NETWORK CONTROL/ADMINISTRATION
An optional network board allows for simple control and
management of the projector via a CAT5 network connection.
The network board, which can memorize and store up to 55 PC
modes, can also be used in parallel with RS-232 controllers.
REAL COLOR MANAGER PRO
The Real Color Manager PRO System provides color
correction and gamma correction from a PC using the included
image adjustment software.
NEW ONE-TOUCH LENS REPLACEMENT
Attaching the included One-Touch lens mount adapters to your
projector and lenses makes installation and removal of our
optional lenses quick and easy.
24/7* OPERATION
A newly developed liquid crystal panel with an optical compensator that creates linear polarization, together with
improved optical block cooling system, gives the Sanyo PLC-XF42 projector the
capability of being operated on a 24/7* basis.
Features
- Incredibly Bright 9000 ANSI Lumens
- True XGA (1024 x 768) Resolution
- 1,100:1 Contrast Ratio with New High-Contrast Optical System
- Optional Network Board/Memorizes and Stores up to 55 PC Modes
- Real Color Manager Pro System Provides Color Correction and Gamma Correction
- One-touch Lens Replacement for Easy Installation and Removal
- Newly Developed Liquid Crystal Panel with an Optical Compensator for Creating Linear Polarization
- A Variety of Lens Options Available
- Lenses Sold Seperately
Specifications
| Resolution |
XGA (1024 x 768) |
| Brightness (typical) |
9000 ANSI Lumens (4-Lamp mode)
4500 ANSI Lumens (2-Lamp mode) |
| Uniformity |
90% (corner to corner) |
| LCD Panel System |
1.8” TFT polysilicon type w/micro lens x 3 |
| Number of Pixels |
2,359,296 (786,432 x 3) |
| Contrast Ratio |
1,100:1 (Full on/off) |
| Projection Lens |
Lens Sold Separately |
| Image Size |
Dependent on Lens |
| Aspect Ratio |
4:3 |
| Throw Distance |
Dependent on Lens |
| Zoom/Focus |
Dependent on Lens |
| Throw Ratio |
Dependent on Lens |
| Zoom Ratio |
Dependent on Lens |
| Power Lens Shift |
Up/Down Ratio 10:0 – 0:10 or 8:1 – 1:8
Left/Right Ratio 3:2 – 2:3 |
| Digital Keystone Correction |
+/- 40° (Vertical) |
| Projection Lamp |
250W UHP x 4 |
| Scanning Frequency |
H Sync: 15-120kHz, V Sync: 50-120Hz |
| Dot Clock |
230 MHz |
| Color System |
PAL/PAL-M/PAL-N/SECAM/NTSC/NTSC4.43 |
| Computer Compatibility |
UXGA, SXGA+, SXGA, WXGA, XGA, SVGA, VGA, MAC |
| Voltage |
120V, 200-240V AC; 50/60/Hz (auto sense/select) |
| BTU Rating |
5118 |
| dB Rating |
51.0 |
| Power Consumption |
1500W |
| Dimensions (WxHxD) |
22.9”x9.9”x32.0” (not including Adjustable Feet) |
| Net Weight |
80.5 lbs |
| User Maintenance |
Clean air filters, replace lamp assembly |
Detachable Input Panels
POA-MD18DVI |
Digital Visual Interface (DVI-I w/HDCP) • Left & Right
Audio (RCA x 2) • Control (Min DIN 8-pin) |
| POA-MD16VD1 |
RGB & Component (5-BNC) • Left & Right Audio (RCA x 2)
• Control (Min DIN 8-pin) |
| POA-MD04VGA |
VGA (D-Sub 15) • Left & Right Audio (RCA x 2)
• Control (Min DIN 8-pin) |
| Fixed Input/Output Panel |
Serial in/out (D-Sub 9 x 2) • Audio out (RCA x 2)
• USB (type B) • Wired RC jack (Stereo mini); |
| Included Accessories |
Wired/Wireless I/R Remote Control• 2 “AA” Batteries
• AC power cord • VGA Cables • Light Block Sheets
• Lens Mount Adapters (POA-LNA02 & POA-LNA01)
• Real Color Manager PRO CD-ROM
• Owner’s manual(CD-ROM and Quick Reference Guide) |
| Optional Accessories |
POA-MD03VD2A – Video Y,C and S-Video Board
POA-MD08HD - HD-SDI Input Panel
POA-MD13NET - Network Board
POA-MD15SDI - SD-SDI Board
POA-MD17SDID – HD-SDI & SD-SDI Input Board
POA-MD21WARP- Warp & Blending Board
POA-LNA02 - Lens Mount Adapter
(for LNS-W02, W02KS, M01, S01 lenses)
POA-LNA01 - Lens Mount Adapter (for all other lenses)
PLCCSE14 - Hard Shipping Case
6103000862 - Replacement Lamp |
| Warranty |
Three years parts and labor; 90 days original lamp;
Quick Repair Program under warranty |
|
